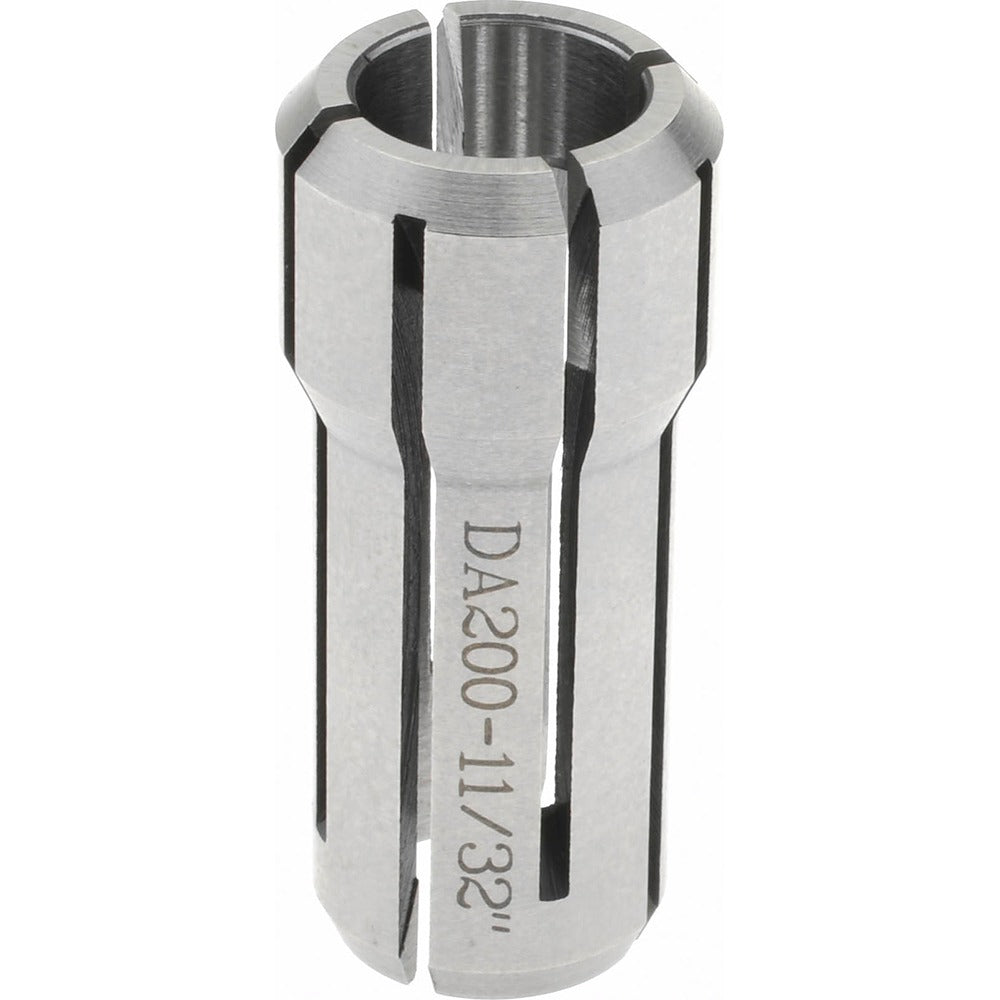

Accupro 586320 DA200 Double Angle Collet 11/32 Inch

Product Description

The ACCUPRO 586320 is a double angle collet in the DA200 series, designed for use in compatible DA-style collet chucks on CNC machining centers, mills, and routers. It accepts a 0.3438-inch (11/32 inch) tool shank and features a 1.193-inch overall length with a 0.539-inch overall diameter. The double angle design provides secure, concentric tool clamping, reducing runout and improving cut quality. This collet is installed by machinists and tool room technicians working with DA200-compatible toolholding systems. It is sold individually and weighs 0.5 pounds.

This collet is suited for light to medium-duty milling, drilling, and routing operations where a DA200 collet chuck is the toolholder of choice. The 11/32-inch bore accommodates standard shank tooling at that diameter. Applications include production machining environments, job shops, and maintenance machine tool setups requiring reliable tool retention in a DA200 chuck system.

Key Features

• DA200 collet series for use with DA200-compatible collet chucks
• 11/32 inch (0.3438 inch) bore size for standard shank tooling
• 1.193-inch overall length for proper seating in DA200 chucks
• 0.539-inch overall diameter
• Double angle design provides secure, concentric tool clamping
• Sold individually, no minimum order beyond single unit

Compatibility

Designed as a direct-fit replacement or addition for toolholding systems that accept DA200 series double angle collets.

Installation Notes

Installation is performed by a machinist or tool room technician. Ensure the collet chuck and spindle are fully de-energized and the machine is in a locked-out state before changing collets. Clean the collet chuck bore and collet taper surfaces before seating to prevent runout and premature wear. Use the appropriate collet nut wrench for the DA200 chuck to achieve proper clamping torque per the chuck manufacturer guidelines.
