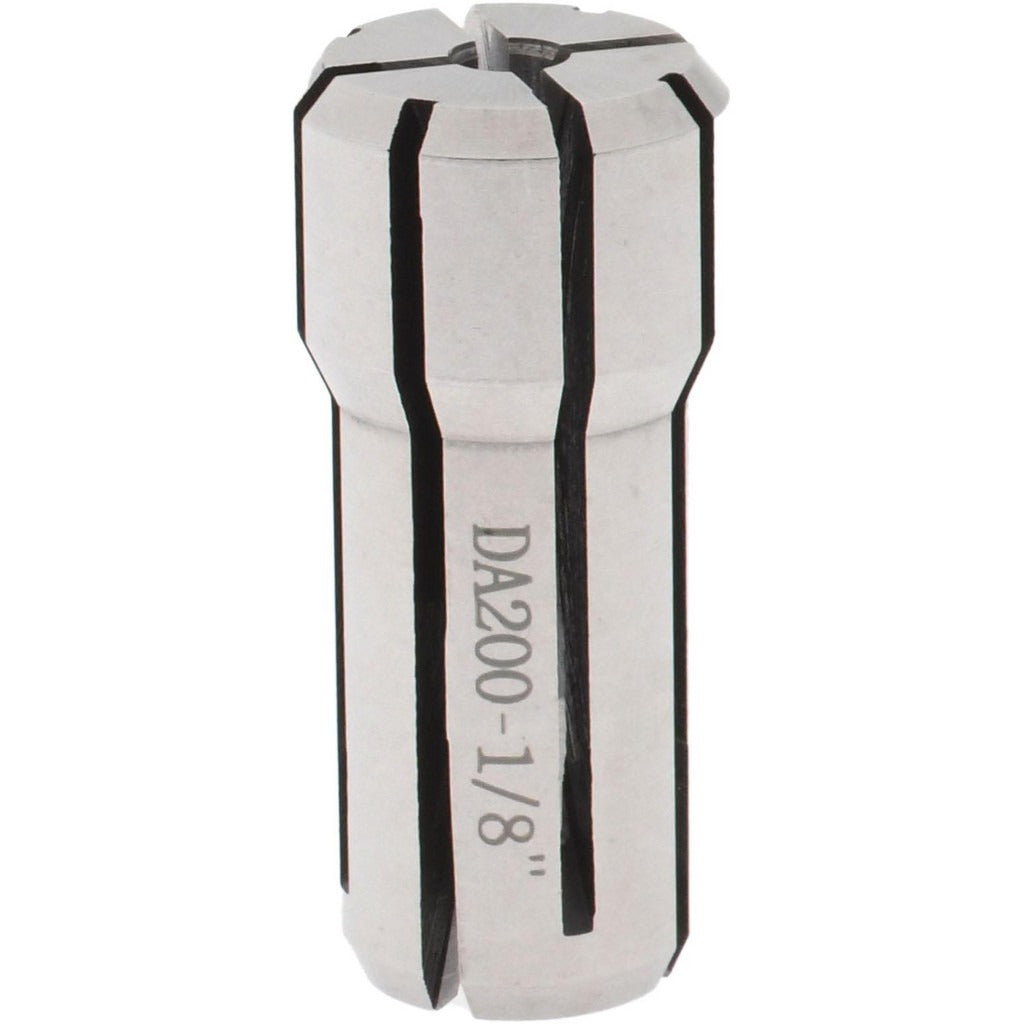

Accupro 586307 DA200 Double Angle Collet 1/8 Inch

Product Description

The ACCUPRO 586307 is a DA200 series double angle collet designed for use in CNC machining centers, milling machines, and high-speed routing applications. It accepts a 0.125 inch (1/8 inch) tool shank and provides a secure, concentric grip suited to precision cutting operations. With an overall length of 1.193 inches and an overall diameter of 0.539 inches, this collet fits standard DA200 collet chucks and toolholders. It is installed and replaced by machinists, tool-and-die makers, and CNC setup technicians working in production and job-shop environments.

This collet is appropriate for light to medium-duty milling, engraving, and routing operations where a 1/8 inch tool shank is required. The DA200 collet system is commonly found in vertical machining centers and router spindles used in both production shops and prototype environments. It is sold individually and is suited for facilities that replace collets on a per-size basis as part of standard tooling maintenance.

Key Features

• DA200 collet series for compatibility with DA200-style collet chucks and toolholders
• Accepts 1/8 inch (0.1250 inch) tool shank diameter
• Overall length of 1.193 inches for standard DA200 toolholder fitment
• Overall diameter of 0.539 inches
• Double angle collet design provides consistent clamping force and concentricity
• Sold as a single unit for flexible tooling inventory management

Compatibility

Designed as an OEM-style replacement collet for use with DA200 series collet chucks and compatible toolholders accepting the DA200 collet format.

Installation Notes

Collet installation and replacement should be performed by a qualified machinist or CNC technician. The spindle or toolholder must be fully de-energized and brought to a complete stop before removing or inserting any collet. Use the appropriate collet wrench and chuck wrench for the DA200 system — do not use makeshift tools that could damage the collet taper or chuck bore. Inspect the collet bore and taper seating surfaces for wear or contamination before installation.
