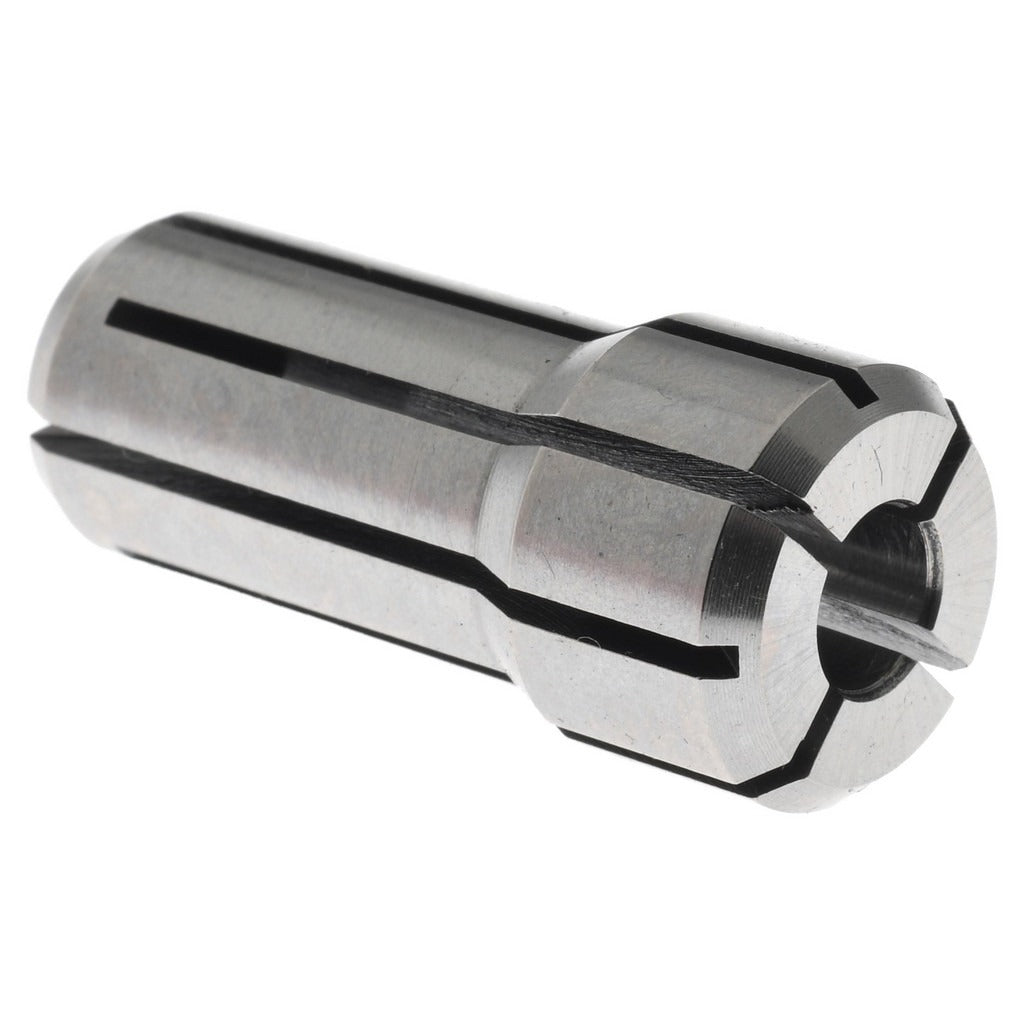

Accupro 586304 DA200 Double Angle Collet 7/32 Inch

Product Description

The ACCUPRO 586304 is a DA200 series double angle collet designed for use in CNC machining centers, milling machines, and high-speed routing applications. It accepts a 7/32 inch (0.2188 inches decimal) tool shank and provides a secure, concentric grip during cutting operations. The collet measures 1.193 inches overall length and 0.539 inches overall diameter. Double angle collets are specified for their improved gripping force and reduced tool runout compared to single angle designs, making them a common choice for production machining environments. Installation and tool changes are performed by machinists and CNC setup technicians.

This collet is suited for use in DA200 collet chucks installed on vertical machining centers, CNC routers, and manual milling machines in both job shop and production settings. It is appropriate for holding end mills, drill bits, and other round-shank cutting tools with a 7/32 inch shank diameter. Sold individually, it fits directly into compatible DA200 collet chuck bodies without modification.

Key Features

• DA200 collet series for use with DA200 collet chuck bodies
• 7/32 inch (0.2188 inches) bore diameter for standard round-shank tooling
• 1.193 inches overall length for consistent tool projection
• 0.539 inches overall diameter matches DA200 chuck seat dimensions
• Double angle design provides increased gripping force and reduced runout
• Sold as individual unit with no minimum beyond single-piece order

Compatibility

Designed for use with DA200 series collet chuck bodies that accept the DA200 collet form factor.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Before changing collets, power down and lock out the machine spindle per facility lockout/tagout procedures. Inspect the collet seat and chuck body for chips or debris before seating the collet. Do not exceed the tool shank size rating of the collet, and use a calibrated torque wrench on the chuck nut where a specification is provided by the chuck manufacturer.
