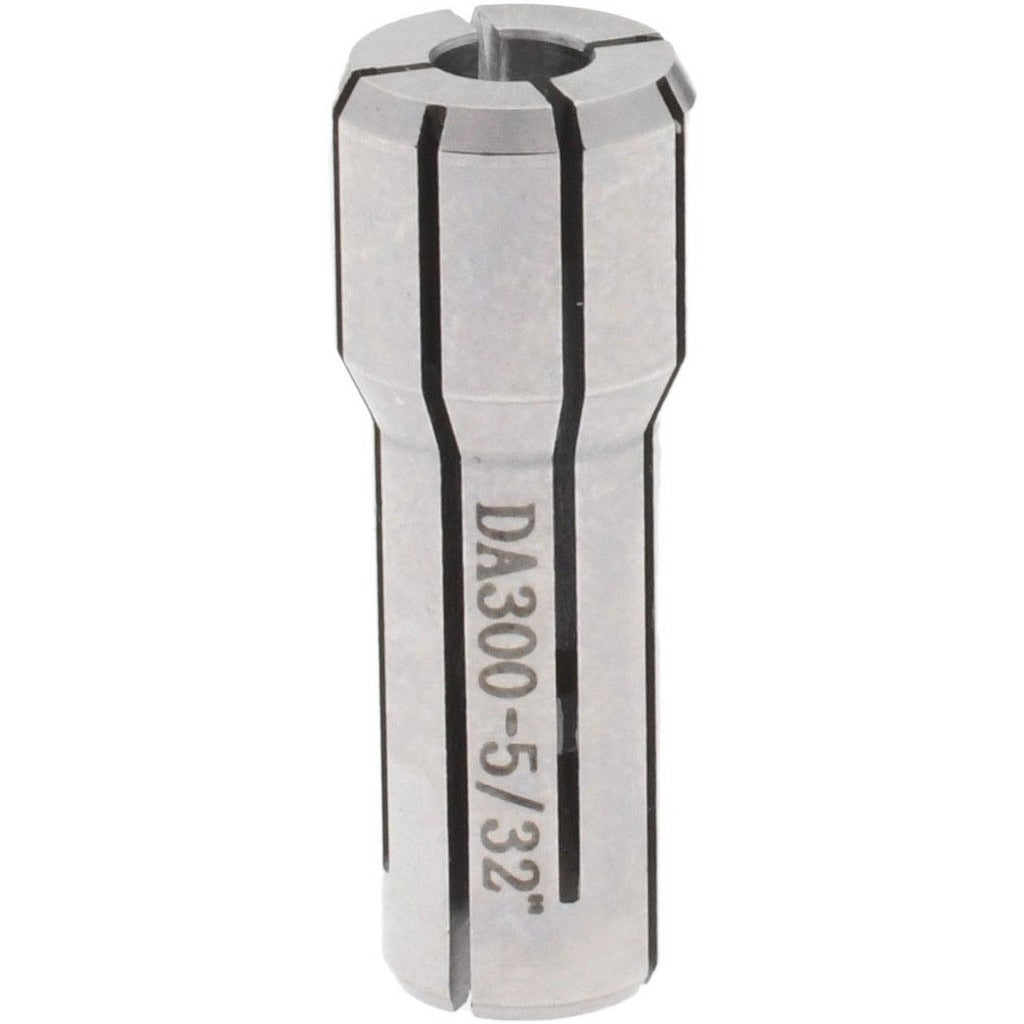

Accupro 586296 DA300 Double Angle Collet 5/32 Inch

Product Description

The ACCUPRO 586296 is a DA300 series double angle collet designed to hold cutting tools and workpieces in milling machines, CNC machining centers, and compatible spindle tooling setups. Built to the DA300 collet standard, it accepts a 5/32 inch (0.15630 inch decimal) shank diameter and measures 1 inch overall length with an overall diameter of 0.3750 inch. The double angle design provides a secure, concentric grip on round-shank tooling, making it a common choice for production and job-shop environments where consistent tool runout control is required.

This collet is suited for use in machine shops running DA300-compatible collet chucks on vertical mills, drill presses, and CNC spindles. It accommodates light to medium cutting loads typical of smaller-diameter end mills, drills, and reamers with 5/32 inch shanks. Machinists and toolroom technicians working with DA300-series toolholders will find this a direct fit for standard production applications.

Key Features

• DA300 collet series — fits DA300-compatible collet chucks and toolholders
• 5/32 inch (0.15630 inch) bore diameter for secure small-shank tool holding
• 1 inch overall length for compact spindle engagement
• 0.3750 inch overall diameter matches DA300 series chuck specifications
• Double angle collet design provides concentric clamping grip
• Sold individually — one collet per package

Compatibility

Designed for use with DA300-series collet chucks that accept the DA300 collet standard. Confirm chuck series compatibility before installation.

Installation Notes

Installation is performed by machining technicians familiar with collet chuck systems. Power down and de-energize the machine spindle completely before removing or seating any collet. Use the correct DA300 collet nut and torque it with the appropriate spanner wrench — do not use substitutes that could damage the collet or chuck taper. Inspect the collet bore and chuck taper for chips or debris before assembly to ensure accurate tool runout.
