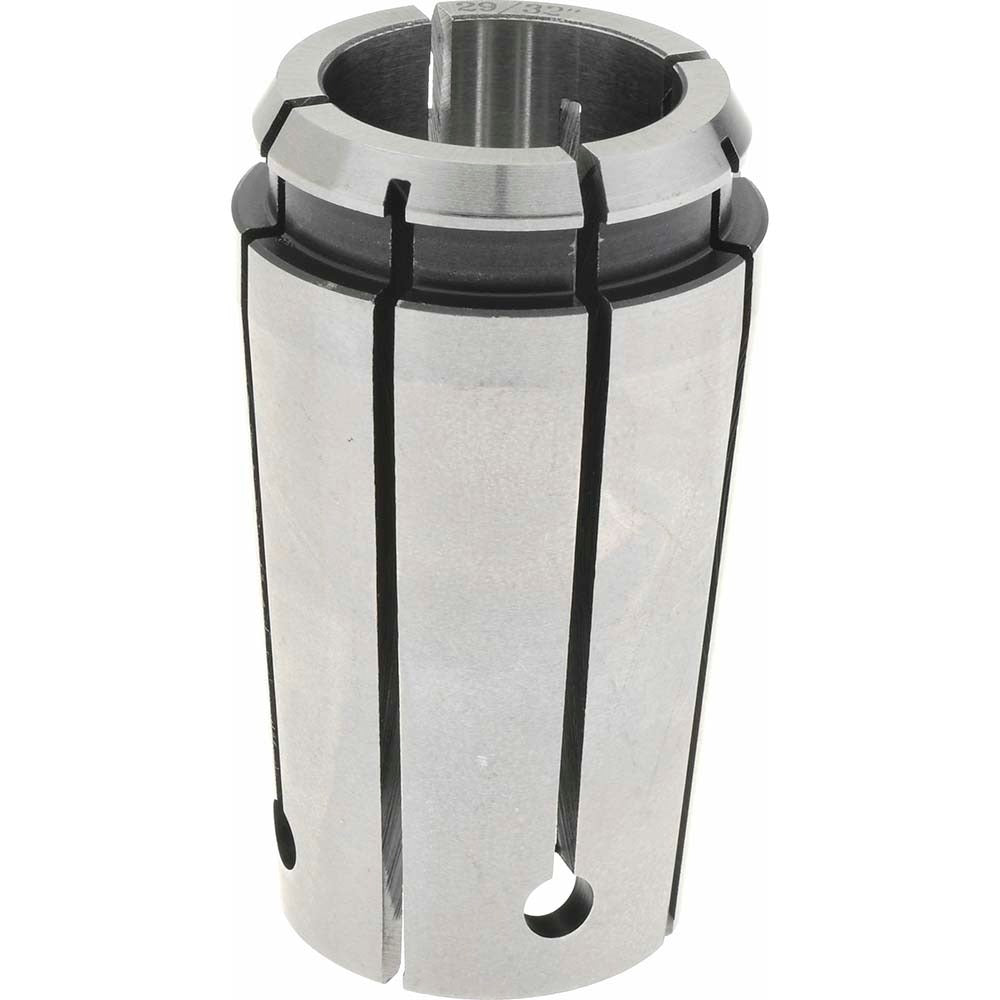

Accupro 584477 Tg/pg 100 Single Angle Collet 0.9063 in

Product Description

The ACCUPRO 584477 is a standard single angle collet designed for use in TG/PG 100 tooling systems on CNC machining centers, milling machines, and similar rotating spindle equipment. The collet accepts a 0.9063 inch (29/32 inch) shank diameter and delivers a total indicator runout (TIR) of 0.00078 inches, supporting accurate, repeatable tool holding in precision machining operations. The maximum body diameter is 1.278 inches and the overall length is 2.386 inches. Installation is performed by qualified machine operators or toolroom technicians setting up spindle toolholders for production or job-shop applications.

This collet is suited for TG/PG 100 series collet chucks used in horizontal and vertical machining centers across both job-shop and production environments. The TG/PG 100 collet system is a widely adopted standard for milling and drilling operations requiring a secure, balanced grip on round-shank tooling. The 29/32 inch nominal bore size makes this collet appropriate for tooling with a 0.9063 inch shank, including end mills, drills, and reamers of that diameter.

Key Features

• TG/PG 100 series collet system compatibility for broad spindle chuck fitment
• 0.9063 inch (29/32 inch) bore capacity for precise shank engagement
• Low TIR of 0.00078 inches supports accurate, concentric tool rotation
• 1.278 inch maximum body diameter fits standard TG 100 chuck bodies
• 2.386 inch overall length provides appropriate tool projection for typical setups
• Weighs 1 pound for straightforward handling during toolholder assembly

Compatibility

Designed as an OEM-style replacement and standard fitment collet for TG/PG 100 series collet chuck systems accepting a 0.9063 inch bore size.

Installation Notes

Installation is performed by a qualified machine operator or toolroom technician. Power down and lock out the spindle drive before inserting or removing collets from the chuck body. Use the appropriate TG 100 spanner wrench and collet nut when seating and tightening the collet to ensure even clamping force. Inspect the collet bore and chuck taper for chips or burrs before assembly to protect TIR performance.
