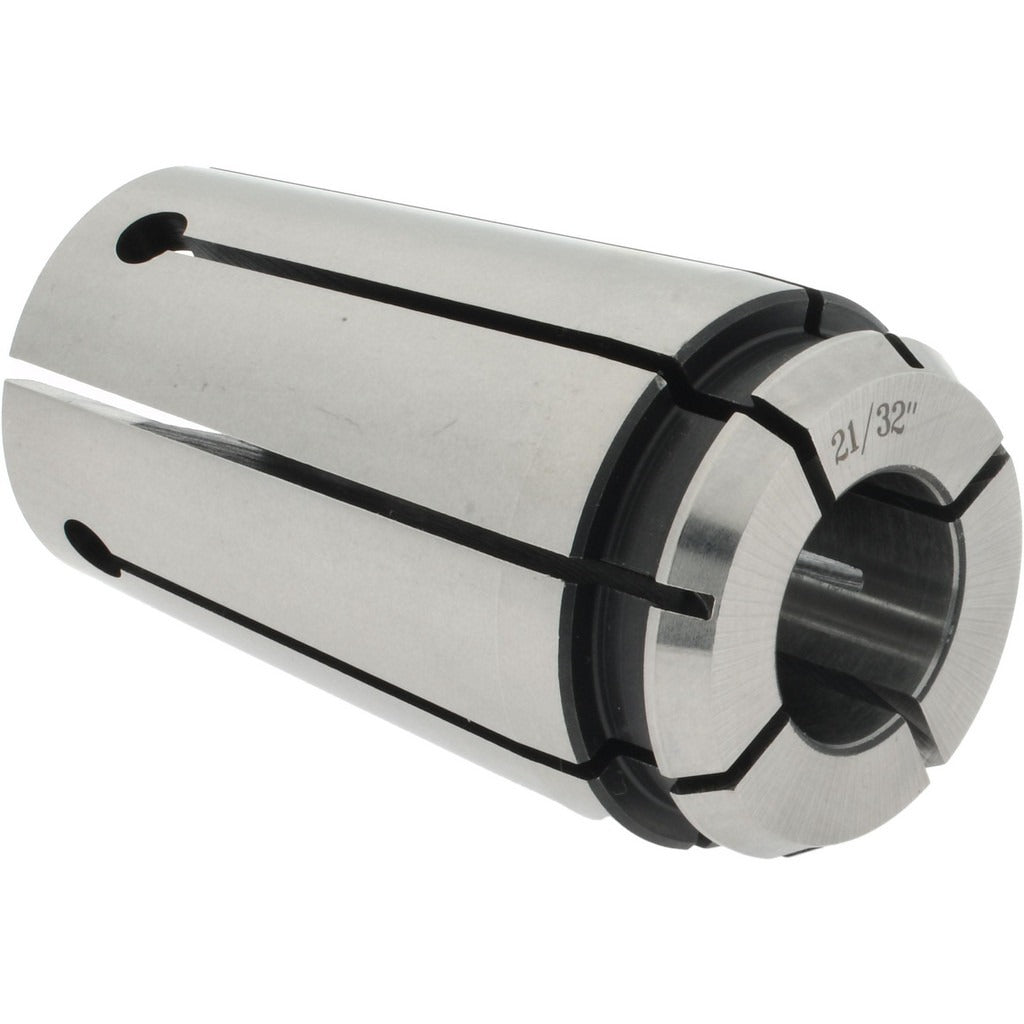

Accupro 584461 Tg/pg 100 Single Angle Collet 0.6563 in

Product Description

The ACCUPRO 584461 is a standard single angle collet designed for use in TG/PG 100 tooling systems. It accepts a 0.6563 inch (21/32 inch) bore diameter and delivers a total indicated runout (TIR) of 0.00078 inches, making it suitable for precision machining operations where concentricity matters. The collet measures 2.386 inches in overall length with a maximum body diameter of 1.278 inches. It is installed by machinists and toolroom technicians in CNC machining centers, mills, and other spindle-driven equipment using TG/PG 100 collet chucks.

This collet is intended for use in TG/PG 100 collet chuck systems in both production and toolroom environments. Typical applications include end mill holding, drill holding, and reamer holding where a standard single angle collet provides adequate grip and runout control. The 0.6563 inch bore size accommodates round shank tooling at that diameter in machining centers and knee mills equipped with compatible TG/PG 100 chucks.

Key Features

• 0.6563 inch (21/32 inch) bore diameter for round shank tooling
• TIR of 0.00078 inches for consistent concentricity
• 2.386 inch overall length fits standard TG/PG 100 chuck depth
• Maximum body diameter of 1.278 inches
• Standard single angle collet geometry for broad TG/PG 100 compatibility

Compatibility

Designed for use with TG/PG 100 series collet chuck systems. Verify that the host chuck is rated for the TG/PG 100 collet series before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the spindle is fully powered down and the machine is locked out before changing collets. Clean the collet chuck bore and collet taper surfaces before seating to prevent premature wear and runout errors. Do not exceed the rated clamping torque specified by the chuck manufacturer for the TG/PG 100 series.
