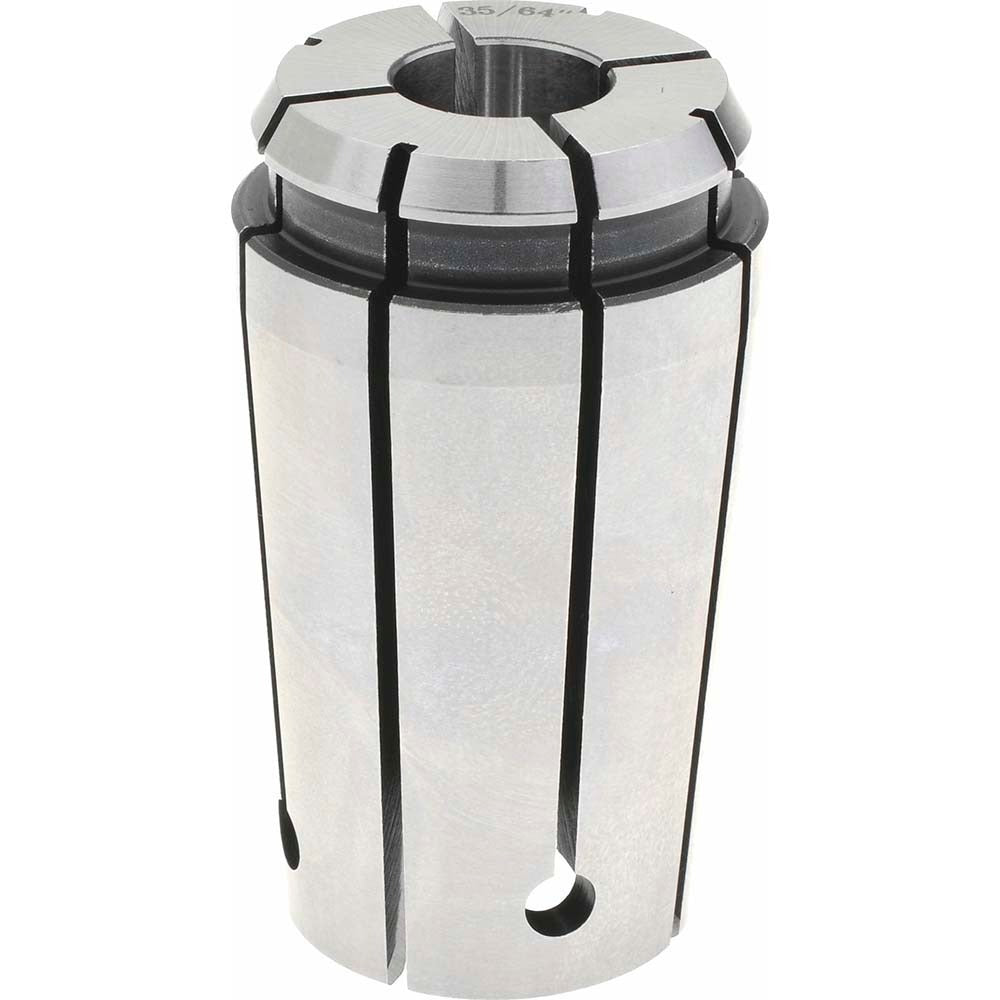

Accupro 584454 Tg/pg 100 Single Angle Collet 0.5469 in

Product Description

The ACCUPRO 584454 is a standard single angle collet built to the TG/PG 100 collet series specification. It accepts a 0.5469 inch (35/64 inch) tool shank and delivers a total indicated runout (TIR) of 0.00078 inches, making it suitable for precision milling, drilling, and reaming operations. The collet measures 2.386 inches in overall length with a maximum body diameter of 1.278 inches. It is designed for use in TG/PG 100 compatible collet chucks found on CNC machining centers, manual mills, and drill presses. Machinists and tooling setup technicians install this collet as part of a standard tool holding system requiring high concentricity and repeatable grip force.

This collet is intended for shops running TG/PG 100 series toolholding systems on vertical and horizontal machining centers as well as manual knee mills. It is well suited for production environments where consistent runout control is required across multiple tool changes. The 35/64 inch bore size accommodates a range of standard cutting tool shanks in that diameter class. Both job shops and production facilities use this collet size for general-purpose metal cutting applications.

Key Features

• TG/PG 100 series collet for broad compatibility with TG 100 chuck bodies
• 0.5469 inch (35/64 inch) bore accepts standard shank tooling in that diameter
• Low TIR of 0.00078 inches supports precise, repeatable tool positioning
• Overall length of 2.386 inches fits standard TG/PG 100 chuck depth requirements
• Maximum body diameter of 1.278 inches matches TG 100 chuck bore geometry
• Standard single angle collet design for straightforward installation and release

Compatibility

Designed for use with TG/PG 100 series collet chucks that accept a standard single angle collet with a 1.278 inch maximum body diameter and 2.386 inch overall length.

Installation Notes

Installation is performed by a machinist or toolroom technician using the appropriate TG/PG 100 collet nut and spanner wrench. Always ensure the spindle is powered down and the machine is in a locked-out, tagged-out state before changing tooling. Clean the chuck bore and collet exterior of chips and coolant residue before seating the collet to maintain concentricity. Do not exceed the chuck manufacturer's recommended torque range for the collet nut, and inspect the collet for wear or damage before each use.
