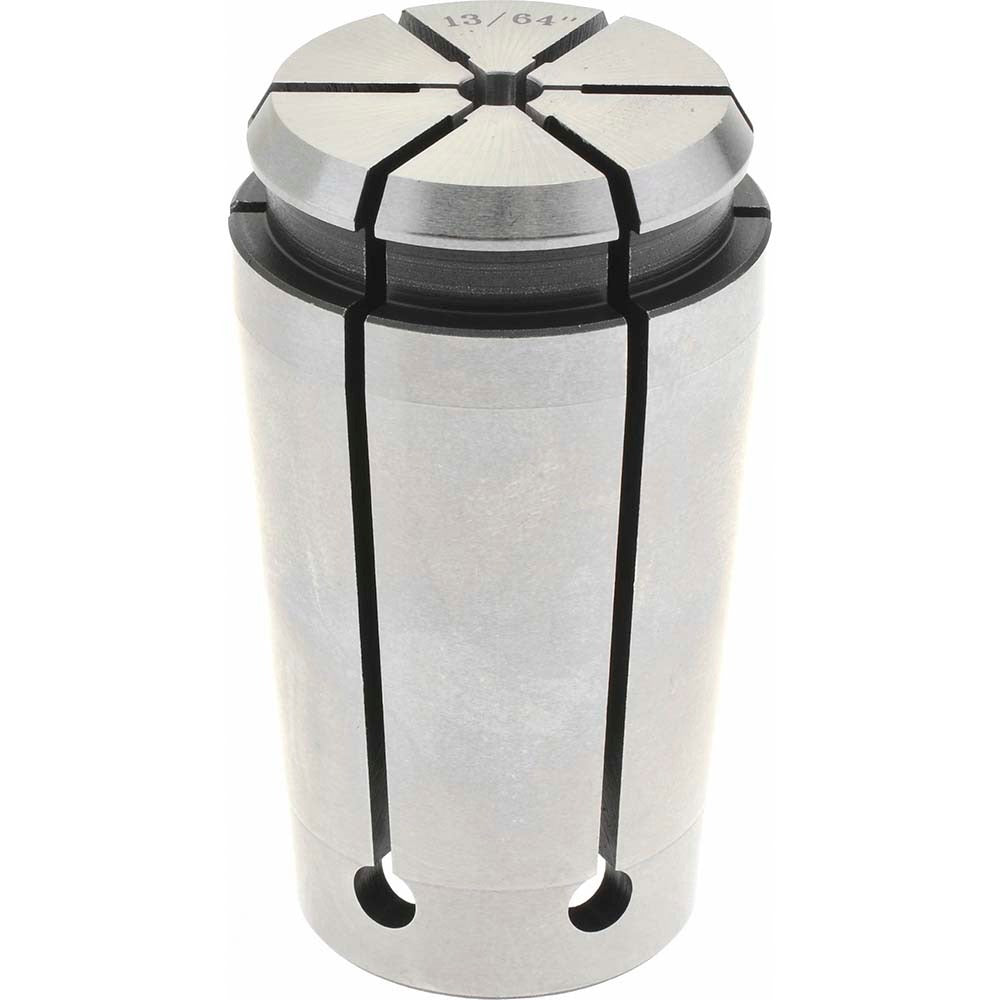

Accupro 584432 Tg/pg 100 Standard Single Angle Collet

Product Description

The ACCUPRO 584432 is a standard single angle collet in the TG/PG 100 series, designed for use in TG/PG 100 toolholding systems on milling machines, machining centers, and CNC equipment. It accepts a 0.2031 inch (13/64 inch) bore diameter and features a maximum body diameter of 1.278 inches and an overall length of 2.386 inches. Total indicator runout (TIR) is held to 0.00078 inches, supporting accurate, repeatable tool grip in precision machining operations. Licensed machinists and toolroom technicians are the primary installers.

This collet is suited for production and toolroom environments where consistent clamping force and low runout are required. The TG/PG 100 series is a widely used collet standard in horizontal and vertical machining applications. It fits standard TG/PG 100 collet chucks and is appropriate for both light finishing passes and moderate material-removal operations where bore size 0.2031 inch is called for.

Key Features

• 0.2031 inch (13/64 inch) bore diameter for precise tool grip
• TIR of 0.00078 inches for accurate, repeatable runout performance
• Maximum body diameter of 1.278 inches fits standard TG/PG 100 chucks
• Overall length of 2.386 inches provides adequate reach in standard chuck depths
• TG/PG 100 series collet standard for broad chuck compatibility

Compatibility

Designed for use with TG/PG 100 series collet chucks in standard machining center toolholding systems.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before inserting or removing collets. Inspect the collet bore, taper, and mating chuck surfaces for debris or damage before assembly. Do not force the collet into the chuck; proper seating relies on clean, undamaged taper contact surfaces.
