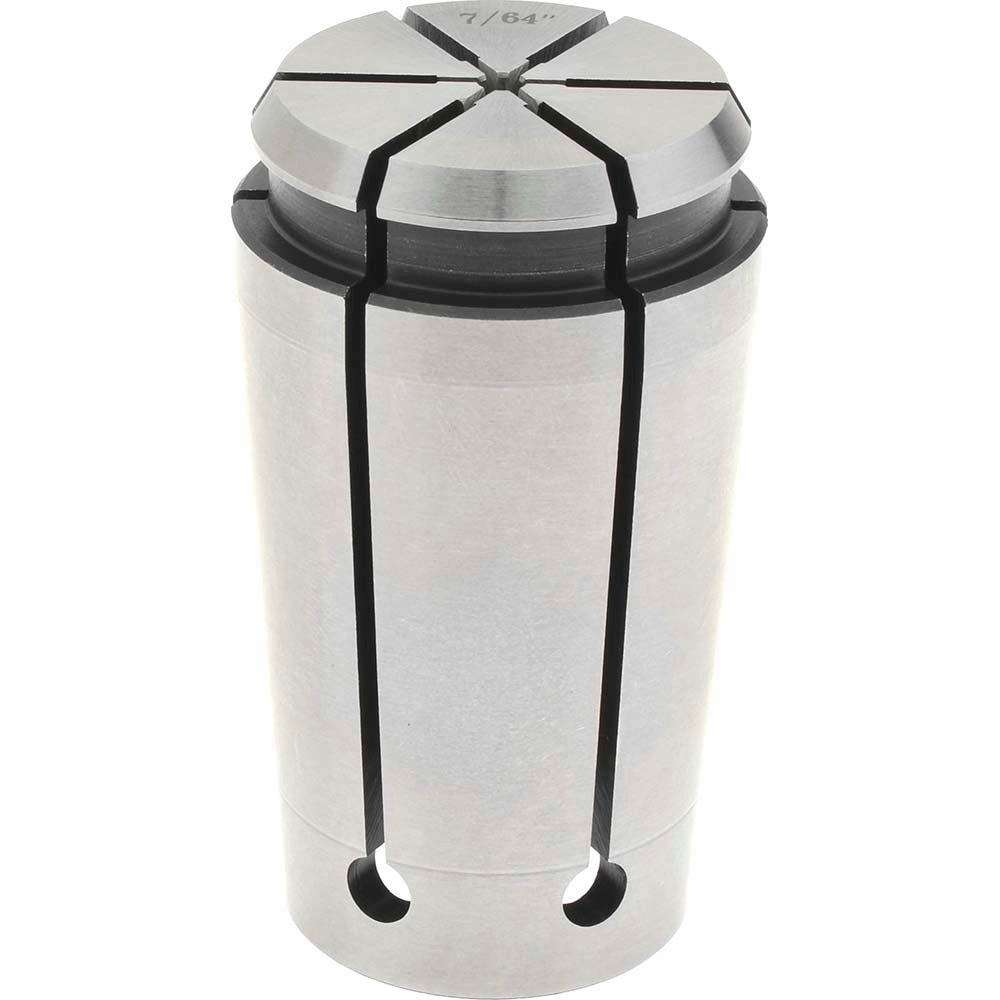

Accupro 584426 Tg/pg 100 Standard Collet 0.1094 in

Product Description

The ACCUPRO 584426 is a standard single angle collet in the TG/PG 100 series, designed for precision workholding in milling and drilling operations. It accepts a 0.1094 inch (7/64 inch) tool shank and delivers a total indicator runout (TIR) of 0.00078 inches (0.0200 mm), supporting accurate, repeatable cutting performance. With a maximum body diameter of 1.2780 inches and an overall length of 2.386 inches, this collet fits TG/PG 100 collet chucks used on CNC machining centers and manual milling machines. Machinists and toolroom technicians rely on this collet for consistent tool concentricity in production and maintenance environments.

This collet is suited for use in machine shops, toolrooms, and production facilities running TG/PG 100 collet chuck systems. It is appropriate for both CNC and conventional milling setups where a 0.1094 inch shank tool must be held with minimal runout. Typical applications include end milling, drilling, and reaming operations requiring close-tolerance workholding. The standard single angle geometry is compatible with standard TG/PG 100 collet nuts and chucks.

Key Features

• TG/PG 100 collet series for use with matching collet chucks
• 0.1094 inch (7/64 inch) collet size for precise shank fitment
• Low TIR of 0.00078 inches (0.0200 mm) for accurate tool concentricity
• Maximum body diameter of 1.2780 inches
• Overall length of 2.386 inches
• Standard single angle design compatible with TG/PG 100 collet nuts

Compatibility

Designed for use with TG/PG 100 series collet chucks accepting standard single angle collets with a 0.1094 inch bore.

Installation Notes

Installation is performed by machinists or toolroom technicians familiar with collet chuck systems. Before installing or removing a collet, ensure the machine spindle is fully stopped and the machine is powered down or locked out per applicable safety procedures. Clean the collet bore and chuck taper thoroughly before seating the collet to avoid runout caused by debris. Do not exceed the collet's rated capacity by forcing an oversized shank.
