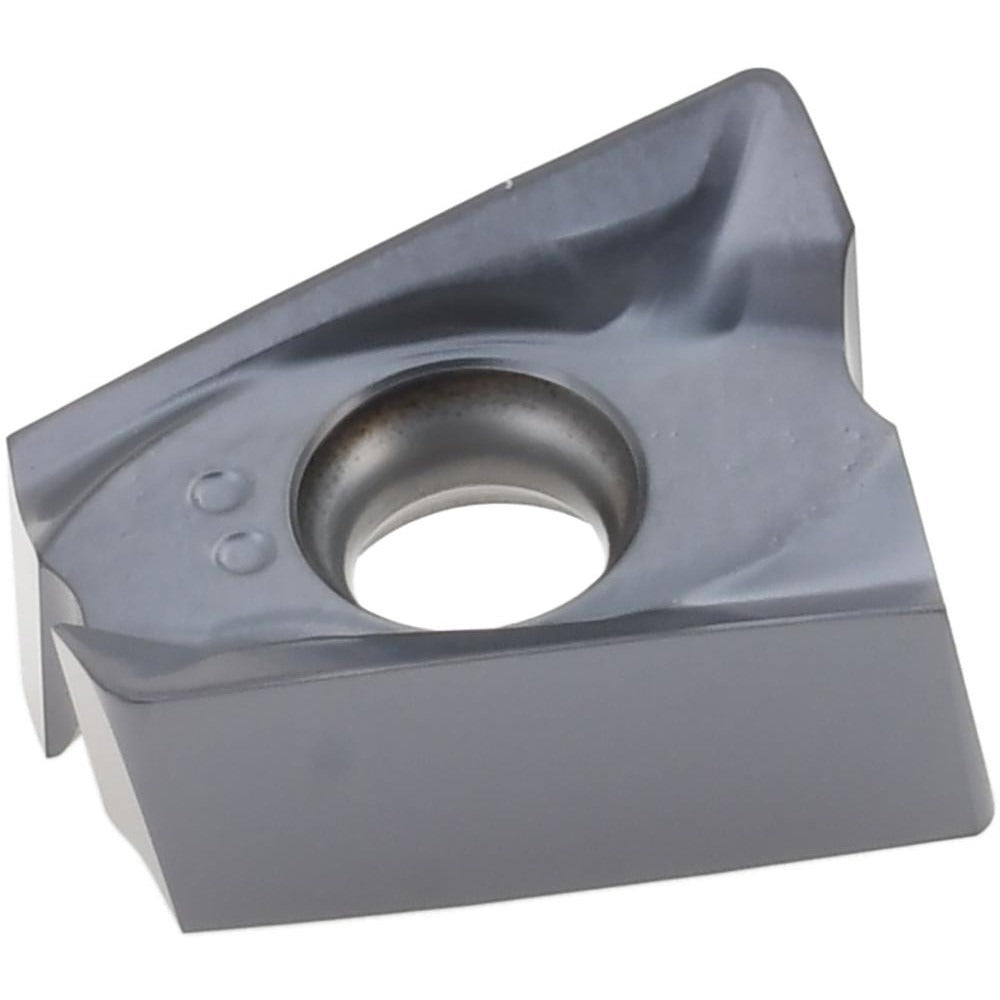

Accupro 56465685 Loku Solid Carbide Milling Insert

Product Description

The ACCUPRO 56465685 is a solid carbide milling insert designed for use in indexable milling cutters compatible with the LOKU cutter series. Manufactured to ISO code LOKU120608ERSCM, this double-sided insert features a rectangular shape with a positive rake angle and a 5-degree relief angle. It carries the ACM40P manufacturer grade and a PVD coating for enhanced wear resistance. With four usable cutting edges per insert, it delivers extended tool life in demanding milling applications. The insert is held in the cutter body by a screw-clamp method and is right-hand oriented.

This insert is suited for milling operations in ferrous and non-ferrous materials where consistent edge geometry and surface finish are required. The positive rake geometry helps reduce cutting forces, making it appropriate for medium to light milling passes in both vertical and horizontal machining center setups. It is installed by machinists, toolroom technicians, and CNC operators performing routine insert indexing or tooling changeovers.

Key Features

• Solid carbide construction with PVD coating for wear resistance
• Double-sided insert with 4 cutting edges for extended service life
• Positive rake and 5-degree relief angle for reduced cutting forces
• Screw-clamp insert holding method for secure seating
• 0.0315 inch (0.80 mm) corner radius for controlled edge blending
• Maximum depth of cut of 0.4724 inches (12.00 mm)

Compatibility

Designed for use with LOKU series cutter bodies per ISO code LOKU120608ERSCM. Cutter series compatibility is listed as LOKU.

Installation Notes

Insert indexing and replacement should be performed with the machine powered down and the spindle fully stopped. Use the appropriate torx or hex key driver specified by the cutter body manufacturer when securing the clamping screw — do not overtighten. Inspect the insert pocket seat for chips or debris before seating the new insert. Proper insert orientation for right-hand cut must be confirmed before resuming operation.
