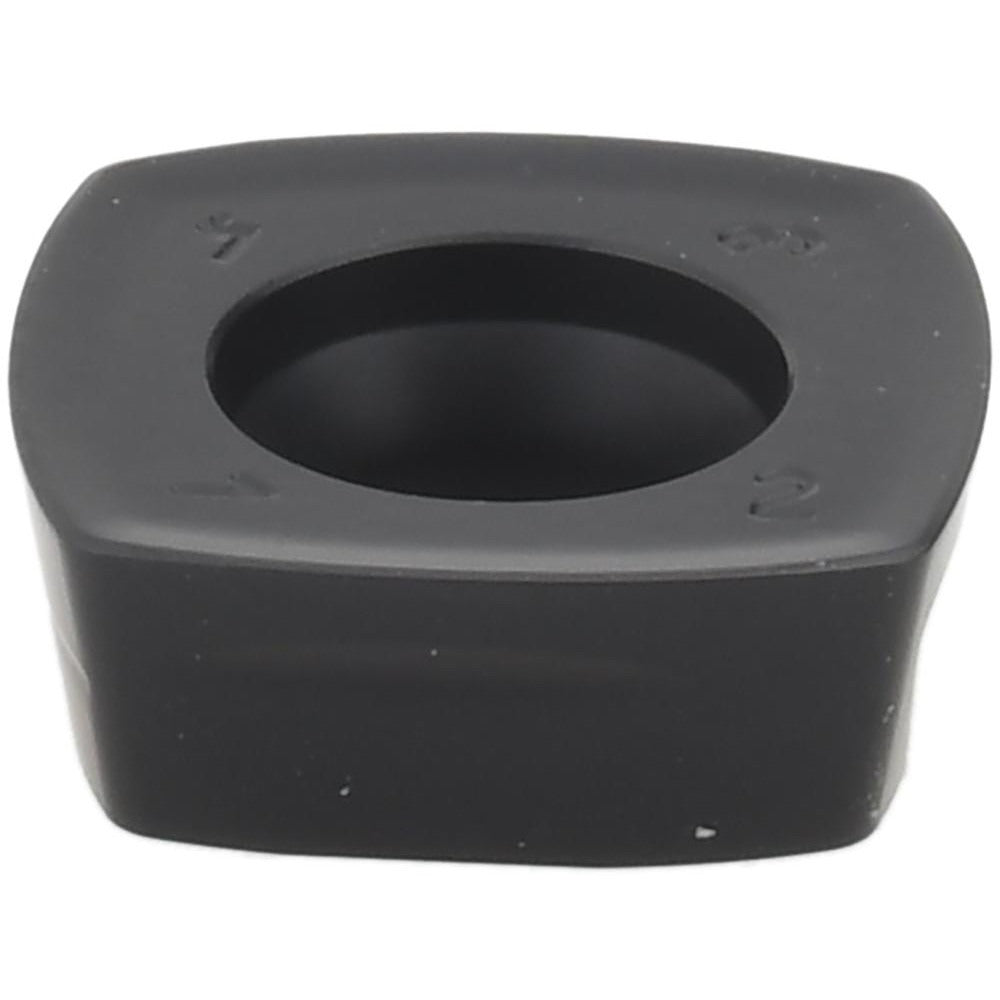

Accupro 54054838 Square Milling Insert Solid Carbide ACP30M

Product Description

The ACCUPRO 54054838 is a solid carbide milling insert designed for precision material removal in indexable milling applications. Manufactured to the ISO code XOLT130410SRHCM, this insert features a square shape with a positive rake geometry and a 9-degree relief angle, supporting efficient chip evacuation and reduced cutting forces. The CVD coating in ACP30M grade provides thermal resistance and wear protection suited to a range of workpiece materials. With 4 cutting edges per insert and a corner radius of 0.0394 inches (1.00 mm), it delivers consistent performance across multiple index cycles before replacement. Installed by machinists and tooling technicians, this insert fits the ACCUPRO CI series XOLT cutter platform.

This insert is intended for use in milling operations requiring controlled depth of cut and tight tolerances. The maximum depth of cut is 0.0394 inches (1.00 mm), making it well suited for finishing and light semi-finishing passes. The right-hand cutting orientation and screw-holding method ensure secure seating in compatible XOLT-style cutter bodies. Single-sided construction simplifies indexing and reduces setup error on the shop floor.

Key Features

• Solid carbide substrate with CVD coating in ACP30M grade for wear and heat resistance
• Square insert shape with positive rake geometry for reduced cutting forces
• 4 cutting edges per insert for extended tooling economy
• 9-degree relief angle supports chip clearance in milling applications
• Screw-held, single-sided design for repeatable seating and fast indexing
• Corner radius of 0.0394 inches (1.00 mm) for consistent finish quality

Compatibility

Designed for use with ACCUPRO CI series XOLT-style indexable milling cutter bodies that accept the XOLT130410SRHCM insert geometry.

Installation Notes

Insert replacement should be performed with the cutter body secured and the machine powered down and locked out. Use the appropriate torx or hex key as specified by the cutter body manufacturer to seat the clamping screw to the correct engagement without over-torquing. Inspect the insert pocket and seating surface for debris or wear before indexing or replacing the insert. Follow shop safety procedures and applicable ANSI or OSHA guidelines for tooling changeover.
