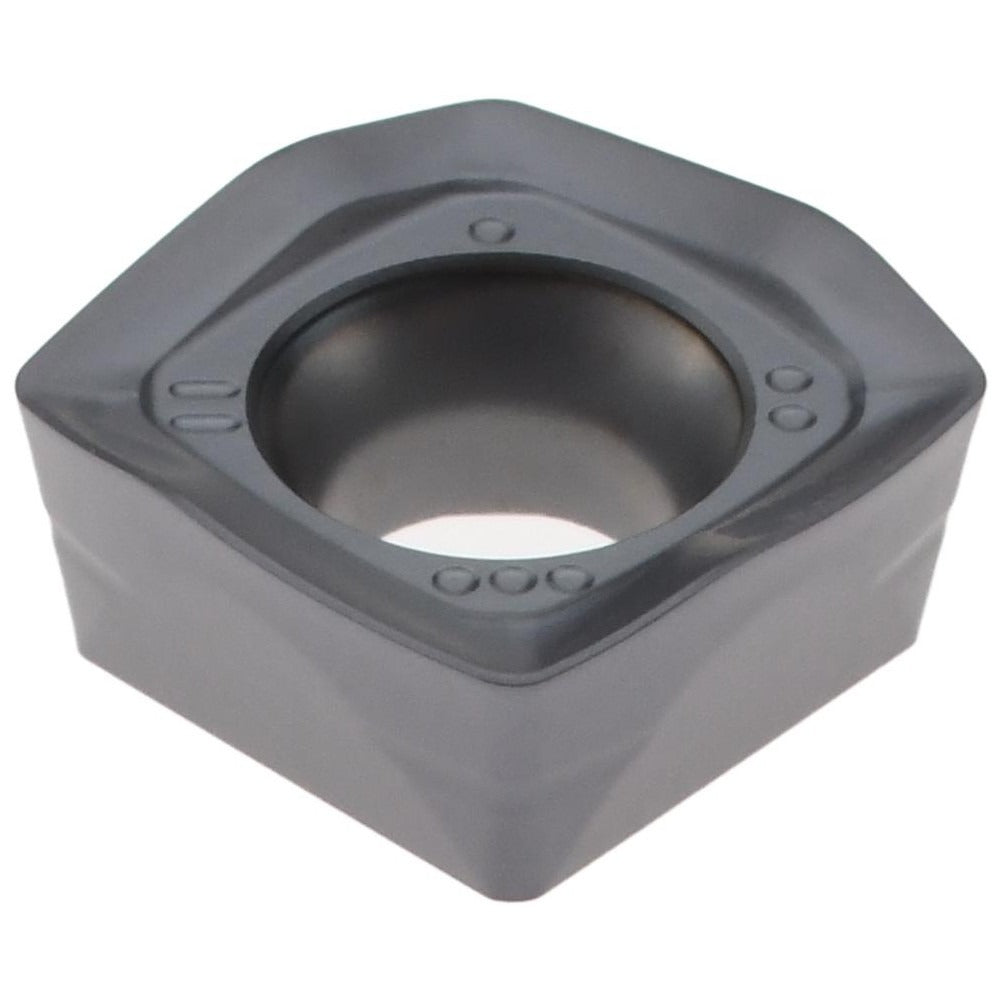

Accupro 54054515 Solid Carbide Milling Insert Xdlx

Product Description

The ACCUPRO 54054515 is a solid carbide milling insert designed for use in indexable milling cutters that accept the XDLX insert style. Ground to a square shape with a positive rake geometry and a 15-degree relief angle, this insert delivers clean shearing action on a range of workpiece materials. The manufacturer grade ACM40P with PVD coating makes it well suited for mid-to-high speed milling applications where tool life and edge integrity matter. With four cutting edges per insert, the 54054515 offers consistent performance across multiple index positions before replacement. Installation is screw-held, and the insert is right-hand oriented.

This insert is intended for use in XDLX-series compatible milling cutter bodies in the CI series. It fits standard indexable face mills, shoulder mills, and similar toolholders configured for the XDLX10T308SRSCM ISO code. Typical applications include face milling and light shoulder milling in production environments. The 0.0394-inch maximum depth of cut makes it appropriate for finishing and semi-finishing passes. A licensed machinist or CNC tooling technician typically selects and installs this insert in shop or manufacturing settings.

Key Features

• Solid carbide construction with PVD coating in ACM40P grade for wear resistance
• Positive rake geometry with 15-degree relief angle for efficient cutting action
• Four indexable cutting edges per insert for extended service life
• Screw-held mounting for secure, repeatable seating in compatible toolholders
• ISO code XDLX10T308SRSCM for straightforward toolholder matching
• Corner radius of 0.0335 inches (0.85 mm) for controlled edge blend

Compatibility

Designed for use with XDLX-series and CI-series compatible milling cutter bodies that accept the XDLX10T308SRSCM ISO insert designation.

Installation Notes

Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key as specified by the cutter body manufacturer to seat the clamping screw to the recommended engagement without over-torquing. Inspect the insert pocket and clamping screw for debris or wear before seating a new insert. Handle carbide inserts with care to avoid chipping the cutting edges prior to use.
