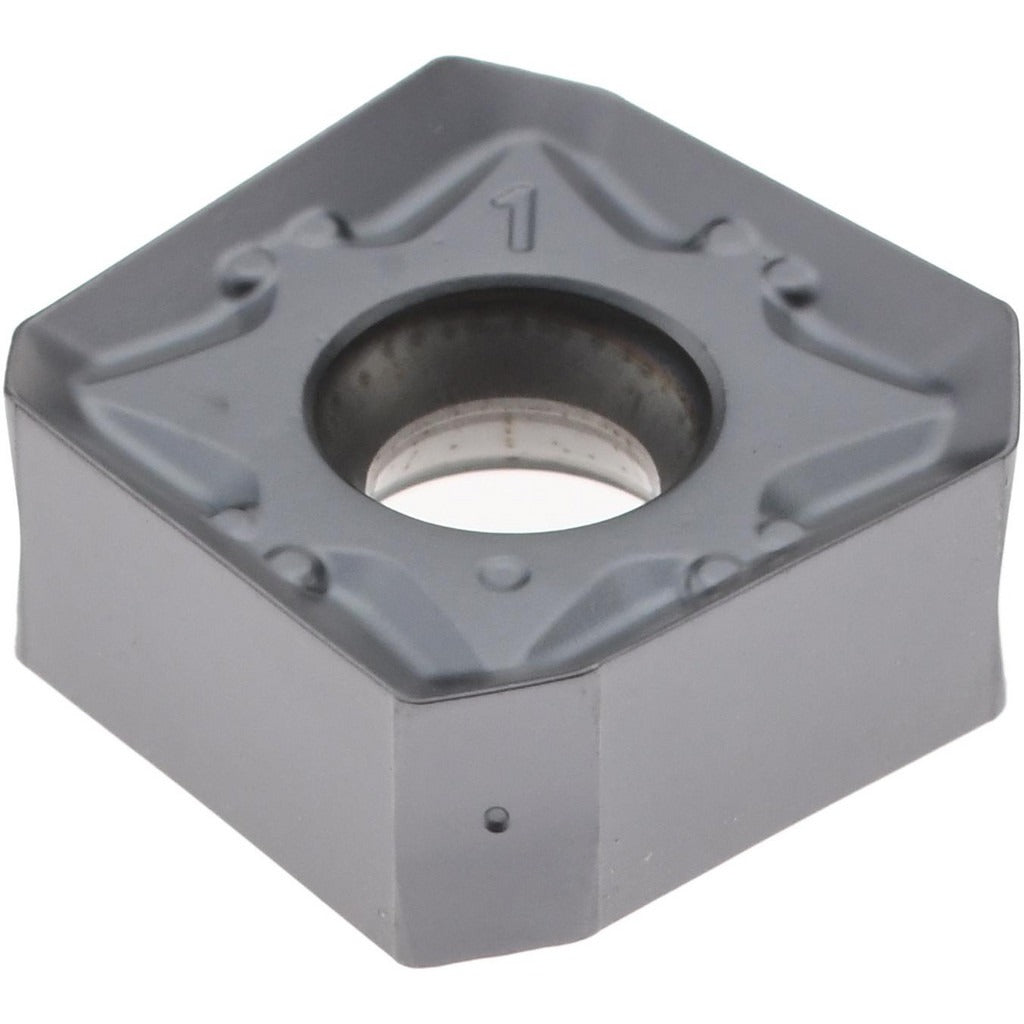

Accupro 54054408 Milling Insert Soku Square Carbide ACP35M

Product Description

The ACCUPRO 54054408 is a solid carbide milling insert engineered for high-performance material removal in milling applications. Featuring a square SOKU insert style with a positive rake angle and 6-degree relief angle, this insert delivers efficient cutting action with reduced cutting forces. The ACP35M grade with PVD coating provides wear resistance and thermal stability during demanding milling operations. With 8 available cutting edges on a double-sided design, this insert offers extended tool life and cost efficiency per edge. It is installed by machinists and tool room professionals in CNC milling centers and manual milling equipment.

This insert is suited for use in light to medium milling operations where a positive rake geometry is advantageous, such as face milling, shoulder milling, and general-purpose material removal. The SOKU cutter series compatibility makes it a direct fit for CI series toolholders and compatible SOKU-style milling cutters. The right-hand cutting orientation and screw-holding method ensure secure seating during operation. It is applicable in both production and job shop environments handling a range of workpiece materials.

Key Features

• Solid carbide construction with ACP35M grade for wear resistance in milling operations
• PVD coating provides thermal stability and extended cutting edge life
• Double-sided insert with 8 cutting edges maximizes value per insert
• Positive rake geometry with 6-degree relief angle reduces cutting forces
• Corner radius of 0.0315 inches (0.80 mm) for controlled surface finish
• Screw-holding method ensures secure, repeatable insert indexing

Compatibility

Designed for use with SOKU-style milling cutters and CI series cutter bodies. ISO code SOKU1205AZERSCM confirms fitment within compatible SOKU toolholder systems.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist with the machine powered down and spindle locked. Use the appropriate torx or hex key to secure the clamping screw to the manufacturer-specified method without overtightening. Inspect the insert pocket for chips or debris before seating each new edge. Follow shop safety procedures and applicable machine tool standards when handling carbide inserts, as edges are extremely sharp.
