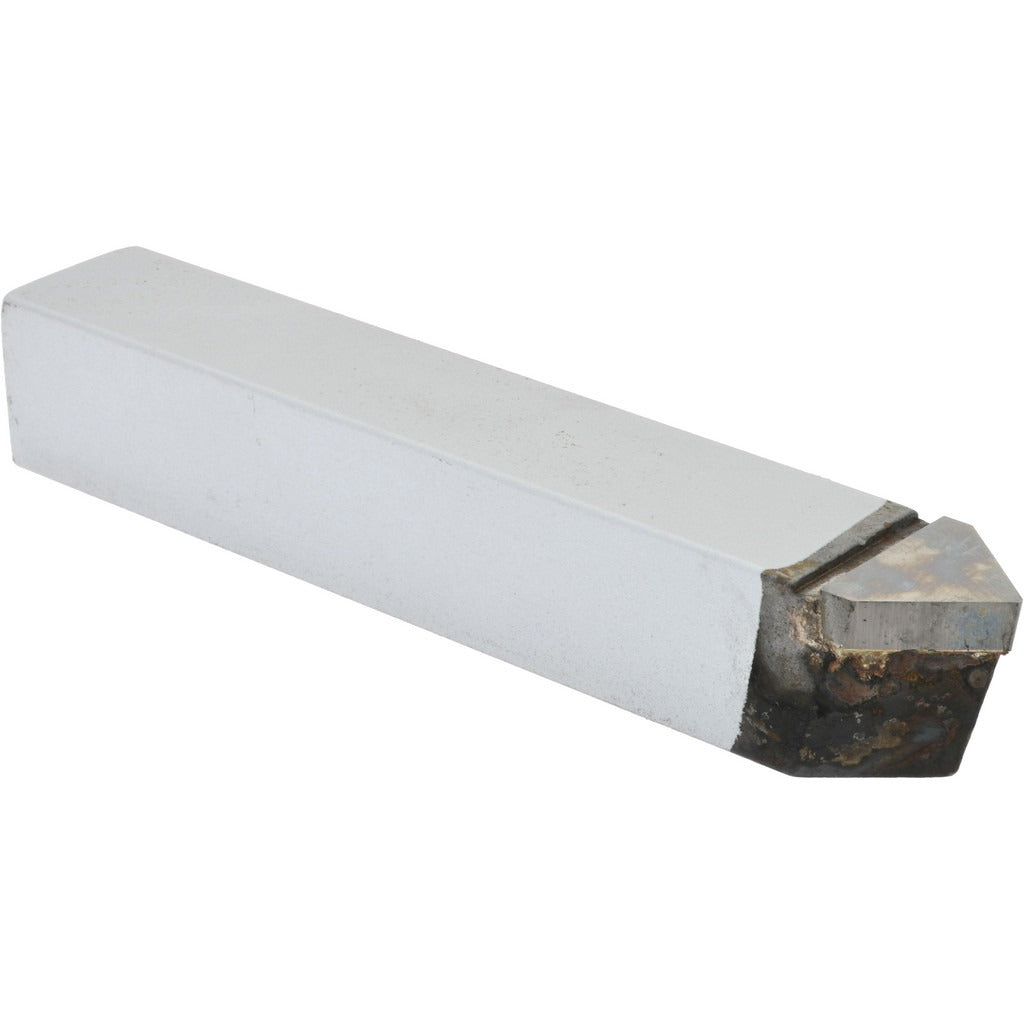

Accupro 535-MG Single Point Tool Bit Solid Carbide

Product Description

The ACCUPRO 535-MG is a single point tool bit designed for precision metal cutting and chamfering operations on the lathe. Built with a micrograin solid carbide tip brazed to a 1-inch square shank, this tool bit delivers consistent edge performance in demanding machining environments. It features a neutral cutting direction, a pointed nose profile, and a 1/32-inch nose radius suited for tight-tolerance work. The 6-inch overall length provides adequate clearance and rigidity. Machinists and tool and die professionals working with steel, cast iron, and non-ferrous metals rely on this style of tool bit for controlled, repeatable cuts.

The 535-MG is intended for use in single point turning and chamfering applications on manual lathes and turret lathes in both job shop and production environments. The D-style geometry with an 80-degree included angle and pointed nose is a standard configuration for chamfering, facing, and light turning where a defined nose radius is required. It fits standard tool holders and indexable-style posts that accept a 1-inch square shank.

Key Features

• Micrograin solid carbide tip for improved wear resistance and edge retention
• Neutral cutting direction suits a wide range of lathe setups
• Pointed nose with 1/32-inch nose radius for chamfering and fine-finish turning
• 1-inch square shank (1-inch width, 1-inch height) for rigid tool post seating
• 6-inch overall length provides standard reach and clearance
• D-style geometry with 80-degree included angle per industry standard D-16

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for manual lathes and turret lathes that accept a 1-inch square shank single point tool bit in D-style geometry.

Installation Notes

Installation is performed by a machinist or toolroom professional. Secure the shank firmly in the tool post or holder, ensuring the cutting edge is set to the correct center height before engaging the workpiece. Power down and lock out the lathe spindle before changing or adjusting tool bits. Do not exceed the tool bit or machine manufacturer's recommended depth of cut or feed rate for the material being machined.
