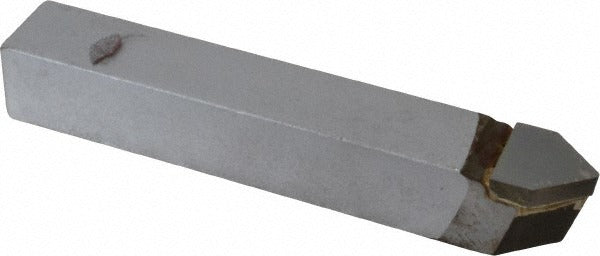

Accupro 525-MG Single Point Tool Bit 5/8 in Carbide Neutral

Product Description

The ACCUPRO 525-MG is a single point tool bit designed for precision turning and chamfering operations on metalworking lathes and machining centers. Built with a micrograin solid carbide tip, it delivers consistent cutting performance on ferrous and non-ferrous materials. The neutral cutting direction and pointed nose geometry conform to the industry standard D-10 profile, making this bit a go-to choice for machinists running production or jobshop turning work. The shank measures 5/8 inches wide and 5/8 inches tall, with an overall length of 4 inches. The 1/32-inch nose radius produces clean surface finishes on chamfers and contours.

This tool bit is suited for use in manual lathes and CNC turning centers where a neutral, D-style pointed nose bit is required for chamfering or general-purpose turning. The 80-degree included angle and micrograin carbide composition handle interrupted cuts and moderate to high surface speeds. It is primarily installed and used by machinists, tool and die makers, and CNC operators in industrial, maintenance, and production environments. The 5/8-inch tip length provides adequate engagement for standard depth-of-cut applications.

Key Features

• Micrograin solid carbide tip for wear resistance and edge retention
• Neutral cutting direction suits straight turning and chamfering passes
• D-style pointed nose geometry per industry standard D-10
• 80-degree included angle for chamfering and contour work
• 1/32-inch nose radius for controlled surface finish
• Compact 4-inch overall length fits standard tool holders and post setups

Compatibility

Designed as an OEM-style replacement or standard drop-in tool bit for lathe tool holders and single point turning setups accepting a 5/8-inch square shank.

Installation Notes

Installation is performed by machinists familiar with lathe tool post setup and tool bit height alignment. Secure the shank firmly in the tool holder before powering the machine, and verify tool tip height relative to the workpiece centerline before taking a cut. Do not exceed the recommended depth of cut or surface speed for the carbide grade in use. Follow the machine manufacturer and shop safety guidelines when handling carbide-tipped tooling.
