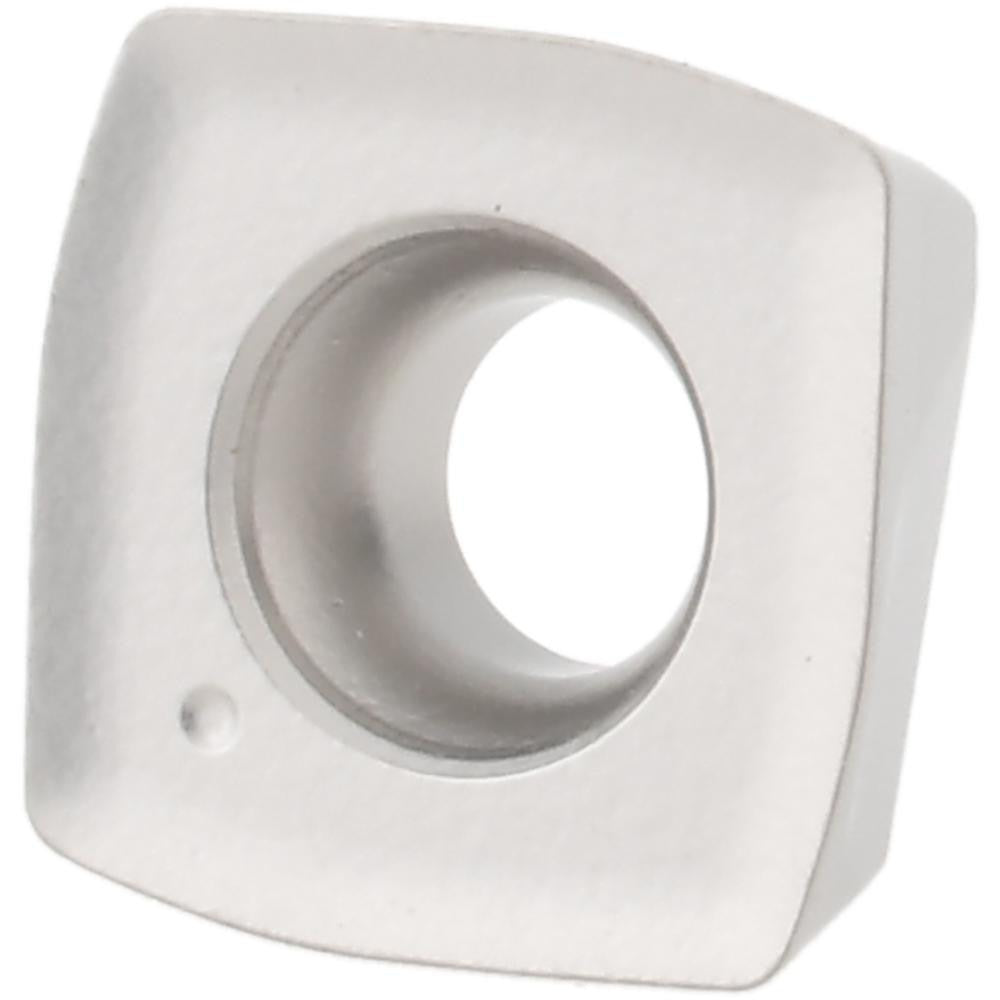

Accupro 52469822 Square Milling Insert Xplt ACS35 Carbide

Product Description

The ACCUPRO 52469822 is a solid carbide milling insert designed for precision metal removal in indexable milling operations. It features a square XPLT insert style with a positive rake geometry and an 11-degree relief angle, promoting clean cutting action and reduced cutting forces. The insert carries a CVD coating in manufacturer grade ACS35, providing thermal resistance and wear protection during demanding milling passes. With four usable cutting edges per insert, it delivers extended service life per unit. A corner radius of 0.0197 inches (0.50 mm) supports controlled surface finish on finish and semi-finish milling applications. Licensed machinists and tooling technicians working on CNC milling centers are the primary users of this insert.

This insert is suited for use in milling toolholders and cutter bodies within the XPLT cutter series, CI series compatibility. It is designed for right-hand cutting applications and handles a maximum depth of cut of 0.0315 inches (0.80 mm). Typical applications include finish and light semi-finish milling on ferrous and non-ferrous materials where dimensional consistency and surface quality are the priority. The screw-in insert holding method ensures secure clamping in compatible cutter bodies.

Key Features

• Solid carbide construction with CVD coating in ACS35 grade for extended wear life
• Square XPLT insert style with positive rake for reduced cutting forces
• Four cutting edges per insert for maximum economy
• Corner radius of 0.0197 inches (0.50 mm) for controlled surface finish
• 11-degree relief angle supports clean chip formation
• Right-hand cutting orientation; screw-in holding method for secure seating

Compatibility

Designed for use with XPLT cutter series and CI series compatible milling cutter bodies that accept size 07 square inserts with screw-in holding. ISO code reference: XPLT070305ERSCM.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with indexable insert tooling. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key as specified by the cutter body manufacturer to achieve proper clamping torque on the insert screw. Inspect the insert pocket and clamping screw for debris or wear before seating the new insert.
