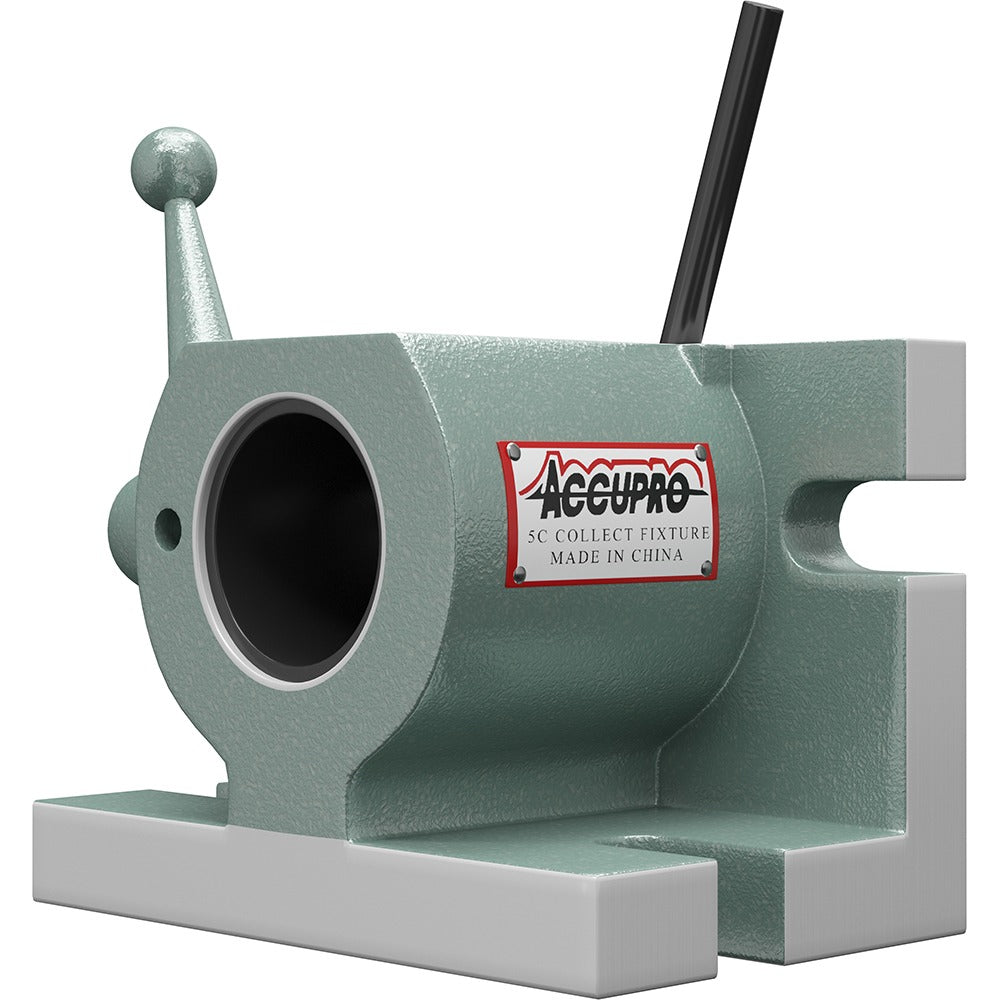

Accupro 514.23200701 5C Collet Holding Fixture

Product Description

The ACCUPRO 514.23200701 is a Series 5C standard collet holding fixture designed for secure workholding in manual machining and toolroom applications. It accepts 5C collets ranging from 1/32 to 1-1/8 inches in collet capacity, making it suitable for a wide range of round, hex, and square stock sizes. The fixture can be oriented horizontally or vertically, giving machinists flexibility depending on the operation. Activation is manual via a cam lever mechanism. With a base diameter of 5 inches and an overall height of 4 inches, the unit provides a stable, low-profile platform for bench, surface plate, or machine table use. At 8 pounds, it is robust enough for repeated industrial use while remaining easy to reposition.

This fixture is intended for machine shops, toolrooms, and production environments where 5C collets are the standard workholding system. It is commonly used for inspection, grinding, milling, and secondary operations that require accurate and repeatable part holding. The horizontal and vertical orientation capability makes it a versatile fixture for shops that need one unit to serve multiple setups. It is typically handled by machinists, tool and die makers, and CNC setup technicians.

Key Features

• Accepts 5C collets with capacity range from 1/32 to 1-1/8 inches
• Dual orientation support: horizontal and vertical mounting
• Manual cam lever activation for quick collet engagement and release
• 5-inch base diameter provides a stable footprint on bench or machine table
• Compact 4-inch overall height keeps the workpiece close to the work surface
• Weighs 8 pounds for a solid, vibration-resistant hold

Compatibility

Designed for use with Series 5C collets. Compatible with any standard 5C collet within the stated capacity range of 1/32 to 1-1/8 inches.

Installation Notes

Installation and setup is typically performed by machinists or tool and die makers. Secure the fixture to the work surface or machine table using the base before inserting the collet and workpiece. Ensure the cam lever is fully engaged before beginning any cutting or grinding operation. Inspect the collet and fixture for wear or damage before each use to maintain holding accuracy and operator safety.
