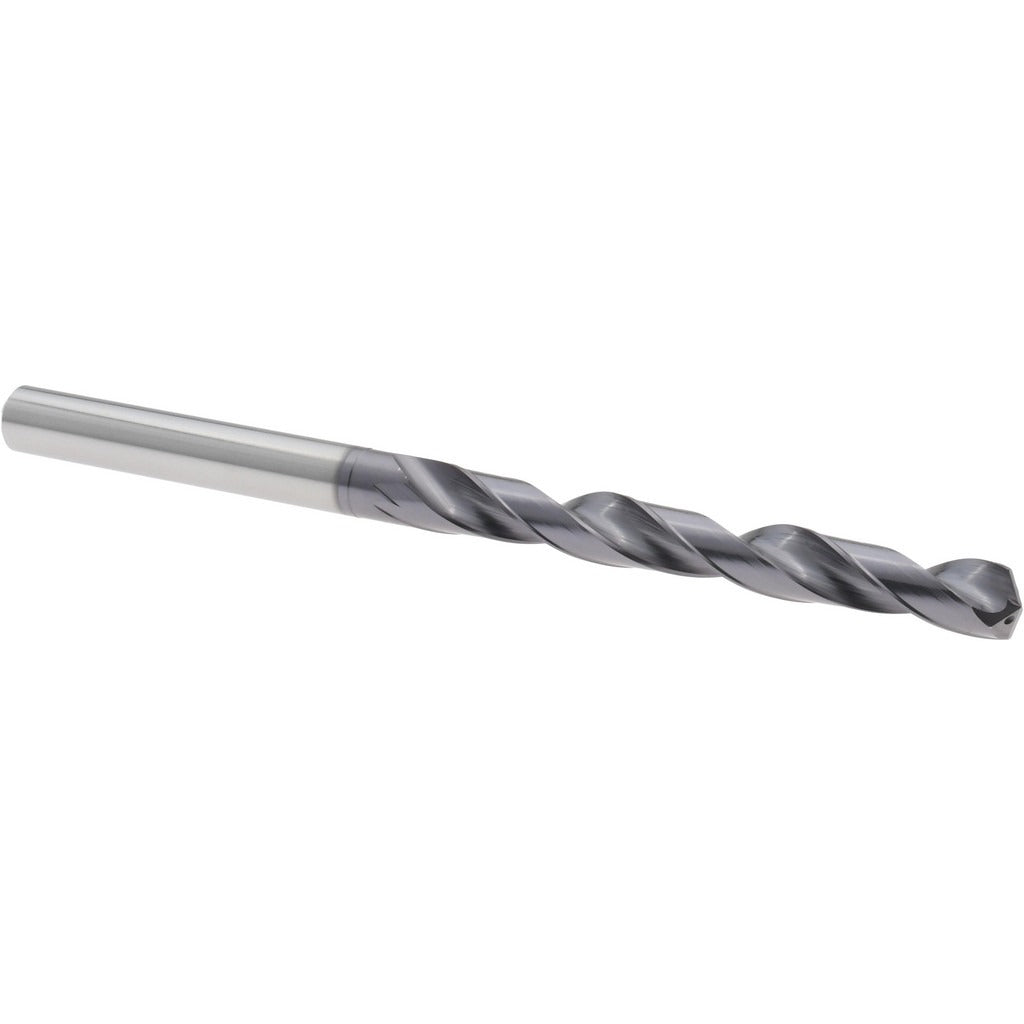

Accupro 4500535 Taper Length Drill Bit 6 Mm Carbide

Product Description

The ACCUPRO 4500535 is a taper length drill bit engineered for high-performance drilling in demanding materials. Built from solid carbide and coated with TiAlN (titanium aluminum nitride), this bit delivers excellent heat resistance and tool life in abrasive and hard-to-machine applications. The 140-degree split point reduces thrust and improves self-centering at entry, while the R-thinned web minimizes walking on hard surfaces. With an 8xD flute-to-diameter ratio, this bit handles deeper cuts with consistent chip evacuation. Coolant-through capability supports high-speed production environments where heat management is critical. Machinists, tool-and-die professionals, and precision fabricators are the primary installers.

This drill bit is sized at 6 mm (0.2362 inches) with a 57 mm flute length and a 95 mm overall length. It is rated for high-performance drilling in stainless steel and similarly difficult materials. The right-hand spiral flute and straight cylindrical shank make it compatible with standard drill chucks and collet systems used in CNC machining centers, drill presses, and manual lathes. The TiAlN coating performs well in dry or minimum-quantity-lubrication setups where coolant cannot be used at the spindle.

Key Features

• Solid carbide construction for rigidity and long tool life in hard materials
• TiAlN coating provides high heat resistance and extended wear performance
• 140-degree point angle reduces entry thrust and improves self-centering
• R-thinned web minimizes chisel edge resistance at drill entry
• Coolant-through design supports high-speed production drilling
• 8xD flute length ratio enables deeper hole drilling with consistent chip clearance

Compatibility

Designed for use in stainless steel applications. Compatible with standard straight-shank drill chucks and collet tool holders accepting a 6 mm shank diameter.

Installation Notes

This bit is installed by qualified machinists or toolroom technicians in CNC or manual drilling setups. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the straight shank firmly in a properly sized collet or drill chuck to the manufacturer-specified holding method to prevent runout. When coolant-through capability is used, verify that the machine spindle and toolholder are configured to deliver coolant through the centerline of the bit.
