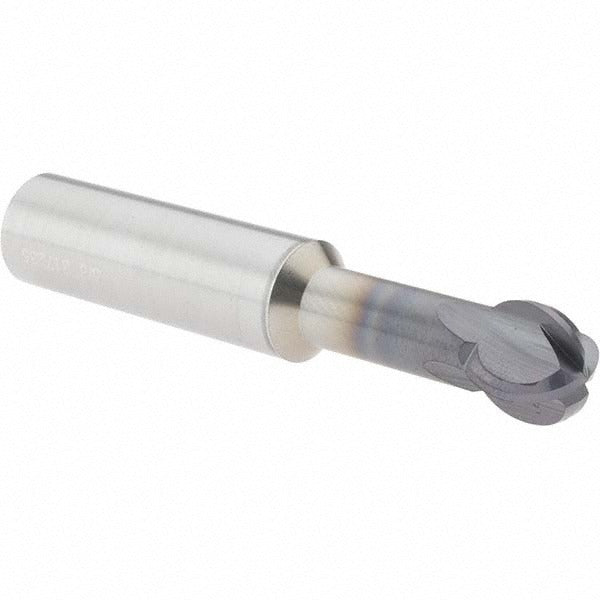

Accupro 41337742 Ball End Mill 5/8 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 41337742 is a solid carbide ball end mill designed for precision milling operations in metal, alloy, and hardened material applications. With a 0.625-inch mill diameter and a 4-flute configuration, this tool delivers efficient chip evacuation and a quality surface finish in a single-end design. The AlTiCrN coating provides heat and oxidation resistance, extending tool life in high-speed and dry-cutting environments. The variable index geometry helps reduce chatter and vibration during the cut. This end mill is suited for use by machinists and tooling professionals working with CNC machining centers and manual mills.

This ball end mill is used in precision machining operations where contoured surfaces, 3D profiling, and finish passes are required. The 0.533-inch length of cut and 1.000-inch neck length make it well-suited for semi-deep cavity work and profiling operations. The 5/8-inch shank diameter provides rigid tool holding in standard collets and end mill holders. It is a single-end tool intended for professional shop and production machining environments.

Key Features

• 0.625-inch ball nose diameter for contour and 3D surface milling
• AlTiCrN coating for improved heat resistance and extended tool life in high-speed applications
• 4-flute design balances chip evacuation with surface finish quality
• Variable index geometry reduces chatter and harmonic vibration
• Solid carbide construction for rigidity and wear resistance
• Single-end design with 0.533-inch length of cut and 1.000-inch neck length

Compatibility

Designed as a replacement-style solid carbide ball end mill compatible with standard 5/8-inch end mill holders, collet chucks, and tool holders used on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully into the holder and torque the set screw or collet nut to the tool holder specification. Inspect the cutting edges for chips or damage before each use.
