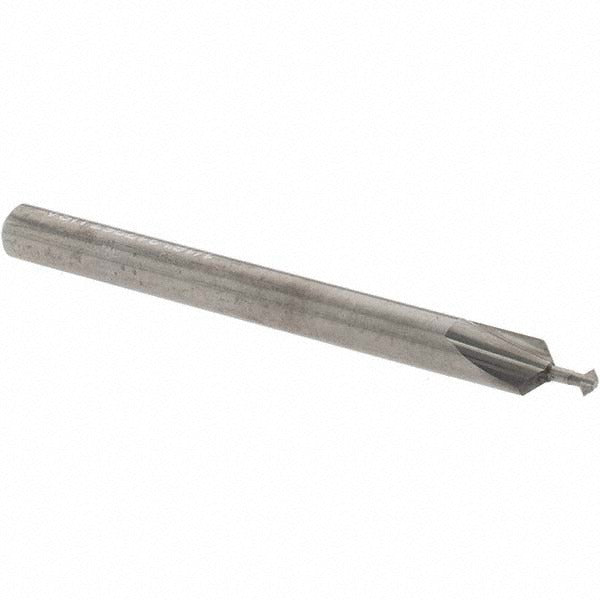

Accupro 38493334 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 38493334 is a double angle milling cutter ground to a 90-degree included angle and machined from solid carbide for use in precision metalworking and toolroom applications. The cutter measures 1/16 inch in cut diameter with a 1/32 inch cutting width, making it suited for fine angular groove work, chamfering, and V-slot cutting on small workpieces. The 1/8 inch shank connects directly to compatible collet-style tool holders. At 1-1/2 inches overall length with a 1/32 inch neck diameter, this two-flute uncoated cutter delivers clean geometry in tight-clearance cuts. Machinists and tool grinders are the primary installers and users of this tool.

This cutter is designed for use in CNC machining centers, manual mills, and tool and die work where small-diameter angular profiling is required. It is particularly suited to cutting V-grooves, angular seats, and chamfers on ferrous and non-ferrous metals, as well as engineered plastics. The solid carbide construction supports use at higher spindle speeds than high-speed steel equivalents. Its compact geometry makes it appropriate for micro-detail work on precision components where a larger cutter cannot reach.

Key Features

• 90-degree included angle for precise V-groove and chamfer cutting
• Solid carbide construction for rigidity and wear resistance at elevated speeds
• 1/16 inch cut diameter suited to fine detail and small-scale angular work
• 1/32 inch cutting width for narrow slot and groove applications
• Two-flute design balances chip evacuation with edge strength on small-diameter cutters
• Uncoated finish suitable for use with standard cutting fluids across a range of workpiece materials

Compatibility

Designed as an OEM-style double angle milling cutter for use in collet-style tool holders accepting a 1/8 inch shank diameter, as found on standard CNC and manual milling machines.

Installation Notes

Installation and use of this cutter should be performed by qualified machinists familiar with small-diameter carbide tooling. Ensure the spindle is fully stopped and locked out before inserting or removing the cutter from the collet holder. Carbide tooling is brittle - avoid lateral shock loading, over-tightening the collet, or using the cutter for plunge cuts outside its rated geometry. Verify runout at the shank before beginning a cut to avoid premature chipping of the cutting edges.
