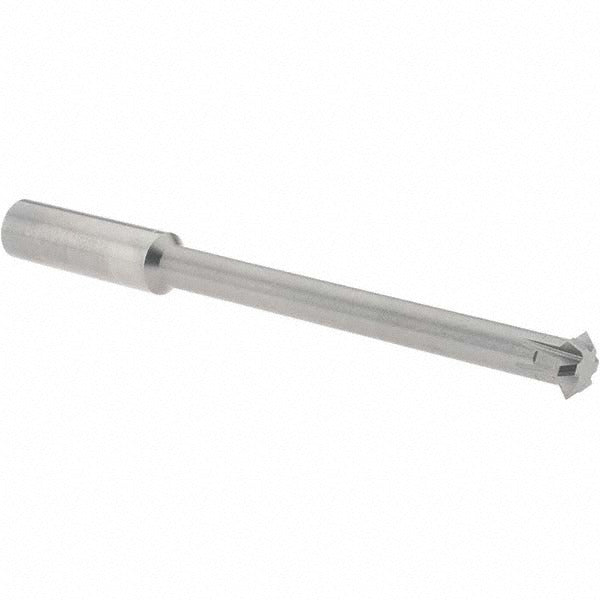

Accupro 38361770 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 38361770 is a solid carbide double angle milling cutter designed for precision V-groove, chamfer, and angular milling operations on machining centers and manual mills. It features a 90-degree included angle, a 3/8 inch cutting diameter, and a 1/8 inch cutting width, making it well suited for tight-tolerance work where edge sharpness and dimensional consistency matter. The uncoated solid carbide construction provides rigidity and wear resistance on ferrous and non-ferrous materials. With 6 teeth and a 4 inch overall length, this cutter delivers smooth finishes in both roughing and finishing passes when run at appropriate speeds and feeds.

This cutter fits standard 3/8 inch shank tool holders and is used by machinists and tool-and-die professionals in CNC machining centers, vertical mills, and manual knee mills. The 1/4 inch neck diameter and 2-3/4 inch neck length allow access to recessed or stepped workpiece features that larger-diameter tooling cannot reach. It is appropriate for production and job-shop environments requiring consistent angular profile cutting without the cost of coated tooling where the application does not demand it.

Key Features

• 90-degree included angle for V-groove and chamfer milling
• Solid carbide construction for rigidity and wear resistance
• Uncoated finish suitable for a wide range of workpiece materials
• 6-tooth design balances chip clearance and surface finish quality
• 1/4 inch neck diameter and 2-3/4 inch neck length for reach into recessed features
• Standard 3/8 inch shank for compatibility with common collet and end mill holders

Compatibility

Designed for use in standard 3/8 inch shank collet chucks and end mill holders on CNC machining centers and manual vertical mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's tooling guidelines. Ensure the spindle is fully stopped and the machine is in a safe state before inserting or removing the cutter from the tool holder. Verify collet size matches the 3/8 inch shank diameter and that the cutter is seated to the appropriate gauge length before tightening. Inspect the cutting edges for chips or damage before each use, as solid carbide tooling is brittle and should not be used if edge integrity is compromised.
