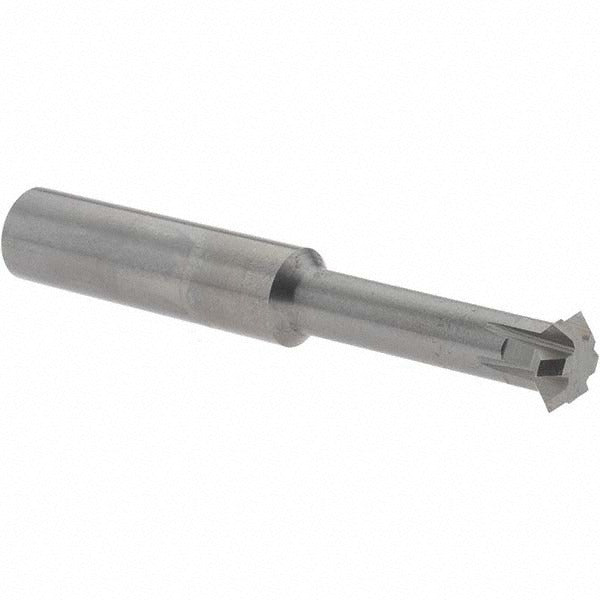

Accupro 38335782 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 38335782 is a double angle milling cutter designed for precision grooving, chamfering, and angular milling operations on CNC and manual milling machines. Built from solid carbide, this cutter delivers the rigidity and wear resistance required for demanding cutting applications in steel, aluminum, and other machinable materials. Key specs include a 90-degree included angle, a 3/8-inch cutting diameter, a 1/8-inch cutting width, and a 3/8-inch shank diameter for direct collet or end mill holder mounting. With 6 teeth and an uncoated finish, it suits applications where coolant or post-coat finishing is managed at the machine level.

This cutter is used in machine shops and manufacturing environments for producing V-slots, dovetail preparations, and symmetrical angular profiles. The 2-1/2-inch overall length and 1/4-inch neck diameter provide adequate reach into shallow pockets and workpiece features while maintaining tool stiffness. The 1-1/8-inch neck length allows clearance for typical fixturing setups. It is installed and operated by machinists and tooling specialists working with standard milling machine spindles and collet systems.

Key Features

• 90-degree included angle for symmetric V-groove and chamfer profiles
• Solid carbide construction for high rigidity and wear resistance
• 6-tooth design balances chip load per tooth with cut finish quality
• 3/8-inch shank diameter compatible with standard collets and end mill holders
• Uncoated finish suitable for applications with applied cutting fluid or post-processing
• Compact 3/8-inch cutting diameter for detail and small-feature work

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide double angle milling cutter for standard milling machine spindles accepting a 3/8-inch shank.

Installation Notes

Installation is performed by a qualified machinist using a calibrated collet or end mill holder torqued per the toolholder manufacturer specifications. Ensure the spindle and machine are fully powered down and locked out before changing or seating the cutter. Inspect the shank and collet bore for chips or contamination before insertion. Follow shop-standard speeds and feeds for solid carbide tooling based on workpiece material.
