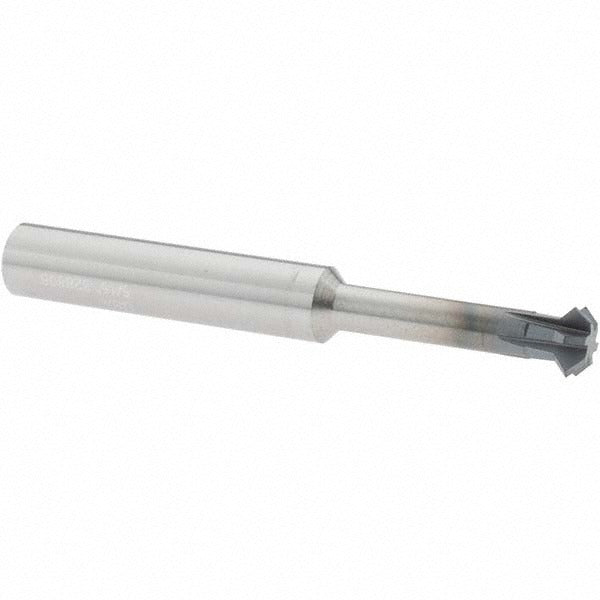

Accupro 38154654 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 38154654 is a double angle milling cutter designed for precision milling of V-grooves, chamfers, and angular slots in metalworking applications. Built from solid carbide and finished with an AlTiN (aluminum titanium nitride) coating, this cutter delivers strong wear resistance and thermal stability at elevated cutting speeds. It features a 90-degree included angle, a 5/16-inch cut diameter, and a 1/8-inch cutting width. The 5/16-inch shank connects directly to standard collets and tool holders. With 6 teeth and a 2.5-inch overall length, it is suited for CNC machining centers and manual milling machines operated by machinists and tool-and-die professionals.

This cutter is used in shop environments where accurate angular features must be milled into steel, aluminum, stainless, and other metals. The AlTiN coating makes it a strong choice for dry or semi-dry cutting in harder materials. The 3/16-inch neck diameter and 1-inch neck length provide clearance for reaching into recessed features without interference. Typical applications include deburring, chamfering, and seat milling in production and tool room settings.

Key Features

• 90-degree included angle for precise V-groove and chamfer milling
• Solid carbide construction for rigidity and long tool life
• AlTiN coating improves heat resistance and reduces tool wear in hard materials
• 6-tooth configuration for balanced chip load and smooth finish
• 3/16-inch neck diameter with 1-inch neck length for reach into tight features
• Shank connection type for direct collet or end mill holder mounting

Compatibility

Designed as an OEM-style replacement cutter compatible with standard 5/16-inch collets and end mill holders used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling change procedures. Ensure the spindle is fully stopped and the machine is powered down before changing cutters. Secure the shank firmly in a matched collet or tool holder to the appropriate retention torque per the holder manufacturer's specifications. Verify runout with a dial indicator before beginning the cut.
