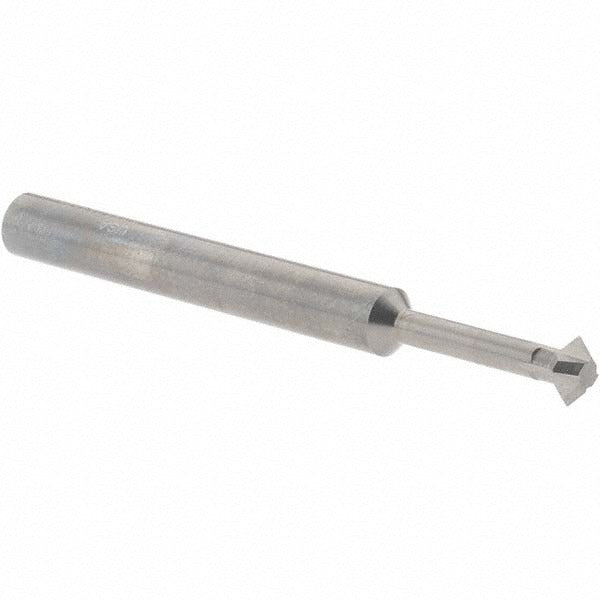

Accupro 38083051 Double Angle Milling Cutter 90 Deg Carbide

Product Description

The ACCUPRO 38083051 is a double angle milling cutter designed for precise angular slot and chamfer milling operations in metalworking applications. Built from solid carbide, it delivers the rigidity and wear resistance required for consistent performance in both ferrous and non-ferrous materials. The cutter features a 90-degree included angle, a 3/16-inch cut diameter, a 0.093-inch cutting width, and 4 teeth, making it well suited for tight-tolerance work on manual or CNC milling equipment. The uncoated carbide construction is appropriate for applications where a coating is not required or where regrinding is anticipated.

This cutter is used in machine shops, tool rooms, and production environments where double-angle slots, V-grooves, or chamfers must be machined to precise angular geometry. The 3/16-inch shank diameter allows it to fit standard collets and end mill holders found on benchtop and full-size vertical milling machines. With a 3/32-inch neck diameter and 0.593-inch neck length, it reaches into recessed features without shank interference. Installation and use require a competent machinist or CNC programmer familiar with carbide tooling feeds and speeds.

Key Features

• 90-degree included angle for V-groove and double-angle slot milling
• Solid carbide construction for rigidity and extended tool life
• 0.093-inch cutting width with 4-tooth configuration for clean chip evacuation
• 3/32-inch neck diameter and 0.593-inch neck length for reach into recessed features
• Uncoated finish suitable for regrinding or applications that do not require coating
• 3/16-inch shank fits standard collets and end mill holders

Compatibility

Designed as an OEM-style solid carbide double angle milling cutter for use in standard 3/16-inch collets and end mill holders on vertical milling machines and CNC machining centers.

Installation Notes

Installation and operation should be performed by a qualified machinist or CNC operator familiar with carbide end mill tooling. Secure the shank fully in a clean, undamaged collet or end mill holder and verify runout before cutting. Carbide tooling is brittle — avoid impact or side loading beyond the tool's rated cutting geometry. Always follow the machine manufacturer's spindle speed and feed guidelines appropriate to the workpiece material and cutter diameter.
