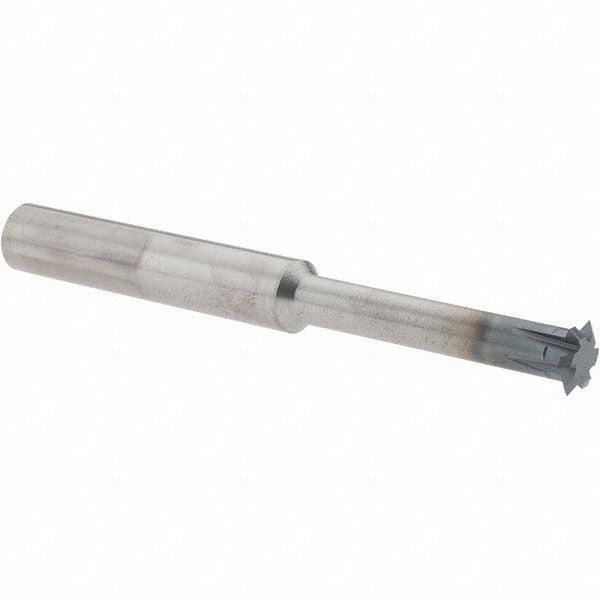

Accupro 38034757 Double Angle Milling Cutter 60 Deg 3/8 in

Product Description

The ACCUPRO 38034757 is a double angle milling cutter designed for precise angular groove milling, chamfering, and dovetail slot operations in metalworking applications. Built from solid carbide with an AlTiN (aluminum titanium nitride) coating, this cutter delivers extended tool life and thermal resistance at elevated cutting speeds. It features a 60-degree included angle, a 3/8-inch cut diameter, and a 0.072-inch cutting width. With 6 teeth and a 3/8-inch shank, it mounts directly into standard collet chucks or milling tool holders. Machinists and tool-and-die technicians rely on this geometry for consistent, repeatable angular profiles on steel, stainless, and hardened alloy workpieces.

This cutter is suited for use on CNC vertical machining centers and manual knee mills where angular slot and chamfer operations are required. The 1/4-inch neck diameter and 1.572-inch neck length provide reach into recessed features without excessive deflection. The 3.5-inch overall length accommodates standard tool-length offsets in most CNC setups. It is appropriate for production and prototype environments in aerospace, mold and die, and general precision machining shops.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous and hardened materials
• AlTiN coating improves heat resistance and extends tool life at high cutting speeds
• 60-degree included angle for standard chamfers, angular grooves, and dovetail profiles
• 6-tooth design balances chip evacuation with surface finish quality
• 1/4-inch neck diameter allows access to recessed or stepped features
• 3/8-inch shank diameter fits common collet and end mill holder sizes

Compatibility

Designed as an OEM-style replacement double angle milling cutter compatible with standard 3/8-inch collet chucks and milling tool holders used on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Ensure the machine spindle is fully stopped and the control is in an e-stop or tool-change state before inserting or removing the cutter. Inspect the cutting edges and coating for chips or wear before each use, as carbide tooling can fracture if run with existing edge damage.
