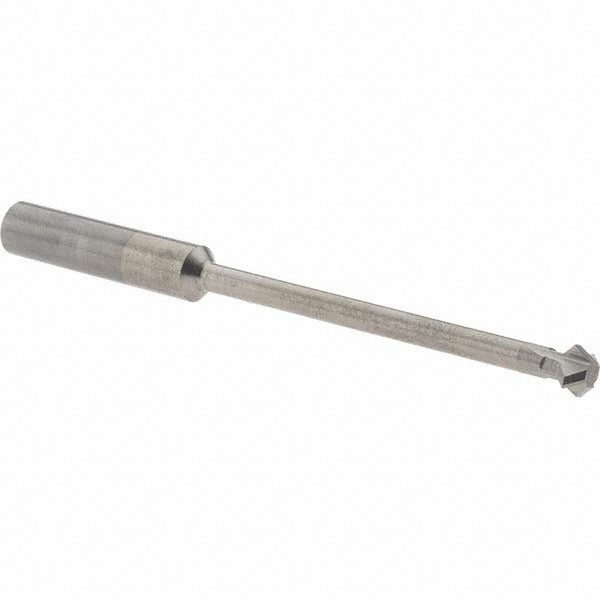

Accupro 37677168 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 37677168 is a double angle milling cutter designed for precision V-groove, chamfer, and angular milling operations on metalworking lathes and milling machines. Built from solid carbide, it delivers the hardness and wear resistance required for consistent performance in production and job-shop environments. The included angle is 90 degrees, the cutting diameter is 0.25 inches, and the cutting width is 0.125 inches. With a 0.25-inch shank diameter and a 3-inch overall length, this cutter mounts directly via shank connection. Four cutting teeth provide a balanced combination of surface finish quality and chip clearance. Installation and use are handled by machinists and tool-and-die professionals working with milling machine setups.

This cutter is suited for light-duty angular and chamfering work in CNC and manual milling applications. The 1/8-inch neck diameter and 1-7/8-inch neck length allow reach into moderate-depth features without interference. The uncoated solid carbide construction makes it a practical choice for dry or minimally lubricated cuts in ferrous and non-ferrous materials where a coated tool is not required. It is sold individually and is appropriate for both production runs and one-off precision machining tasks.

Key Features

• 90-degree included angle for V-groove and chamfer milling
• Solid carbide construction for high hardness and wear resistance
• Four teeth for balanced cutting action and surface finish
• Uncoated finish suitable for dry and light-lubrication milling
• Shank connection type for standard milling machine collet holders
• 1-7/8-inch neck length for reach into recessed features

Compatibility

Designed as an OEM-style replacement or direct-use double angle milling cutter for standard 1/4-inch shank collet holders on CNC and manual milling machines.

Installation Notes

Installation is performed by qualified machinists. Secure the shank in a properly sized collet or end mill holder and torque the collet nut according to the machine manufacturer specification. Inspect the cutting edges for chips or damage before each use. Ensure the spindle is fully stopped and the machine is powered down before changing or adjusting the cutter.
