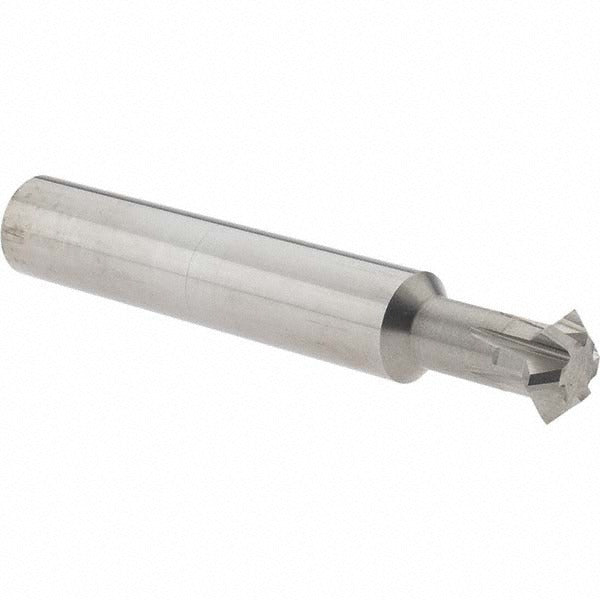

Accupro 35825546 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 35825546 is a double angle milling cutter designed for precise angular milling operations in metalworking applications. Built from solid carbide, it delivers the hardness and wear resistance required for cutting steel, cast iron, and non-ferrous materials. The cutter features a 90-degree included angle, a 7/16-inch cut diameter, and 0.157-inch cutting width, making it well-suited for forming V-grooves, chamfers, and angular profiles in tight tolerances. With 6 teeth and an uncoated finish, this tool is a reliable choice for machinists running manual mills or CNC machining centers where edge sharpness and dimensional accuracy are critical.

This cutter is used in precision machining environments including job shops, tool rooms, and production floors. It is designed for angular and double-angle milling operations where controlled chip load and consistent geometry are required. The shank diameter matches the cut diameter at 7/16 inch, allowing direct mounting into standard collet chucks or end mill holders. The 2.75-inch overall length and 9/32-inch neck diameter provide adequate reach for most groove and chamfer applications without excessive overhang.

Key Features

• Solid carbide construction for superior hardness and wear resistance
• 90-degree included angle for V-groove, chamfer, and angular milling
• 6-tooth configuration for balanced chip load and surface finish
• 0.157-inch cutting width for precise slot and groove dimensioning
• Uncoated finish suitable for use with or without cutting fluid
• 7/16-inch shank diameter for standard collet and end mill holder compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit tool for machining centers and manual milling machines accepting 7/16-inch shank diameter cutters in standard collet or end mill holder systems.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the shank fully into the collet or tool holder to the recommended gauge-line depth before tightening. Power down and lock out the machine spindle before changing or inspecting cutting tools. Inspect the cutting edges for chipping before each use, as carbide tools are brittle and susceptible to edge damage from improper handling or interrupted cuts.
