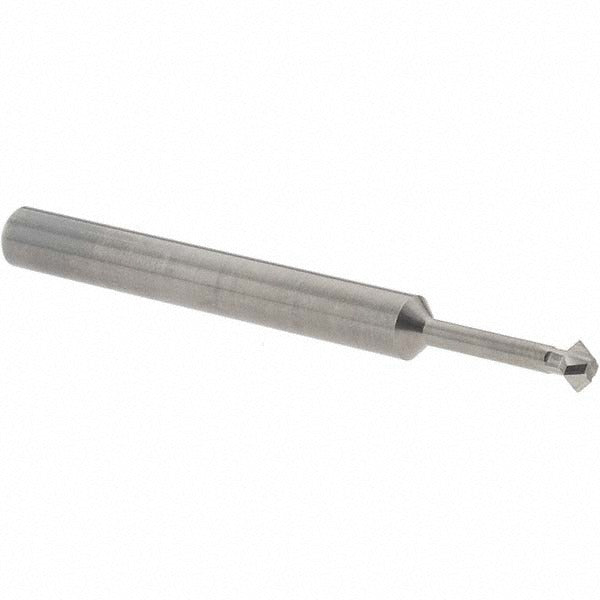

Accupro 32652141 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 32652141 is a double angle milling cutter designed for precision V-groove, chamfer, and angular milling operations on CNC and manual milling machines. Built from solid carbide, it delivers the rigidity and wear resistance required for cutting ferrous and non-ferrous materials. The included angle measures 90 degrees, the cut diameter is 5/32 inches, and the overall length is 2 inches. With 4 cutting teeth and an uncoated finish, this tool is suited for shops that prefer to apply their own coatings or require a bare carbide edge for specific material applications. Machinists and toolroom technicians are the primary installers of this cutter type.

This double angle milling cutter is used in precision machining environments including job shops, production floors, and toolrooms. It is well-suited for cutting angular grooves, chamfers, and dovetail features on workpieces held in a milling vise or fixture. The 3/16 inch shank diameter makes it compatible with standard collet systems in that size range. The 5/64 inch neck diameter and 0.515 inch neck length allow access in tighter clearance zones. Applications include die and mold work, fixture manufacturing, and general precision part production.

Key Features

• Solid carbide construction for rigidity and extended tool life
• 90-degree included angle for precise chamfer and V-groove cutting
• 4 cutting teeth for efficient chip removal in angular milling
• 5/32 inch cut diameter with 5/64 inch cut width for fine, controlled stock removal
• Uncoated finish compatible with a wide range of machining fluids and coating upgrades
• 3/16 inch shank for use with standard collet and end mill holders

Compatibility

Designed for use with standard milling machine collet systems accepting a 3/16 inch shank diameter, including ER-style and precision collet chucks commonly used on vertical milling centers and manual knee mills.

Installation Notes

Installation of this cutter should be performed by a qualified machinist. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Follow shop-standard speeds and feeds for solid carbide end mills based on the workpiece material being cut.
