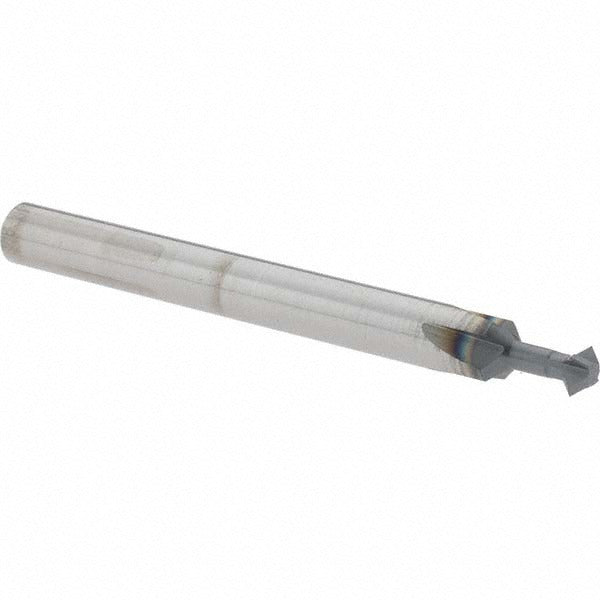

Accupro 31576119 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 31576119 is a double angle milling cutter designed for precision V-groove, chamfer, and angular milling operations on CNC machining centers and manual mills. Built from solid carbide, it delivers the rigidity and wear resistance required for ferrous and non-ferrous materials. The 90-degree included angle, 5/32-inch cutting diameter, and 5/64-inch cutting width make it suited for tight-tolerance angular cuts. An AlTiN coating provides high-temperature oxidation resistance, extending tool life in dry or semi-dry cutting conditions. Four cutting teeth provide a balance of chip clearance and surface finish in light-to-medium material removal applications.

This cutter is used in tool and die, mold making, aerospace component finishing, and general precision machining shops. Its 3/16-inch shank connects directly to standard collet chucks or end mill holders. The compact overall length of 2 inches and 15/64-inch neck length make it effective in confined workpiece geometries where clearance is limited. It is appropriate for both production runs and prototype work where angular feature accuracy is critical.

Key Features

• 90-degree included angle for V-groove and chamfer milling
• Solid carbide construction for rigidity and extended tool life
• AlTiN coating for high-temperature and oxidation resistance in dry cutting
• 4-flute design balances chip evacuation with finish quality
• 3/16-inch shank fits standard collet and end mill holder systems
• Compact 2-inch overall length suits tight-clearance applications

Compatibility

Designed for use in standard collet chucks and end mill holders accepting a 3/16-inch shank diameter, as found on CNC machining centers and manual vertical mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter. Seat the shank fully into the collet or holder and torque the retention mechanism per the toolholder manufacturer specification. Inspect the cutting edges for chips or coating damage before each use.
