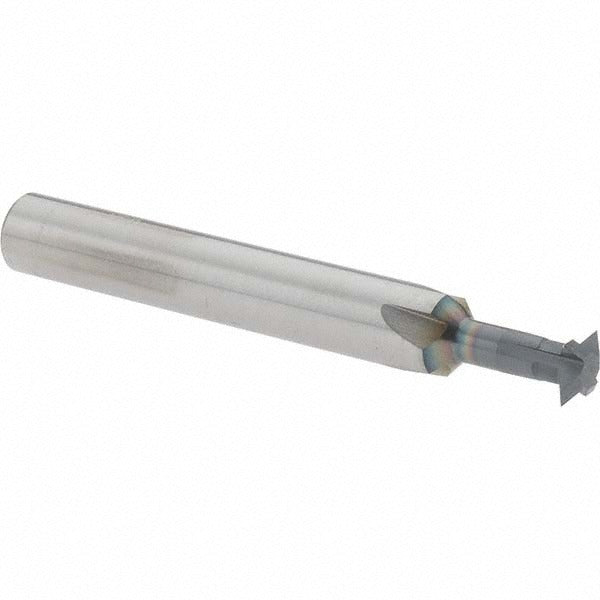

Accupro 31567852 Double Angle Milling Cutter 60 Degree

Product Description

The ACCUPRO 31567852 is a solid carbide double angle milling cutter designed for precision milling of V-grooves, chamfers, and angular profiles on metallic workpieces. It carries a 60-degree included angle, a 1/4-inch cut diameter, and a 0.072-inch cutting width. The AlTiN coating provides heat resistance and extended tool life in ferrous and hardened materials. With a 1/4-inch shank diameter and a 2-inch overall length, this cutter is sized for use in CNC machining centers and manual mills. It is installed and operated by machinists and tooling technicians working in precision metalworking environments.

This cutter is suited for light-duty angular milling operations in production and job-shop settings. Its 1/8-inch neck diameter and 0.384-inch neck length allow access in shallow pockets and contoured workpieces. The 4-flute geometry supports consistent chip evacuation and surface finish on steel, stainless, and similar materials. Typical applications include dovetail preparation, angular edge breaking, and form milling where a defined included angle is required. It fits standard 1/4-inch collet toolholders common to CNC mills and manual knee mills.

Key Features

• 60-degree included angle for precise angular milling and V-groove profiling
• Solid carbide construction for rigidity and wear resistance
• AlTiN coating extends tool life in high-temperature cutting environments
• 4-flute design promotes smooth chip evacuation and consistent surface finish
• 1/8-inch neck diameter enables access in confined pockets and contoured parts
• 1/4-inch shank fits standard collet toolholders without adapters

Compatibility

Designed for use in CNC machining centers and manual milling machines equipped with standard 1/4-inch collet toolholders.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Secure the shank in a clean, undamaged collet and torque the toolholder to the machine manufacturer's specification. Verify runout before beginning a cut. Follow all machine guarding and PPE requirements per applicable shop safety standards.
