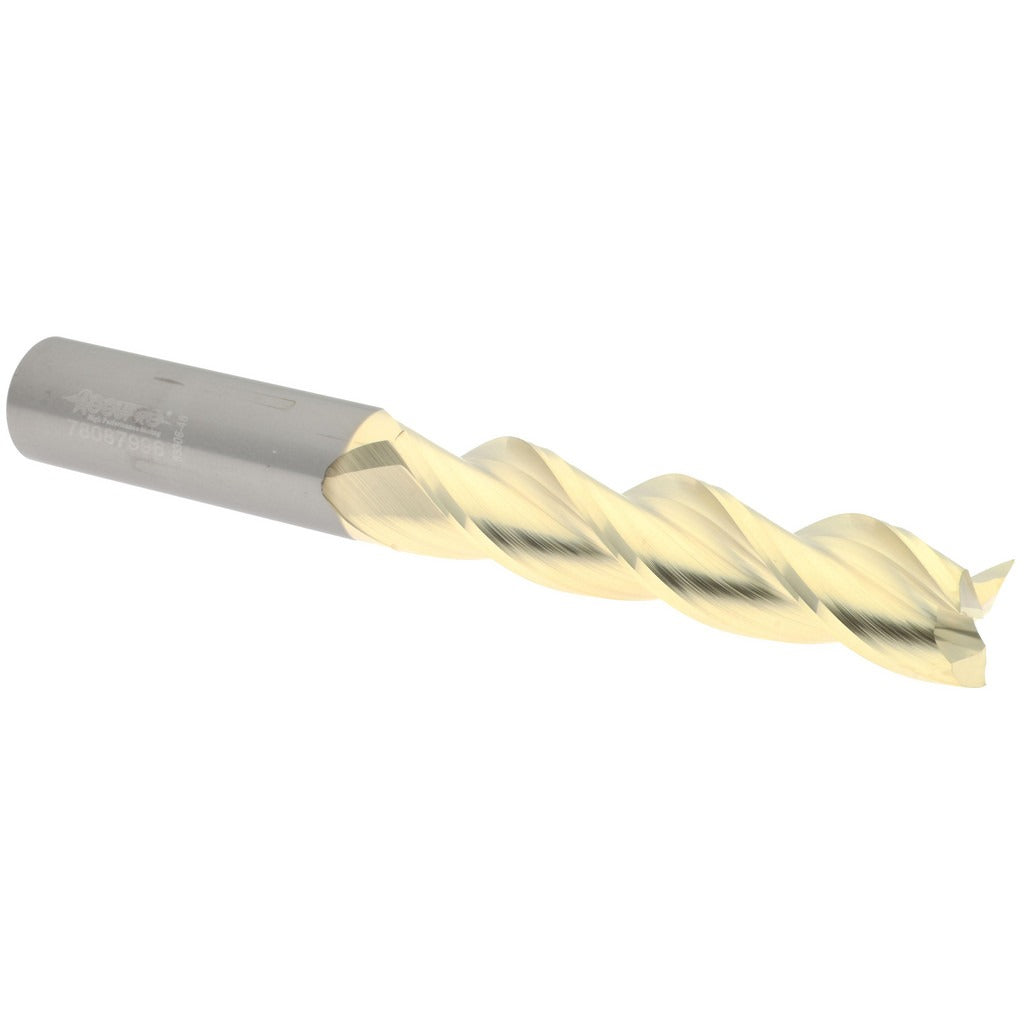

Accupro 314954 Square End Mill 5/8 in 3 Flute Solid Carbide Zrn

Product Description

The ACCUPRO 314954 is a solid carbide square end mill designed for precision milling operations in metal cutting and machining applications. It features a 5/8 inch cutting diameter, a 2-3/4 inch length of cut, and a 5 inch overall length. The 3-flute, right-hand spiral design with a 37-degree helix angle promotes efficient chip evacuation and smooth cutting action. A ZrN (zirconium nitride) coating adds surface hardness and heat resistance, extending tool life in demanding materials. The micrograin carbide substrate provides rigidity and wear resistance. This end mill is centercutting, allowing plunge entry without a pilot hole. It is installed and operated by machinists and CNC programmers in job shop and production environments.

This end mill is suited for milling steel, stainless steel, cast iron, and similar ferrous materials in both conventional and CNC machining centers. The right-hand cut and right-hand flute configuration fits standard vertical and horizontal milling setups. The 5/8 inch shank diameter mounts directly into standard collets and end mill holders. Applications include slotting, profiling, and peripheral milling where a long length of cut is required.

Key Features

• Solid micrograin carbide construction for rigidity and extended tool life
• ZrN coating for increased surface hardness and thermal resistance
• 3-flute, 37-degree helix spiral flute for efficient chip removal
• Centercutting geometry allows direct plunge milling
• Right-hand cut and right-hand flute for standard milling machine compatibility
• 2-3/4 inch length of cut supports deep slot and profile work

Compatibility

Designed for use in standard CNC and manual milling machines accepting a 5/8 inch shank diameter via collet, end mill holder, or equivalent toolholding system.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully powered off and locked out before changing tooling. Seat the shank fully and evenly in the holder to the recommended engagement depth and torque the retention hardware per the toolholder manufacturer specifications. Confirm runout with a dial indicator before beginning a cut, and select feeds and speeds appropriate for the workpiece material and depth of cut.
