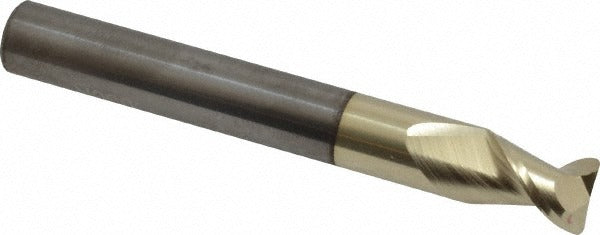

Accupro 313102 Corner Radius End Mill 5/16 in Solid Carbide

Product Description

The ACCUPRO 313102 is a solid carbide corner radius end mill designed for precision milling of metals and hard materials in CNC machining and manual mill applications. It features a 5/16 inch diameter, a 7/16 inch length of cut, and a 2-1/2 inch overall length, with a 0.030 inch corner radius that blends the floor and wall of a milled pocket while reducing stress concentrations. The ZrN (zirconium nitride) coating improves surface hardness and heat resistance, extending tool life in ferrous and non-ferrous materials. The 2-flute, 45-degree helix geometry promotes efficient chip evacuation. This end mill is installed and used by machinists, toolmakers, and CNC operators in job shop and production environments.

The 313102 is suited for finishing passes, slot milling, and profiling operations where a radiused corner is required at the base of a feature. The single-end, centercutting design allows plunge entry as well as conventional side milling. The regular-length flute and standard shank diameter make it compatible with common ER and straight-bore collet systems. Applications include die and mold work, fixture machining, and precision part production in steel, stainless, aluminum, and similar materials.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention in demanding cuts
• ZrN coating increases surface hardness and reduces heat buildup at the cutting edge
• 0.030 inch corner radius blends floor-to-wall transitions and reduces stress risers in machined features
• 45-degree helix angle promotes smooth chip flow and reduces cutting forces
• Centercutting design allows direct plunge entry without a pre-drilled start hole
• Right-hand cut and right-hand flute direction for standard spindle operation

Compatibility

Designed as an OEM-style solid carbide corner radius end mill for use in CNC machining centers and manual mills accepting a 5/16 inch straight shank with standard collet or end mill holder systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully within the collet or tool holder to the manufacturer-recommended engagement depth, and torque the collet nut according to the holder specification. Verify runout with a dial indicator before cutting to protect edge integrity. Always confirm spindle direction is set to right-hand rotation before engaging the cut.
