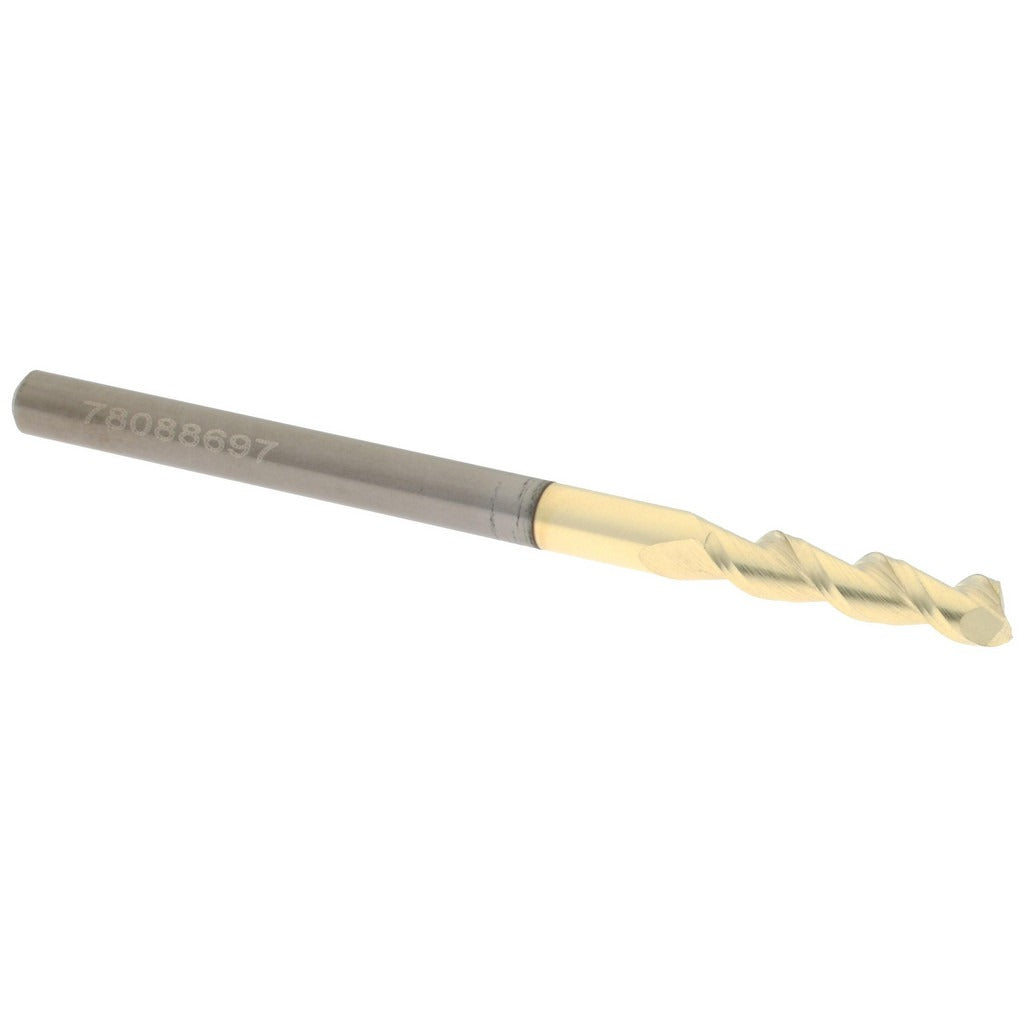

Accupro 312928 Square End Mill 1/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 312928 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineering plastics. It features a 1/8 inch cutting diameter, a 1/2 inch length of cut, and a 2 inch overall length with a matching 1/8 inch shank diameter. The two-flute, right-hand spiral design incorporates a 45-degree helix angle and a ZrN (zirconium nitride) coating that improves wear resistance and reduces friction at the cutting edge. Micrograin carbide construction supports tighter tolerances and longer tool life compared to standard carbide grades. This end mill is centercutting, meaning it can be plunged directly into workpiece material without a pre-drilled hole.

This end mill is suited for light-to-medium milling work in CNC machining centers, vertical mills, and toolroom applications. The 1/8 inch diameter makes it well matched for slot milling, profiling, and contouring in tight geometries or small-part work. The ZrN finish performs well in non-ferrous metals such as aluminum and copper alloys, as well as in plastics and composites. Its right-hand cut and right-hand flute orientation are standard for conventional CNC setups.

Key Features

• Solid micrograin carbide construction for tight tolerances and extended tool life
• ZrN coating reduces friction and improves wear resistance in non-ferrous and composite materials
• 45-degree helix angle promotes smooth chip evacuation and reduced cutting forces
• Centercutting geometry allows direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute configuration for standard CNC spindle use
• Mill diameter tolerance of +0.000 / -0.002 inches for consistent fit in precision work

Compatibility

Designed as a standard 1/8 inch shank square end mill compatible with collet-style and end mill holders on CNC machining centers and manual vertical mills accepting 1/8 inch shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Seat the shank fully into the collet or holder to the recommended engagement depth and torque the retention mechanism per the machine manufacturer's specification. Verify runout with a dial indicator after installation before beginning a cut.
