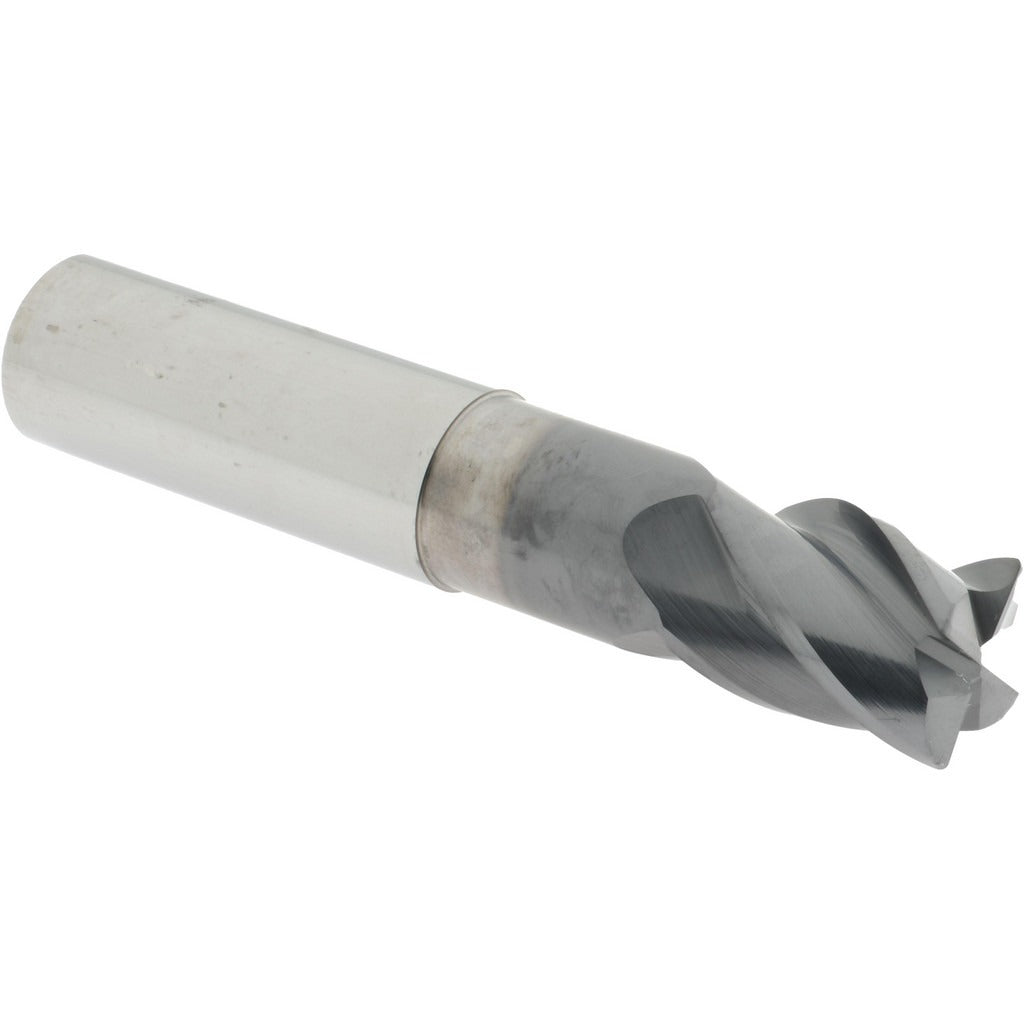

Accupro 310999 Corner Radius End Mill 3/4 in Carbide

Product Description

The ACCUPRO 310999 is a solid carbide corner radius end mill designed for high-performance milling in demanding machining environments. Built to Series HS standards, it features a 3/4 inch diameter, a 1 inch length of cut, and a 4 inch overall length. The 0.030 inch corner radius reduces stress concentrations at the cutting edge, extending tool life in aggressive applications. An AlCrTiN coating provides heat and oxidation resistance for dry or high-speed cutting. Four flutes, a 38-degree helix, and a variable index geometry work together to reduce chatter and improve surface finish. This end mill is centercutting and suited for plunge, slot, and profile operations run by machinists and tool-and-die professionals.

This end mill is intended for use in CNC machining centers and manual mills where corner radius profiling and extended-reach operations are required. The 2 inch reach length and reduced neck diameter of 0.712 inches make it well-suited for deep-pocket and cavity work where tool clearance is critical. The right-hand flute direction and right-hand cutting orientation are standard for conventional CNC setups. Typical materials include alloy steels, stainless steels, titanium, and other hard-to-machine alloys where the AlCrTiN coating provides a thermal and wear-resistance advantage.

Key Features

• AlCrTiN coating for high-temperature and wear resistance in hard-material applications
• 0.030 inch corner radius reduces cutting-edge chipping and extends tool life
• Variable index flute spacing reduces harmonic chatter during high-feed passes
• 2 inch reach length with reduced neck diameter for deep-pocket and cavity access
• Centercutting design enables direct plunge entry without a pilot hole
• Micrograin solid carbide substrate for rigidity and edge retention

Compatibility

Designed as a direct-fit replacement or upgrade end mill for CNC machining centers and manual knee mills accepting a 3/4 inch shank. Compatible with standard ER, side-lock, and shrink-fit toolholders sized for a 3/4 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer torque and runout specifications. Ensure the machine spindle is fully stopped and locked out before loading or unloading the tool. Verify runout at the cutting edge does not exceed the tolerance specified for the operation before beginning a cut. Consult the toolholder manufacturer guidelines for proper pull-out force when using side-lock or collet-style holders with extended-reach tools.
