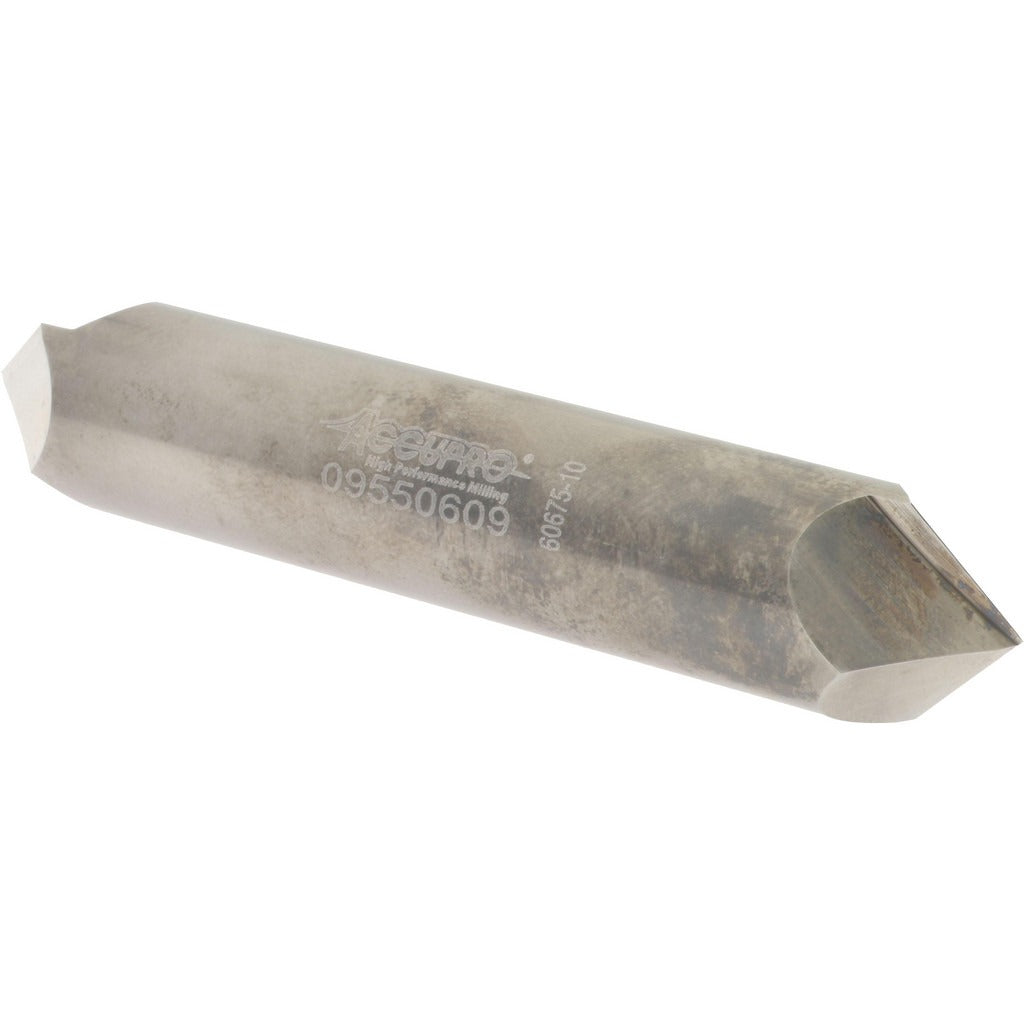

Accupro 2500245 Chamfer Mill 3/4 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500245 is a solid carbide chamfer mill designed for precision chamfering operations on metallic and composite workpieces. Built with a 3/4-inch cutter head diameter and a 90-degree included angle, it cuts clean, consistent chamfers in a single pass. The double-end configuration and right-hand cutting direction make it well-suited for high-efficiency production environments. At 4 inches overall length with a 3/4-inch shank diameter and a bright, uncoated finish, this tool is compatible with standard CNC and manual milling setups. Machinists and tool-and-die professionals select this grade for its rigidity and edge retention in ferrous and non-ferrous applications.

The 2500245 is used in machine shops, production facilities, and job shops for deburring edges, creating lead-in chamfers, and breaking sharp corners on drilled, bored, or milled features. Its two-flute geometry balances chip evacuation with surface finish quality, making it practical for both roughing chamfers and finish passes. The solid carbide construction handles interrupted cuts and harder workpiece materials where high-speed steel tooling would wear prematurely.

Key Features

• 90-degree included angle for standard chamfering and countersinking applications
• Solid carbide construction for superior rigidity and extended tool life
• Double-end design maximizes usable cutting edges per tool
• Bright, uncoated finish allows direct inspection of cutting edge condition
• Right-hand cutting direction compatible with conventional spindle rotation
• 3/4-inch shank diameter fits standard collet and end mill holders

Compatibility

Designed as an OEM-style replacement and standard-production chamfer mill for use in CNC machining centers and manual mills accepting a 3/4-inch shank end mill holder or collet.

Installation Notes

Installation is performed by qualified machinists. Secure the shank in a clean, properly sized collet or end mill holder and torque the retention mechanism per the machine tool manufacturer specification. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Inspect the cutting edges for chips or wear before each use, as solid carbide is brittle and should not be used if edge damage is present.
