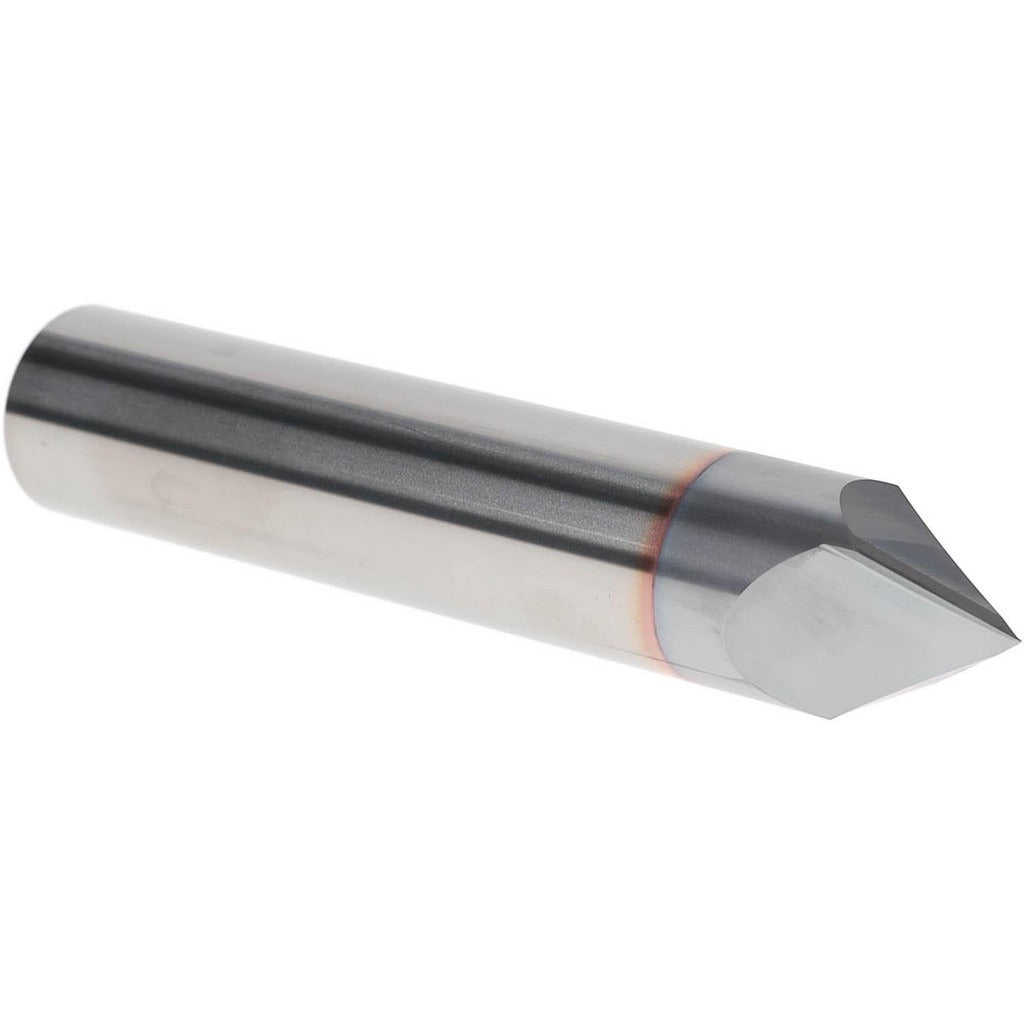

Accupro 2500187 Chamfer Mill 3/4 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500187 is a solid carbide chamfer mill designed for precise chamfering operations on a wide range of materials. With a 3/4-inch cutter head diameter and a 2-flute, right-hand cutting configuration, this single-end tool generates clean, consistent chamfered edges. The TiCN (Titanium Carbonitride) coating improves surface hardness and wear resistance, extending tool life in demanding cutting environments. At 4 inches overall length with a 3/4-inch shank diameter and an 82-degree included angle, it is sized for stable, accurate chamfer work on CNC machining centers and manual mills. Machinists and tooling specialists working in metalworking, fabrication, and production shops rely on this tool for high-repeatability edge preparation.

This chamfer mill is suited for chamfering, deburring, and edge-breaking operations on metal workpieces in both production and job-shop environments. The 82-degree included angle makes it appropriate for standard chamfer and countersink applications on steel, stainless, aluminum, and similar machinable materials. Its solid carbide construction and TiCN coating support use at elevated cutting speeds compared to HSS tooling, making it a practical choice for shops running tight tolerances and high feed rates.

Key Features

• 3/4-inch cutter head diameter for substantial material engagement
• Solid carbide construction for rigidity and wear resistance
• TiCN coating increases surface hardness and reduces tool wear
• 2-flute, right-hand cut geometry for efficient chip evacuation
• 82-degree included angle for standard chamfering applications
• 4-inch overall length with 3/4-inch shank for stable tool holding

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill compatible with standard 3/4-inch tool holders on CNC machining centers and conventional vertical milling machines.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Secure the 3/4-inch shank in a compatible collet or end mill holder and verify runout before cutting. Always power down and lock out the machine spindle before changing tooling. Follow shop safety protocols and machine manufacturer guidelines for maximum RPM and feed rates appropriate to the workpiece material.
