Accupro 2500166 Chamfer Mill 0.5 in 2 Flute Solid Carbide

Product Description

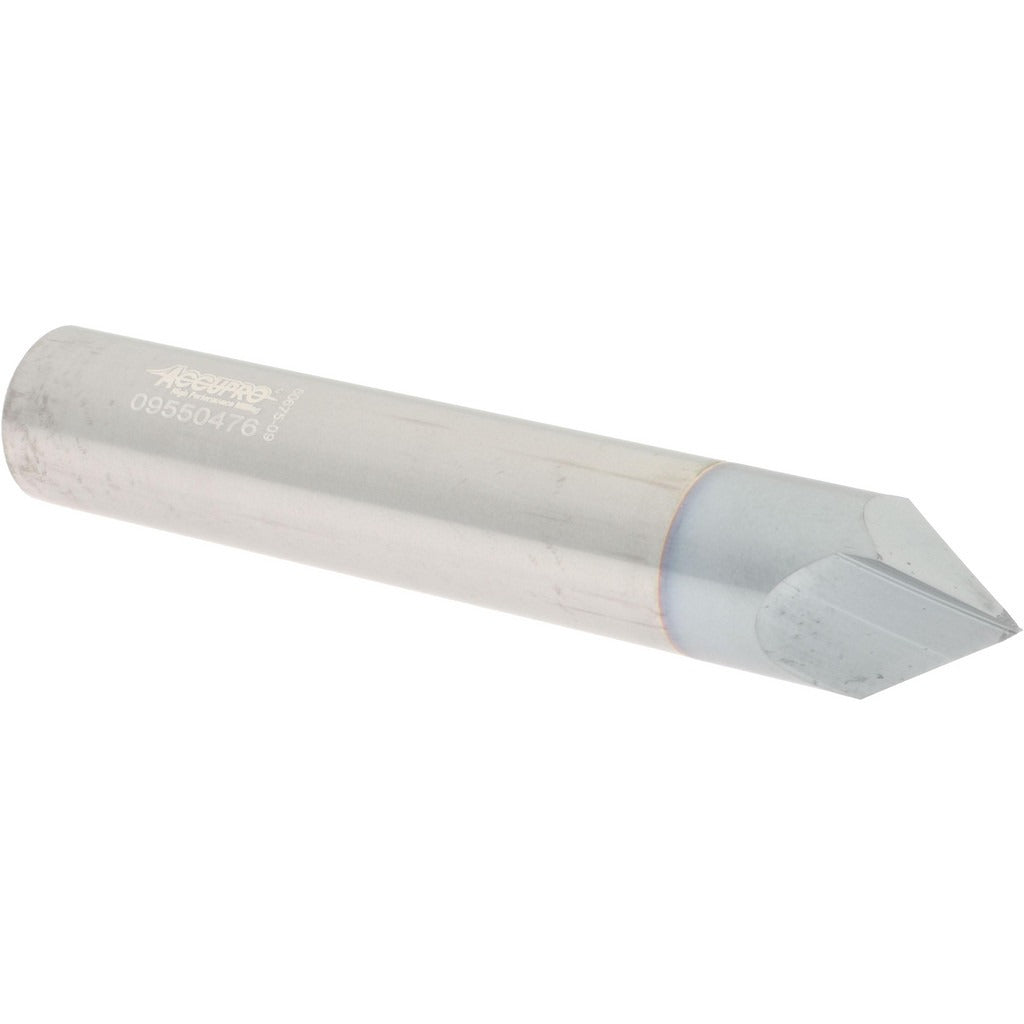

The ACCUPRO 2500166 is a solid carbide chamfer mill designed for precise chamfering operations on metal workpieces. It features a 0.5 inch cutter head diameter, a 3 inch overall length, and a 0.5 inch shank diameter. The tool is coated with TiCN (Titanium Carbonitride), which improves wear resistance and extends tool life in demanding cutting applications. With 2 flutes and a right-hand cutting direction, it is suited for controlled, clean chamfer profiles. This tool is a standard choice for machinists and tool-and-die professionals working on CNC machining centers and manual milling machines.

This chamfer mill is intended for chamfering operations on ferrous and non-ferrous metals in both production and job-shop environments. The single-end design and 82-degree included angle make it well matched for deburring edges, creating lead-in chamfers on drilled or tapped holes, and preparing mating surfaces for assembly. It is commonly used in general machining, aerospace part production, and precision fabrication where consistent chamfer geometry is required.

Key Features

• Solid carbide construction for rigidity and thermal resistance during high-speed cutting
• TiCN coating increases surface hardness and reduces friction at the cutting edge
• 82-degree included angle for standard chamfer profiles
• 2-flute geometry balances chip evacuation and edge strength
• Right-hand cutting direction compatible with standard CNC and manual mill spindles
• Single-end design simplifies tool setup and holder selection

Compatibility

Designed as a direct-fit replacement or new-install chamfer mill for standard 0.5 inch collet or end mill holders used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the 0.5 inch shank in a properly sized collet or end mill holder and torque the clamping mechanism per the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before mounting. Always bring the spindle to a complete stop and follow machine lockout procedures before changing tooling.
