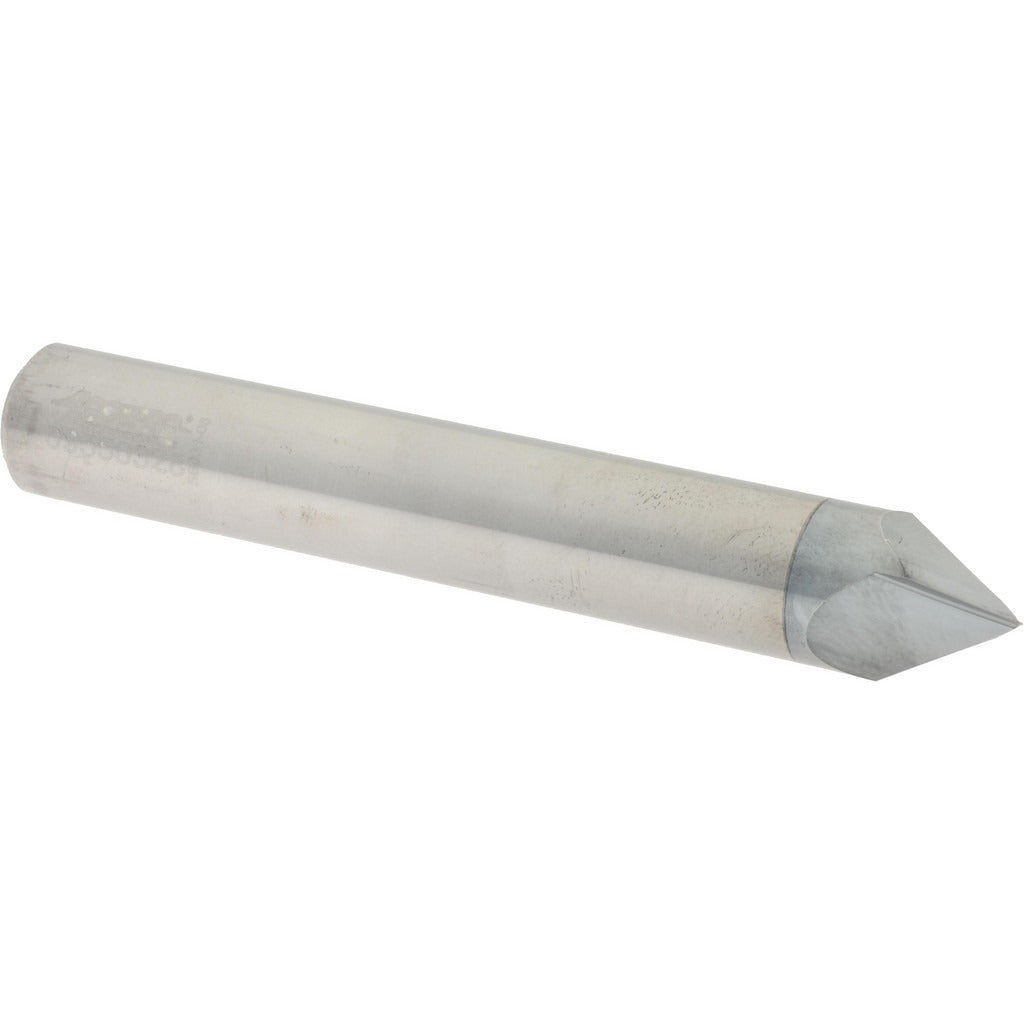

Accupro 2500135 Chamfer Mill 3/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500135 is a solid carbide chamfer mill designed for chamfering operations on a wide range of workpiece materials. It features a 3/8 inch cutter head diameter, a 2-flute right-hand cutting geometry, and a titanium carbonitride (TiCN) coating that improves wear resistance and reduces friction at the cutting edge. With an overall length of 2.5 inches and a matching 3/8 inch shank diameter, this tool mounts directly into standard end mill holders or collet chucks. It is installed and operated by machinists, tool and die makers, and CNC operators working in job shop and production environments.

This chamfer mill is suited for deburring edges, creating chamfers, and countersinking on ferrous and non-ferrous metals as well as some engineered plastics. The 82-degree included angle makes it appropriate for standard chamfer and deburring applications on milled, drilled, or turned features. It is a single-end tool intended for use in vertical machining centers, CNC mills, and manual milling machines where repeatable chamfer geometry is required.

Key Features

• Solid carbide construction provides rigidity and wear resistance at higher cutting speeds
• TiCN coating extends tool life and reduces built-up edge on ferrous materials
• 82-degree included angle for standard chamfering and deburring applications
• Right-hand cutting direction compatible with conventional spindle rotation
• 3/8 inch shank fits standard collet chucks and end mill holders without adapters
• 2-flute design promotes chip clearance in moderate feed-rate applications

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill for standard 3/8 inch collet or end mill holder setups on vertical machining centers and manual knee mills.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down or in an e-stop state before inserting or removing the tool. Use a calibrated torque wrench and the appropriate collet nut wrench when seating the shank in a collet chuck to avoid over-tightening. Verify runout with a dial indicator after tool installation before beginning a production cut.
