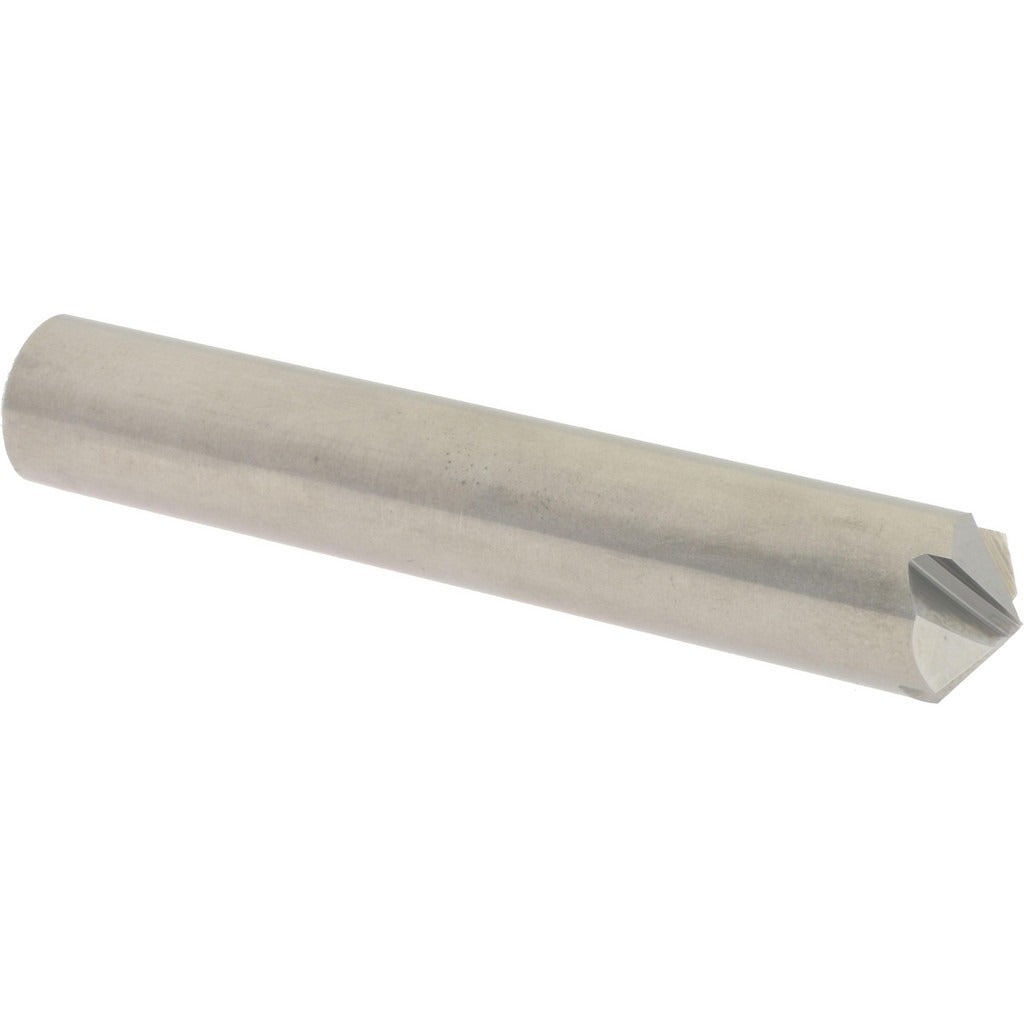

Accupro 2500098 Chamfer Mill 1/2 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 2500098 is a solid carbide chamfer mill designed for chamfering operations on a wide range of workpiece materials. With a 0.5-inch cutter head diameter and four flutes, this single-end tool delivers clean, consistent chamfer profiles in production and job-shop environments. The 120-degree included angle suits standard chamfer and deburring applications. Right-hand cutting direction and a bright, uncoated finish make it a straightforward, ready-to-use option for machinists running CNC machining centers or manual mills where chamfering precision matters.

This chamfer mill is suited for use on ferrous and non-ferrous metals, plastics, and composite materials in both production and prototype machining. The 0.5-inch shank diameter pairs with standard ER and end mill holders, making it compatible with typical spindle tooling setups. A 3-inch overall length provides adequate reach for most chamfering pass depths without excessive overhang. Machinists in aerospace, automotive, general manufacturing, and fabrication shops will find it applicable to edge preparation, countersinking bolt holes, and deburring intersecting bores.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 120-degree included angle for standard chamfer and deburring profiles
• Four flutes for improved surface finish and material removal rate
• Right-hand cutting direction for use with conventional CNC and manual milling setups
• Bright, uncoated finish suitable for use with or without coolant
• 0.5-inch shank diameter fits standard end mill holders and collet chucks

Compatibility

Designed as a direct-fit chamfer mill for use in standard 0.5-inch end mill holders, ER collet chucks, and similar toolholding systems on CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before installing or removing tooling. Seat the shank fully into the holder and torque the set screw or collet nut according to the toolholder manufacturer specifications. Verify runout with a dial indicator before beginning a production run to avoid premature tool wear or workpiece defects.
