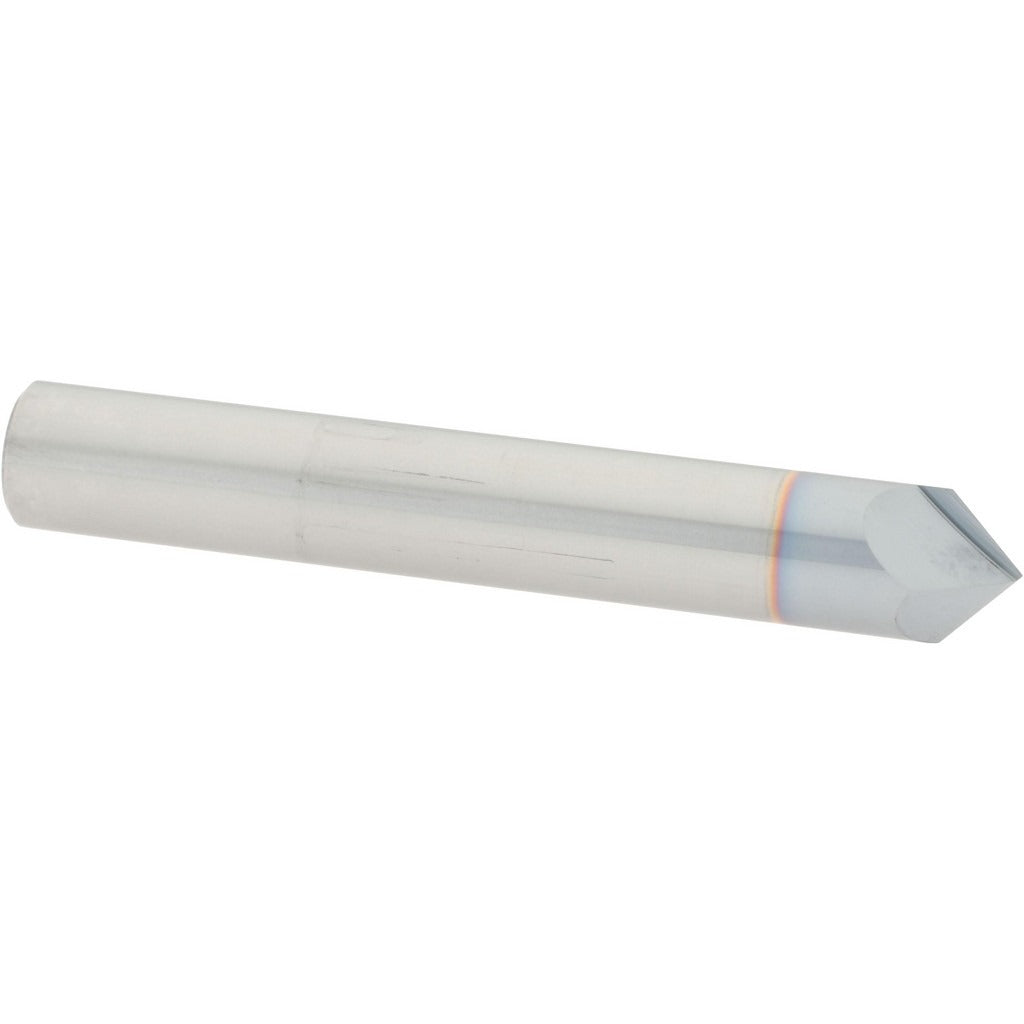

Accupro 2500070 Chamfer Mill 3/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500070 is a solid carbide chamfer mill designed for precision chamfering operations on metal workpieces. With a 3/8 inch cutter head diameter and a 90-degree included angle, this single-end tool cuts clean, consistent bevels in a single pass. The 2-flute geometry supports efficient chip evacuation, and the TiCN coating increases surface hardness and wear resistance compared to uncoated carbide. Overall length is 2.5 inches with a 3/8 inch shank diameter. Machinists and CNC operators working in job shops, production environments, or maintenance applications will find this tool ready for standard chamfering tasks on ferrous and non-ferrous materials.

This chamfer mill is suited for chamfering edges, deburring holes, and creating angled seats on machined parts. The right-hand cutting direction makes it compatible with standard spindle rotation on vertical machining centers and manual mills. The 90-degree included angle is one of the most common configurations for general-purpose chamfering work across a wide range of part geometries and materials.

Key Features

• Solid carbide construction for rigidity and dimensional stability under cutting loads
• TiCN coating improves wear resistance and extends tool life compared to uncoated tooling
• 90-degree included angle for standard chamfer and deburring applications
• 2-flute design promotes chip clearance during cutting
• Right-hand cut compatible with standard CNC and manual mill spindle rotation
• 3/8 inch shank fits common collet and end mill holder sizes

Compatibility

Designed for use in standard 3/8 inch collets or end mill holders on vertical machining centers and manual milling machines. No specific OEM system compatibility was stated in the product data.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before inserting or removing the tool from the holder. Secure the shank firmly in a matched 3/8 inch collet or end mill holder to the toolholder manufacturer's specified clamping procedure. Verify spindle rotation direction is set to right-hand before beginning the cut.
