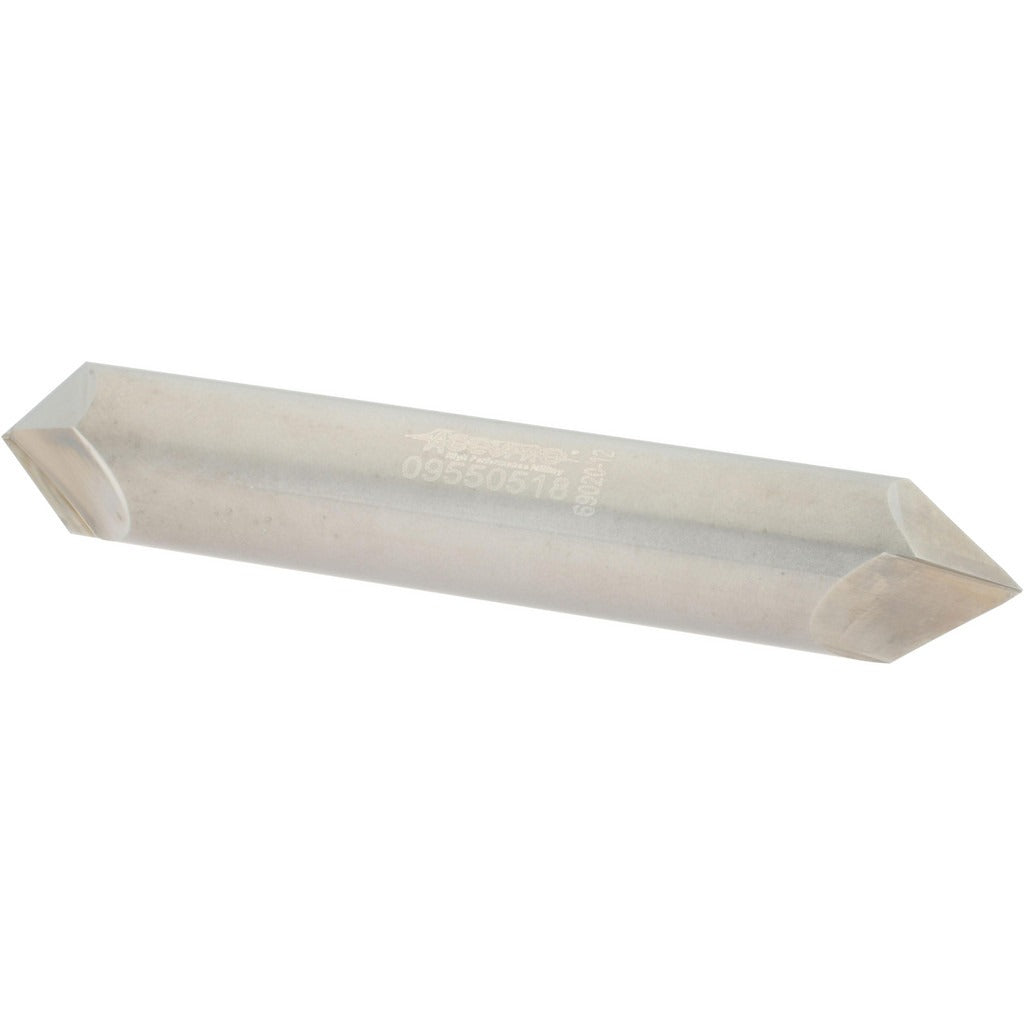

Accupro 2500029 Chamfer Mill 1/2 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500029 is a solid carbide chamfer mill designed for chamfering operations on metalworking and fabrication applications. The tool features a 1/2 inch cutter head diameter with a 90 degree included angle, producing clean, consistent chamfers in a single pass. Two right-hand cutting flutes provide efficient chip evacuation and smooth cutting action. The bright uncoated finish suits general-purpose machining where coating compatibility or re-sharpening is a consideration. At 3 inches overall length with a 1/2 inch shank diameter, the tool fits standard collet chucks and end mill holders common in CNC and manual milling setups.

This chamfer mill is suited for machine shops, tool rooms, and production environments where edge preparation, countersinking, and deburring are routine operations. The double-end configuration maximizes tool life by providing two usable cutting ends. Machinists, CNC operators, and toolroom professionals working with ferrous and non-ferrous metals, plastics, and composites will find this tool appropriate for general chamfering tasks on vertical mills, machining centers, and knee mills.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting conditions
• 90 degree included angle for standard chamfer and countersink profiles
• Double-end design provides two cutting ends, extending tool life
• Right-hand cutting direction compatible with standard spindle rotation
• Bright uncoated finish allows resharpening and suits a wide range of workpiece materials
• 1/2 inch shank fits standard collet and end mill holder tooling

Compatibility

Designed as a direct-fit chamfer mill for use in any machine spindle or toolholder accepting a 1/2 inch straight shank, including ER collet chucks and end mill holders on CNC machining centers and manual vertical mills.

Installation Notes

Installation and tool changes should be performed with the machine spindle fully stopped and the control in an e-stop or tool-change state. Ensure the shank is clean and seated fully in the collet or holder before torquing to the holder manufacturer specification. Verify runout with a dial indicator before production use, as excessive runout will reduce tool life and chamfer quality. This tool should be installed and operated by qualified machinists familiar with cutting tool safety practices.
