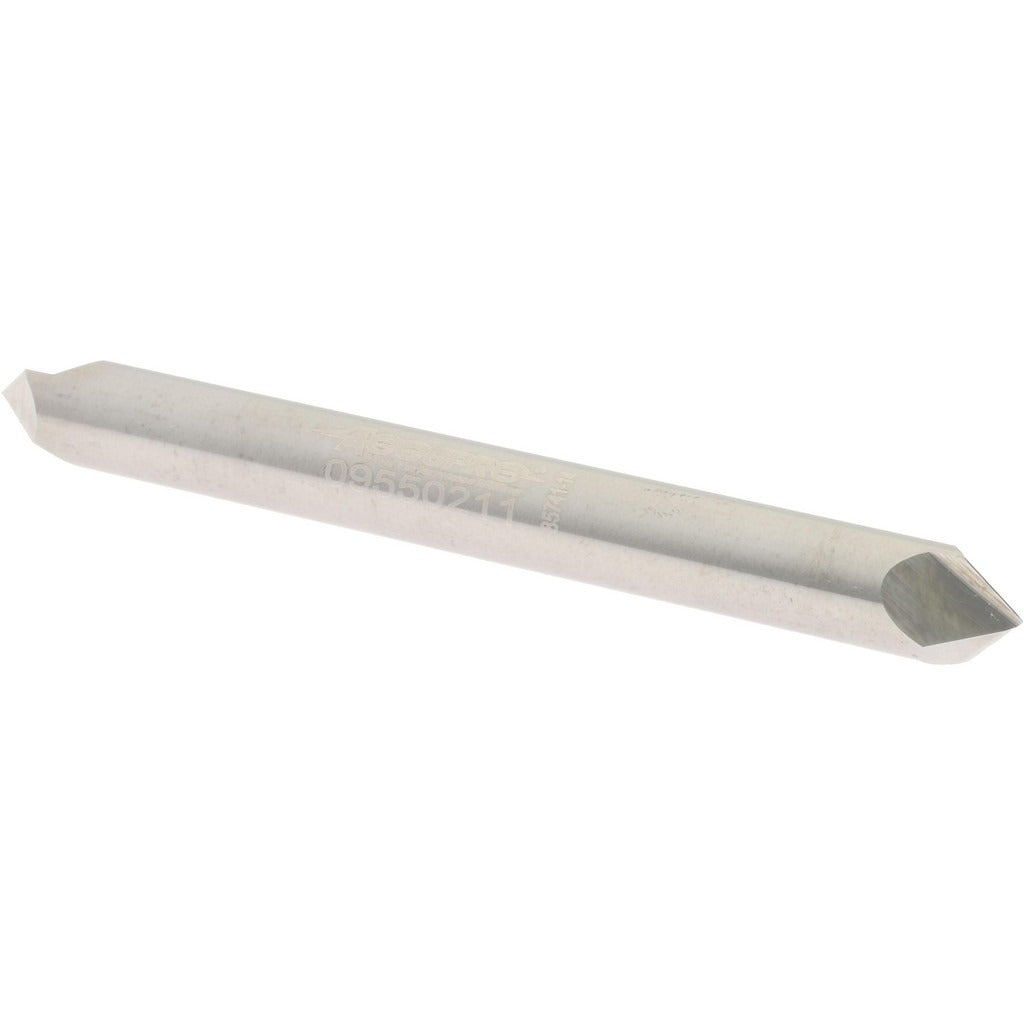

Accupro 2500007 Chamfer Mill 1/4 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500007 is a solid carbide chamfer mill designed for chamfering operations on metalworking and fabrication applications. The cutter head measures 1/4 inch in diameter with a matching 1/4 inch shank diameter and an overall length of 2.5 inches. It features a 90-degree included angle and a two-flute, right-hand cutting configuration. The bright/uncoated finish makes it suitable for use on a range of base materials where coating interference is a concern. Machinists and toolroom operators use this mill in CNC machining centers and manual milling setups to produce consistent chamfers and edge breaks.

This chamfer mill is suited for light-to-medium chamfering work in job shops, production machining environments, and precision fabrication settings. The double-end configuration and 90-degree included angle make it practical for deburring, countersinking, and edge preparation on ferrous and non-ferrous materials. The solid carbide construction provides rigidity and wear resistance in demanding cutting conditions where high-speed steel tooling would deflect or wear prematurely.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding cuts
• 90-degree included angle for standard chamfer and edge-break geometry
• Two-flute, right-hand cutting design for efficient chip evacuation
• Double-end configuration maximizes usable tool life
• Bright/uncoated finish suitable for general-purpose chamfering without coating concerns
• Compact 1/4 inch shank fits standard collets and tool holders

Compatibility

Designed as a general-purpose chamfer mill compatible with CNC machining centers and manual mills accepting a 1/4 inch round shank collet or end mill holder.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Secure the 1/4 inch shank in a properly sized collet or end mill holder and verify runout before engaging the workpiece. Power down the machine spindle completely before loading or unloading the tool. Do not exceed the rated cutting parameters for solid carbide tooling in the material being machined.
