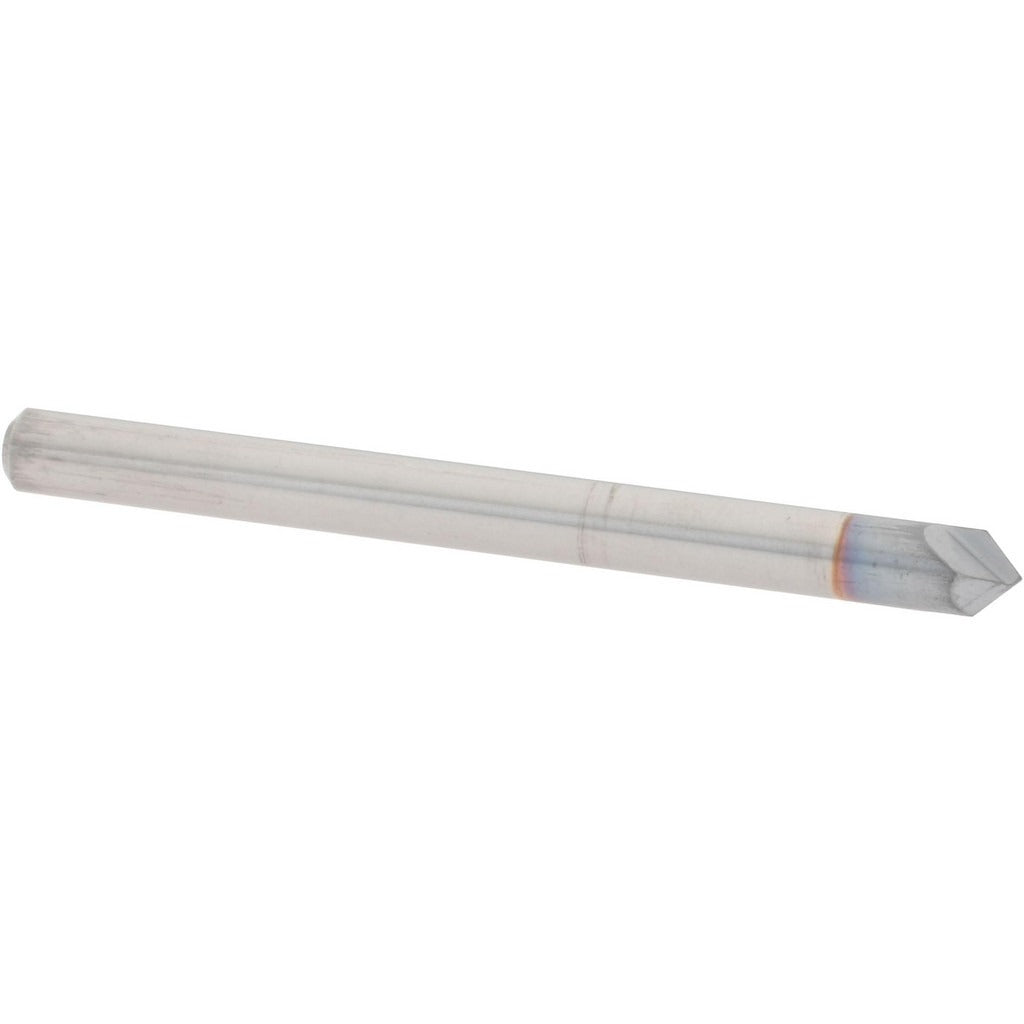

Accupro 2500006 Chamfer Mill 1/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500006 is a solid carbide chamfer mill designed for precision chamfering operations on a wide range of workpiece materials. With a 1/8 inch cutter head diameter and a 90-degree included angle, this mill produces clean, consistent chamfers in a single pass. The two-flute, right-hand cutting geometry promotes efficient chip evacuation, while the TiCN coating increases surface hardness and reduces friction at the cutting edge. Overall length is 1-1/2 inches with a 1/8 inch shank diameter. Machinists and tooling technicians rely on this style of end mill for deburring, edge breaking, and countersinking tasks on CNC machining centers and manual mills.

This chamfer mill is suited for use in metalworking, fabrication, and precision machining environments. Its compact 1/8 inch diameter makes it appropriate for smaller workpieces or confined feature locations where a larger tool cannot operate effectively. The single end configuration and right-hand cutting direction are standard for most vertical machining center setups. It is commonly specified for aluminum, steel, stainless, and other ferrous and non-ferrous metals where a controlled chamfer angle is required.

Key Features

• 90-degree included angle for standard chamfering and edge-breaking applications
• Solid carbide construction for rigidity and wear resistance compared to HSS alternatives
• TiCN coating improves cutting edge hardness and extends tool life in abrasive materials
• Two-flute right-hand geometry promotes chip clearance in shallow chamfer cuts
• Matched 1/8 inch shank and cutter diameter for use in standard collet toolholders
• 1-1/2 inch overall length keeps the tool compact and minimizes runout

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 1/8 inch collet or end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the shank fully in a collet or end mill holder to the manufacturer-specified insertion depth before tightening. Verify spindle runout before beginning the cut, as excessive runout accelerates edge wear on small-diameter carbide tools. Always power down and lock out the spindle before changing or inspecting tooling.
