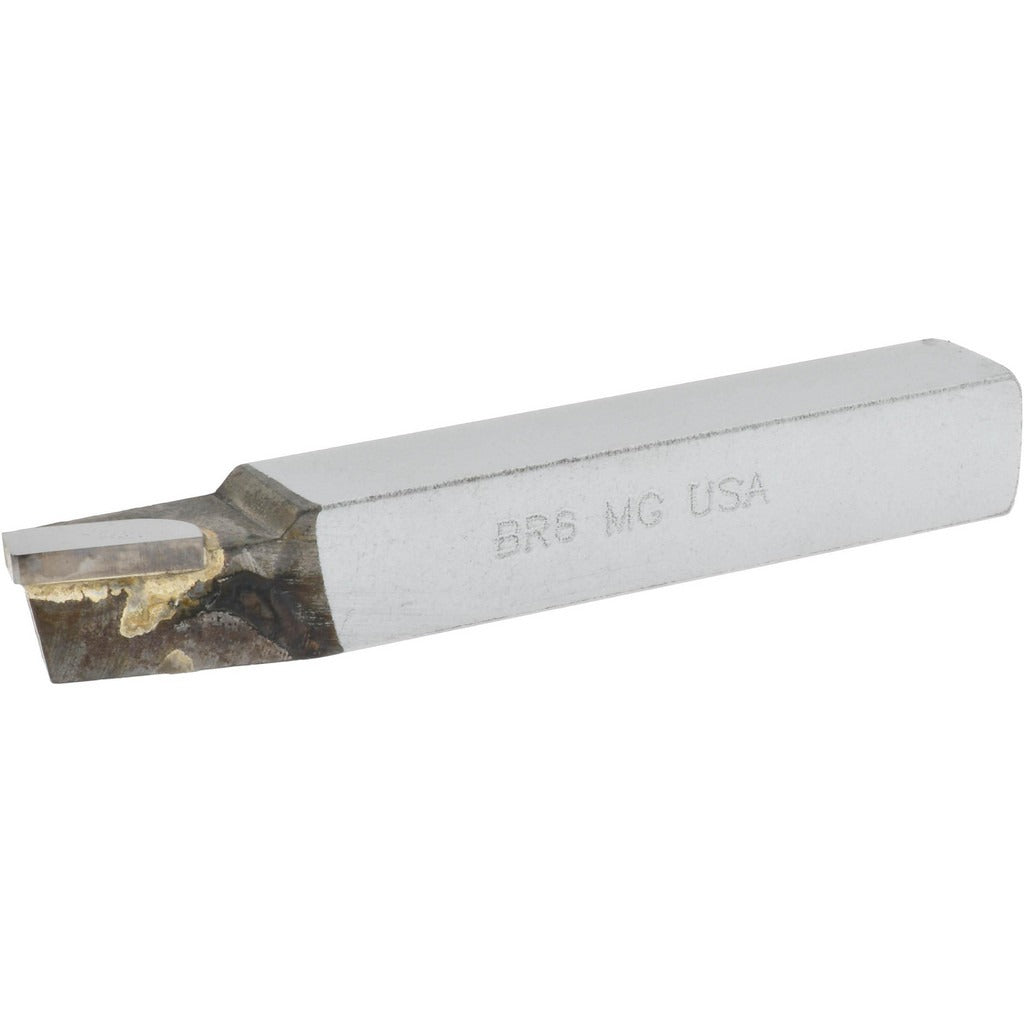

Accupro 220-MG Single Point Tool Bit Solid Carbide Rh Br

Product Description

The ACCUPRO 220-MG is a single point tool bit designed for lead angle turning operations on manual and CNC lathes. It features a micrograin solid carbide tip brazed to a steel shank, delivering consistent edge integrity and extended tool life in demanding cutting applications. The right-hand BR style geometry makes it well suited for boring, chamfering, interrupted cuts, and general turning. The shank measures 0.5 inches wide by 0.5 inches tall, with an overall length of 3.5 inches and a nose radius of 0.031 inches. Machinists and tool-room operators working in job shops, production environments, or maintenance machining will find this bit a reliable single-piece solution.

This tool bit is intended for use in metal-cutting lathe applications where a right-hand BR-style insert or brazed tip is specified. The BR style geometry supports lead angle turning, making it appropriate for operations that require gradual entry into the workpiece, shoulder work, or interrupted cut conditions. Suitable for steel, cast iron, and similar materials when paired with appropriate speeds and feeds. Its compact shank profile fits standard tool holders that accept 0.5 inch square shank tooling.

Key Features

• Micrograin solid carbide tip for consistent cutting edge hardness and wear resistance
• BR-style right-hand geometry optimized for lead angle turning
• Supports boring, chamfering, interrupted cuts, and turning in a single tool
• 0.5 inch by 0.5 inch shank fits standard square-shank tool holders
• 3.5 inch overall length for reach in typical lathe setups
• 0.031 inch nose radius for controlled surface finish in turning passes

Compatibility

Designed as an OEM-style replacement and aftermarket option for BR-8 industry standard single point tool bit applications in 0.5 inch square shank tool holders used on manual and CNC lathes.

Installation Notes

Installation is performed by qualified machinists or tool-room personnel. Secure the shank firmly in the tool post or holder, ensuring the tip height is set on center before engaging the workpiece. Power down and lock out the machine before changing or adjusting tooling. Inspect the brazed carbide tip for cracks or chips before each use; do not run a damaged tip under cut.
