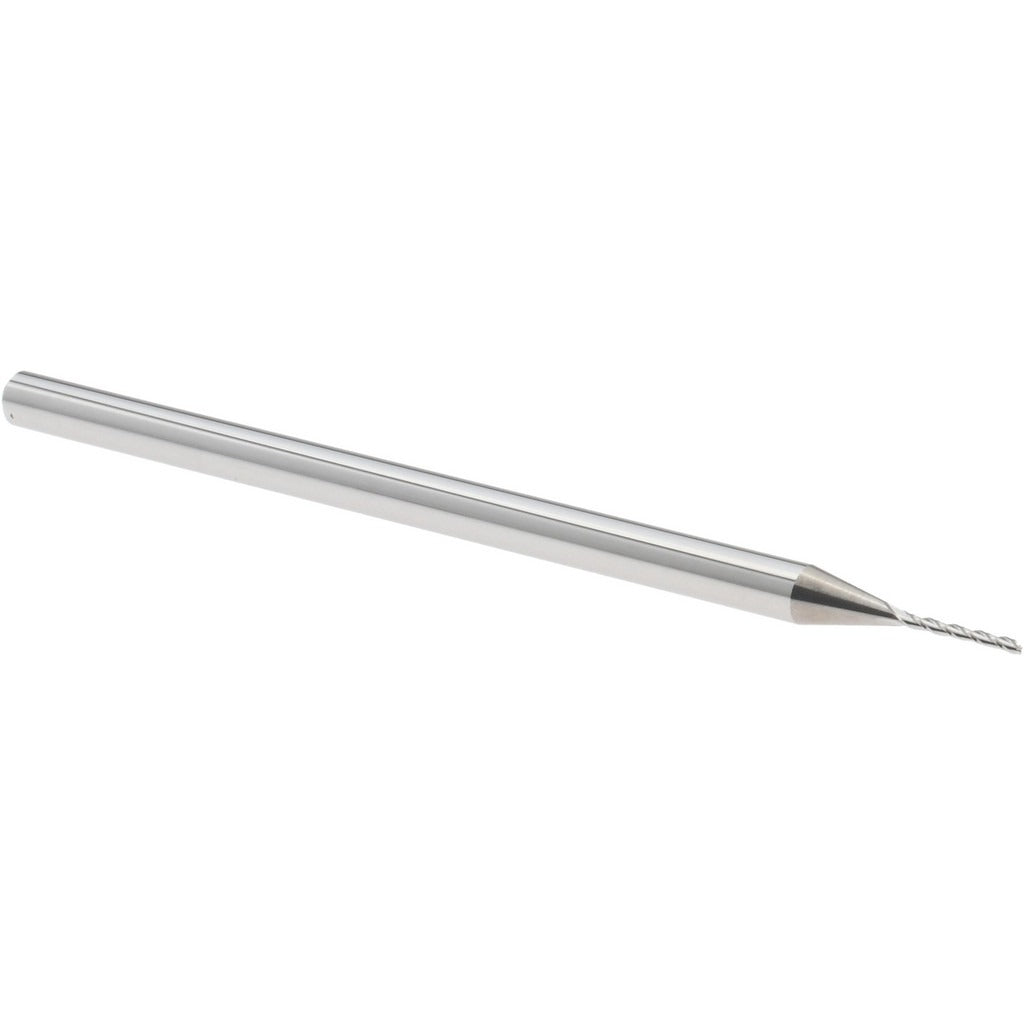

Accupro 14883486 Square End Mill 1/32 in 3 Flute Carbide

Product Description

The ACCUPRO 14883486 is a single-end square end mill designed for precision milling in metalworking and machining applications. Built from micrograin solid carbide, this tool delivers the rigidity and wear resistance required for tight-tolerance work in ferrous and non-ferrous materials. It features a 1/32 inch (0.0312 inch) cutting diameter, a 1/4 inch length of cut, and a 30-degree helix angle with three right-hand spiral flutes. The bright uncoated finish makes it well suited for aluminum, brass, and other non-ferrous materials where coating adhesion is a concern. Machinists and tool-and-die professionals use this end mill for slotting, profiling, and contouring operations requiring a very small-diameter tool.

This end mill is intended for use in CNC machining centers, manual mills, and high-speed spindle setups where a miniature cutting diameter is required. The 1/8 inch shank diameter fits standard collets and toolholders commonly found in vertical and horizontal milling machines. With an overall length of 2-1/2 inches, the tool provides adequate reach for most standard setups without sacrificing rigidity. It is suitable for finishing passes and light material removal in precision part production, mold work, and prototype machining environments.

Key Features

• Micrograin solid carbide construction for improved hardness and edge retention
• 1/32 inch cutting diameter with a mill diameter tolerance of +0.0000 / -0.0010 inches
• 3 right-hand spiral flutes with a 30-degree helix angle for efficient chip evacuation
• Centercutting geometry allows plunge entry into the workpiece
• Bright uncoated finish suited for non-ferrous and non-metallic materials
• Single-end design; 2-1/2 inch overall length with a 1/8 inch shank

Compatibility

Designed as an OEM-style replacement and standard fitment for CNC machining centers and manual milling machines accepting a 1/8 inch collet or toolholder. Part of the ACCUPRO ASQSC3-CC-30H series of solid carbide square end mills.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholding procedures. Ensure the spindle is fully powered down and locked before inserting or removing the end mill from the collet. Verify collet size matches the 1/8 inch shank diameter and that runout is within acceptable limits before beginning a cut. Follow machine manufacturer guidelines and applicable shop safety standards when operating miniature-diameter tooling at elevated spindle speeds.
