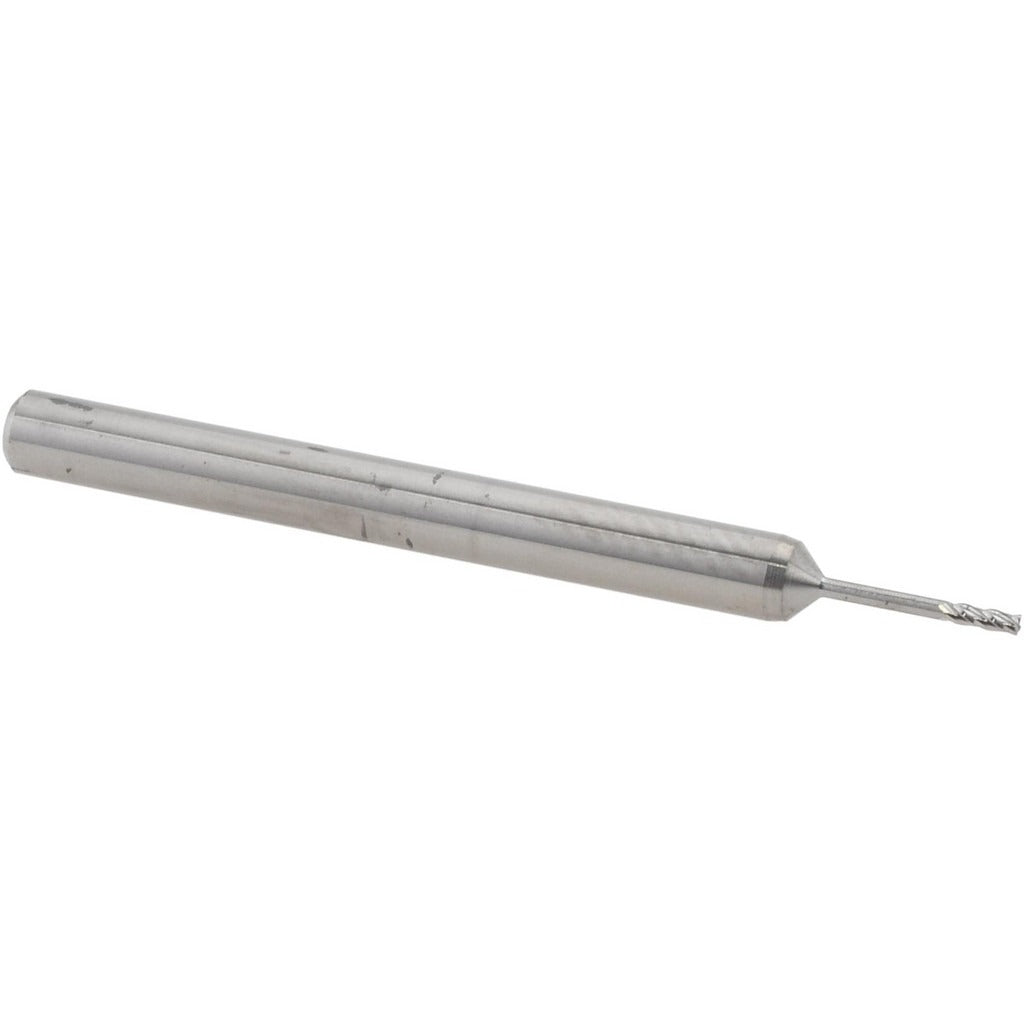

Accupro 14883469 Square End Mill 1/32 in 4 Flute Carbide

Product Description

The ACCUPRO 14883469 is a solid carbide, square-end, single-end mill designed for precision metal-removal operations in CNC machining and manual milling applications. With a 1/32 inch (0.0312 inch) mill diameter and a 0.093 inch length of cut, this tool is engineered for fine-feature work in tight geometries. The micrograin carbide construction delivers the hardness and edge retention needed for demanding cuts in ferrous and non-ferrous materials. A 30-degree right-hand helix promotes efficient chip evacuation while reducing cutting forces. This tool is installed by machinists and tool-and-die professionals working on production or prototype applications requiring small-diameter end milling.

This end mill is suited for slot milling, profiling, and pocketing operations where a small-diameter, high-precision tool is required. The extended reach design, with a 0.279 inch reach length and 1/8 inch shank diameter, allows access to recessed features without interference. The bright/uncoated finish makes it a practical choice for non-ferrous metals, plastics, and other materials where a coated surface is unnecessary or undesirable. It is compatible with standard collet and end mill holders accepting a 1/8 inch shank.

Key Features

• 1/32 inch (0.0312 inch) mill diameter for fine-feature and small-slot applications
• 4-flute, right-hand spiral geometry for improved surface finish and feed rates
• Micrograin solid carbide construction for edge retention and wear resistance
• 30-degree right-hand helix promotes chip evacuation and reduces heat buildup
• Center-cutting capable — supports plunge and ramp entry cuts
• Extended reach design with 0.279 inch reach length for recessed-feature access
• Bright/uncoated finish suitable for non-ferrous metals and plastics

Compatibility

Designed for use in standard CNC machining centers and manual mills with collet or end mill holders accepting a 1/8 inch shank diameter. Part of the ACCUPRO ASQSC4-CCER-30H series of solid carbide square end mills.

Installation Notes

Installation should be performed by a qualified machinist. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the 1/8 inch shank fully into the collet or end mill holder and torque the retention nut to the tool-holder specification. Verify runout with a dial indicator before beginning production cuts, as runout is critical at this diameter.
