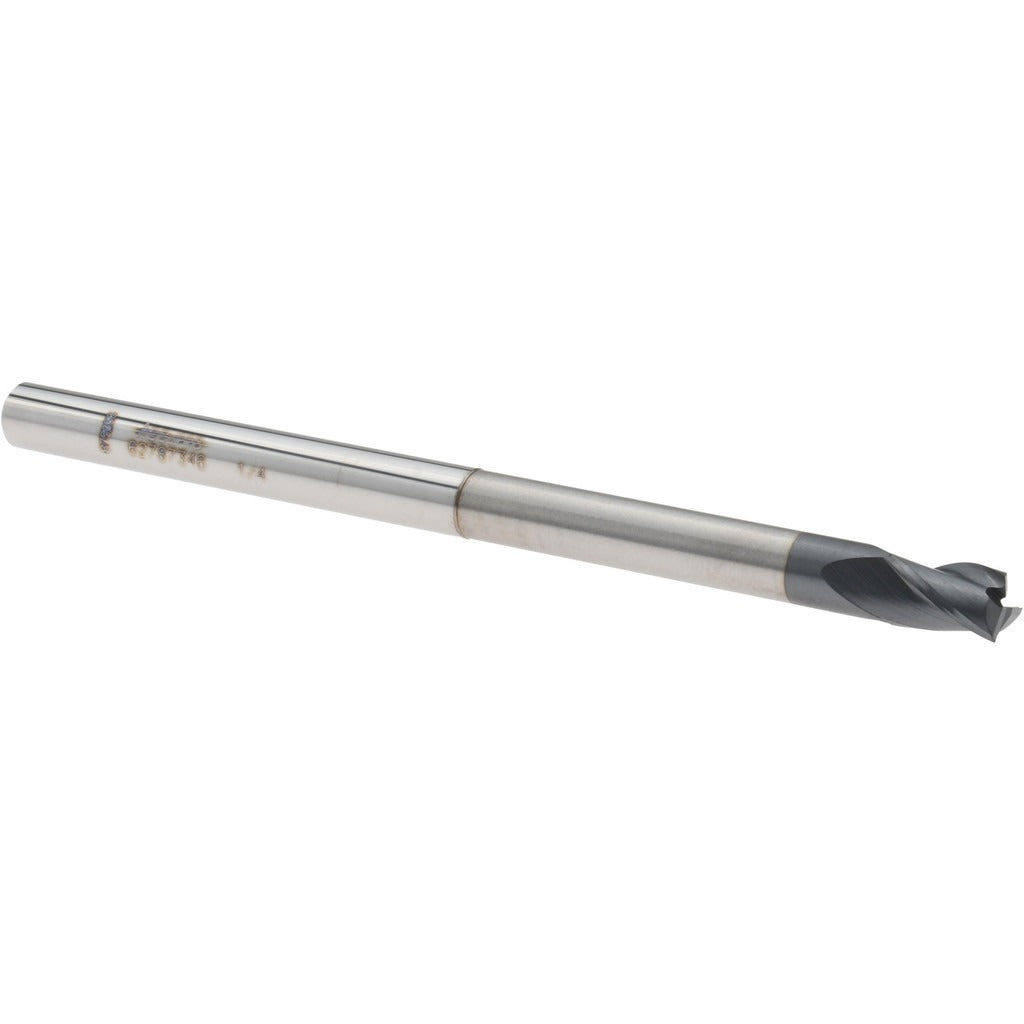

Accupro 14797331 Square End Mill 1/4 in 3 Flute Altin Carbide

Product Description

The ACCUPRO 14797331 is a single-end square end mill designed for precision milling in ferrous and hardened materials. Built from micrograin solid carbide with an AlTiN coating, it handles high-heat cutting environments where HSS tooling falls short. The 1/4 inch diameter, 3-flute geometry produces a balance of chip evacuation and cutting rigidity suited to finishing and semi-finishing passes. A 30-degree right-hand spiral helix promotes smooth chip flow, and the extended reach configuration with a 2.5 inch neck length makes it practical for deep-pocket and step milling operations where clearance is critical.

This end mill is suited for CNC machining centers and manual mills in job shop, production, and tool-and-die environments. The 3/8 inch length of cut accommodates slot, peripheral, and plunge operations within its rated range. Extended reach geometry allows access to recessed features without tool-length extension holders in many setups. Right-hand cutting direction is standard for conventional spindle rotation. Center-cutting capability supports direct plunge entry. It is installed and operated by machinists and CNC programmers in light to medium material removal applications.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance at elevated cutting speeds
• AlTiN coating reduces heat absorption and extends tool life in ferrous and stainless materials
• 3 right-hand spiral flutes at 30-degree helix for efficient chip evacuation
• Extended reach design with 2.5 inch neck length and 2.0 inch reach length for deep-pocket access
• Center-cutting geometry allows direct plunge entry without pre-drilled pilot holes
• Single-end configuration with consistent 1/4 inch shank diameter for standard collet holding

Compatibility

Designed for use in standard 1/4 inch collet chucks, ER collet systems, and precision end mill holders compatible with 1/4 inch shank tooling. Part of the ACCUPRO ASQSC3-AT-CCER series.

Installation Notes

Installation is performed by qualified machinists. Ensure the spindle is fully stopped and the machine is in a safe locked-out state before mounting or removing tooling. Clean the collet bore and shank contact surfaces before seating the tool to achieve proper runout tolerances. Do not exceed the tool manufacturer's rated depth of cut or feed-per-tooth recommendations for the workpiece material.
