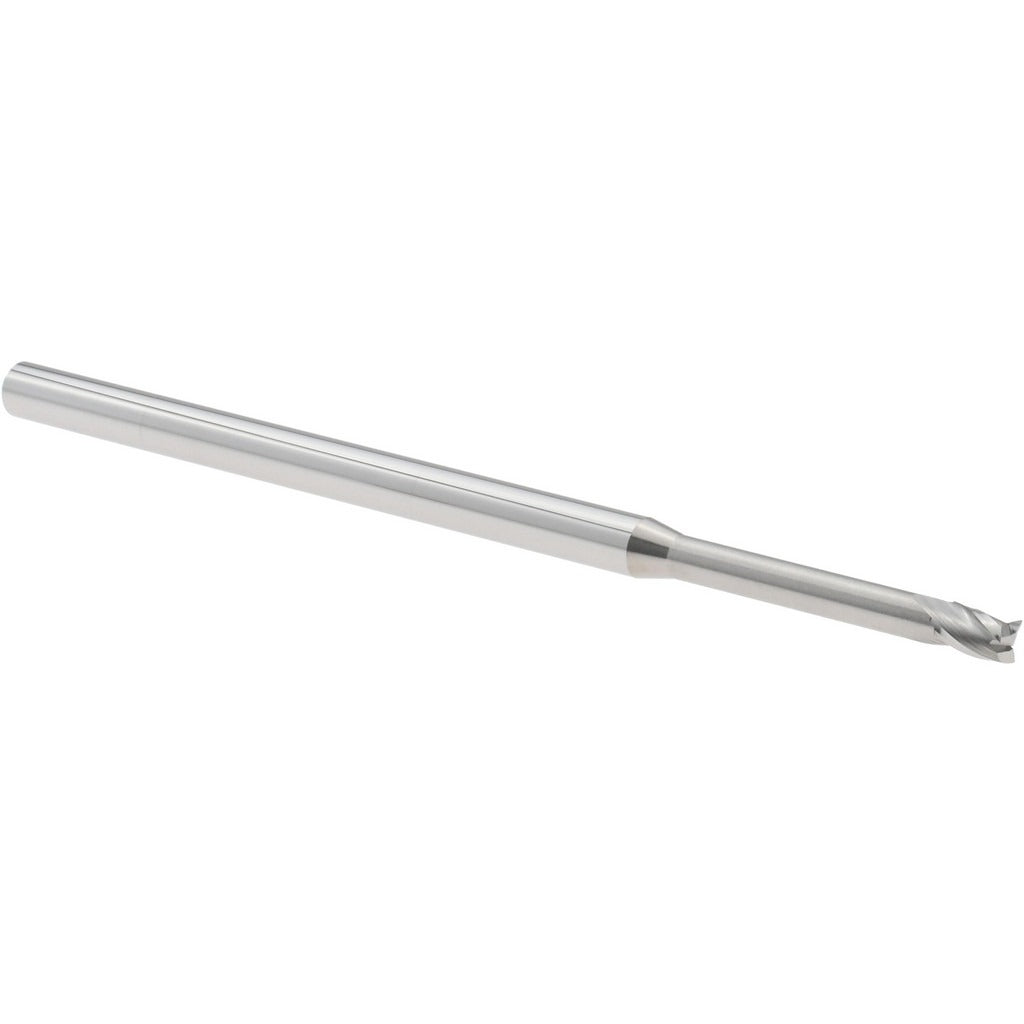

Accupro 14797285 Square End Mill 3/32 in 3 Flute Carbide

Product Description

The ACCUPRO 14797285 is a solid carbide, single-end square end mill designed for precision milling operations in metal, composite, and hard material applications. With a 3/32-inch (0.0938-inch) cutting diameter and three flutes, it delivers clean, efficient material removal at smaller diameters where rigidity and edge integrity are critical. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. The bright/uncoated finish is suitable for a wide range of general-purpose materials. This tool is sized for work requiring a tight diameter tolerance of +0.0000/-0.0010 inches and is used by machinists and tooling professionals in CNC milling environments.

This end mill is well-suited for slotting, profiling, and peripheral milling in light to medium-duty applications. The extended-reach geometry, with a neck length of 0.950 inches and a reach length of 0.750 inches, allows access to deeper features without requiring a longer overall tool. It installs in a standard 1/8-inch shank collet or end mill holder and is appropriate for both vertical machining centers and manual mills requiring a small-diameter, high-precision cutter.

Key Features

• Solid carbide micrograin construction for rigidity and edge retention at small diameters
• 3 flutes with right-hand spiral flute direction for efficient chip evacuation
• 30-degree helix angle reduces cutting forces and improves surface finish
• Extended-reach design with 0.950-inch neck length for deeper feature access
• Center-cutting capable, allowing plunge entry into workpiece
• Bright/uncoated finish suitable for general-purpose milling across a broad material range

Compatibility

Designed for use in standard 1/8-inch shank collets and end mill holders on CNC and manual milling machines. Part of the ACCUPRO ASQSC3-CCER series of solid carbide square end mills.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling procedures. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Verify collet or chuck torque specifications per the tool holder manufacturer guidelines. Confirm correct spindle direction is set to right-hand before initiating a cut.
