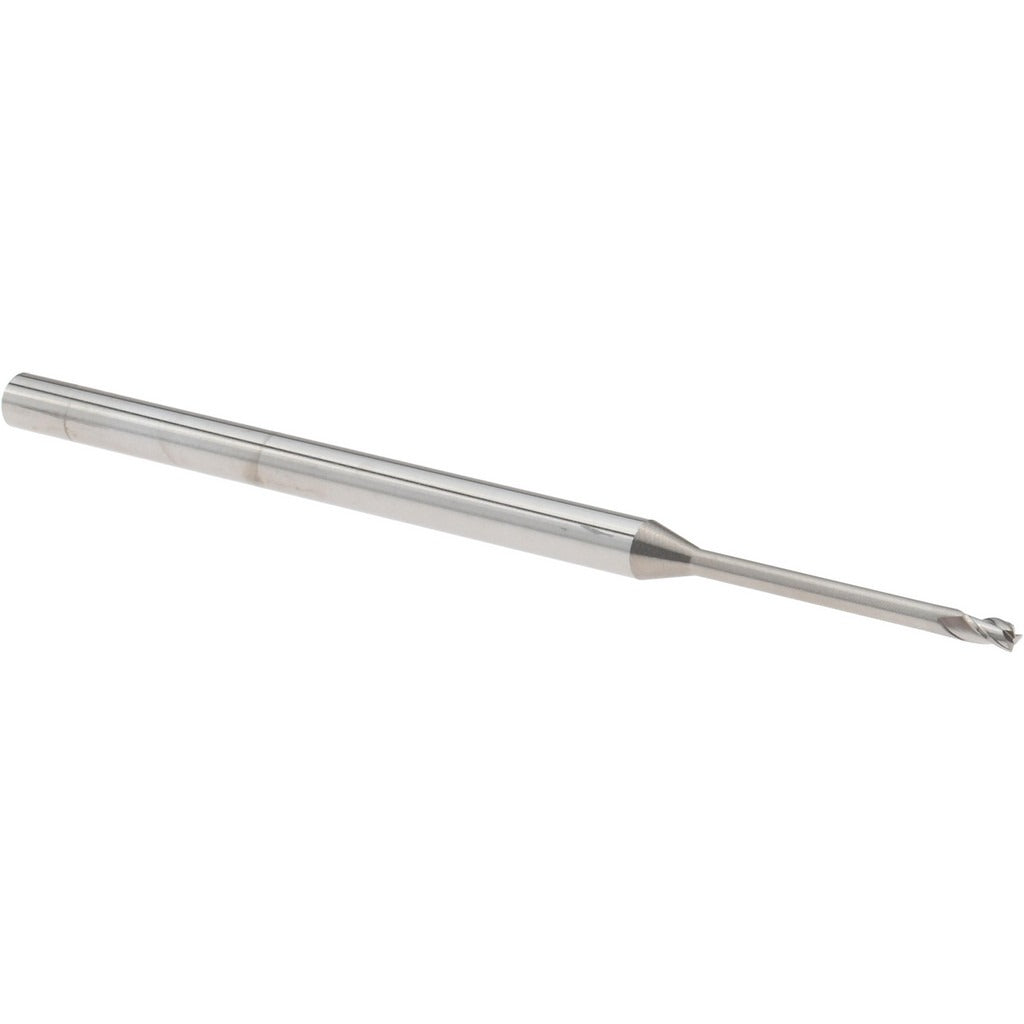

Accupro 14797225 Square End Mill 0.06 in 3 Flute Carbide

Product Description

The ACCUPRO 14797225 is a solid carbide, single-end square end mill designed for precision milling in metalworking and machining applications. The tool measures 0.06 inches in diameter with a 3/32-inch (0.09 inches) length of cut and a 2.5-inch overall length. It features three right-hand spiral flutes at a 30-degree helix angle and is center-cutting, allowing plunge entry. The shank diameter is 0.125 inches. The bright/uncoated finish suits applications where coating compatibility with workpiece material is a concern. Manufactured from micrograin solid carbide, this end mill delivers the rigidity and edge retention required for close-tolerance work.

This end mill is suited for light finishing passes, slotting, and profiling in ferrous and non-ferrous materials where a small-diameter tool is required. The extended reach design and 0.72-inch reach length make it useful in applications requiring access to recessed features or stepped pockets. The right-hand cutting direction is standard for conventional CNC milling setups. Coolant-through is not supported on this tool.

Key Features

• 0.06-inch mill diameter with micrograin solid carbide construction for edge stability
• 3-flute, right-hand spiral design with 30-degree helix angle for efficient chip evacuation
• Center-cutting geometry allows direct plunge entry
• Extended reach with 0.72-inch reach length and 0.90-inch neck length
• Bright/uncoated finish suitable for a broad range of workpiece materials
• Mill diameter tolerance of +0.0000/-0.0010 inches for consistent, repeatable fit

Compatibility

Designed as a standard shank end mill fitting tool holders and collets accepting a 0.125-inch (1/8-inch) shank diameter; part of the ACCUPRO ASQSC3-CCER series.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and locked out per shop lockout/tagout procedures. Seat the shank fully into the collet or tool holder and torque the retention mechanism to the tool holder specification before starting the spindle. Inspect the cutting edges for chips or wear prior to each use; carbide is brittle and should not be dropped or contacted with hard surfaces during handling. Consult machine and tool holder documentation for maximum recommended RPM and feed rates appropriate to this diameter.
