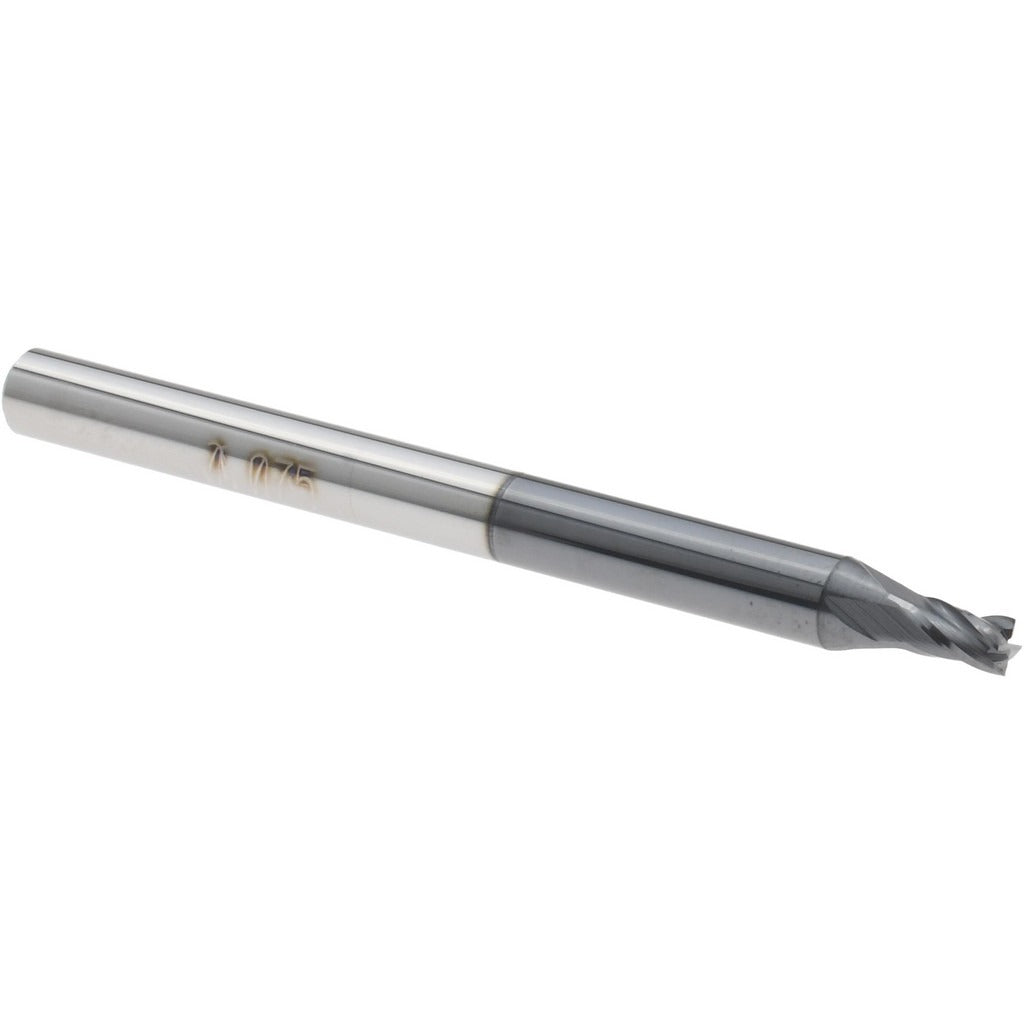

Accupro 14797062 Square End Mill 0.075 in 4 Flute Altin

Product Description

The ACCUPRO 14797062 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous materials. With a 0.075 inch cutting diameter and a 0.112 inch length of cut, this tool targets tight-tolerance work where rigidity and edge retention matter. The AlTiN coating provides thermal resistance and extended tool life at elevated cutting temperatures. The micrograin carbide substrate supports sharp edge geometry while resisting chipping under demanding feed rates. A 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces. This end mill is used by machinists and tool-and-die professionals in CNC machining environments requiring fine-detail work.

This end mill is suited for finish milling, slotting, and profiling operations in production and job-shop environments. The single-end, center-cutting design allows plunge entry and is appropriate for both full-slot and peripheral milling passes. The 0.125 inch shank diameter makes it compatible with standard collet systems and end mill holders commonly found on CNC machining centers and manual mills. It is appropriate for use in applications involving hardened steels, stainless alloys, and cast iron where AlTiN coating performance is most beneficial.

Key Features

• AlTiN coating for heat resistance and extended tool life in ferrous materials
• Micrograin solid carbide substrate for edge sharpness and fracture resistance
• 4-flute configuration balances chip load capacity with surface finish quality
• 30-degree right-hand helix promotes smooth chip evacuation
• Center-cutting design enables direct plunge entry
• Right-hand cutting direction compatible with standard CNC spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill for CNC machining centers and manual mills equipped with standard collet or end mill holder systems accepting a 0.125 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Verify runout with a dial indicator after clamping to confirm concentricity. Do not exceed the manufacturer-rated depth of cut for the 0.112 inch length of cut specification.
